MOTOROLA CM300D VHF DIGITAL MOBILE RADIO 136-174 MHZ 45W
MOTOROLA

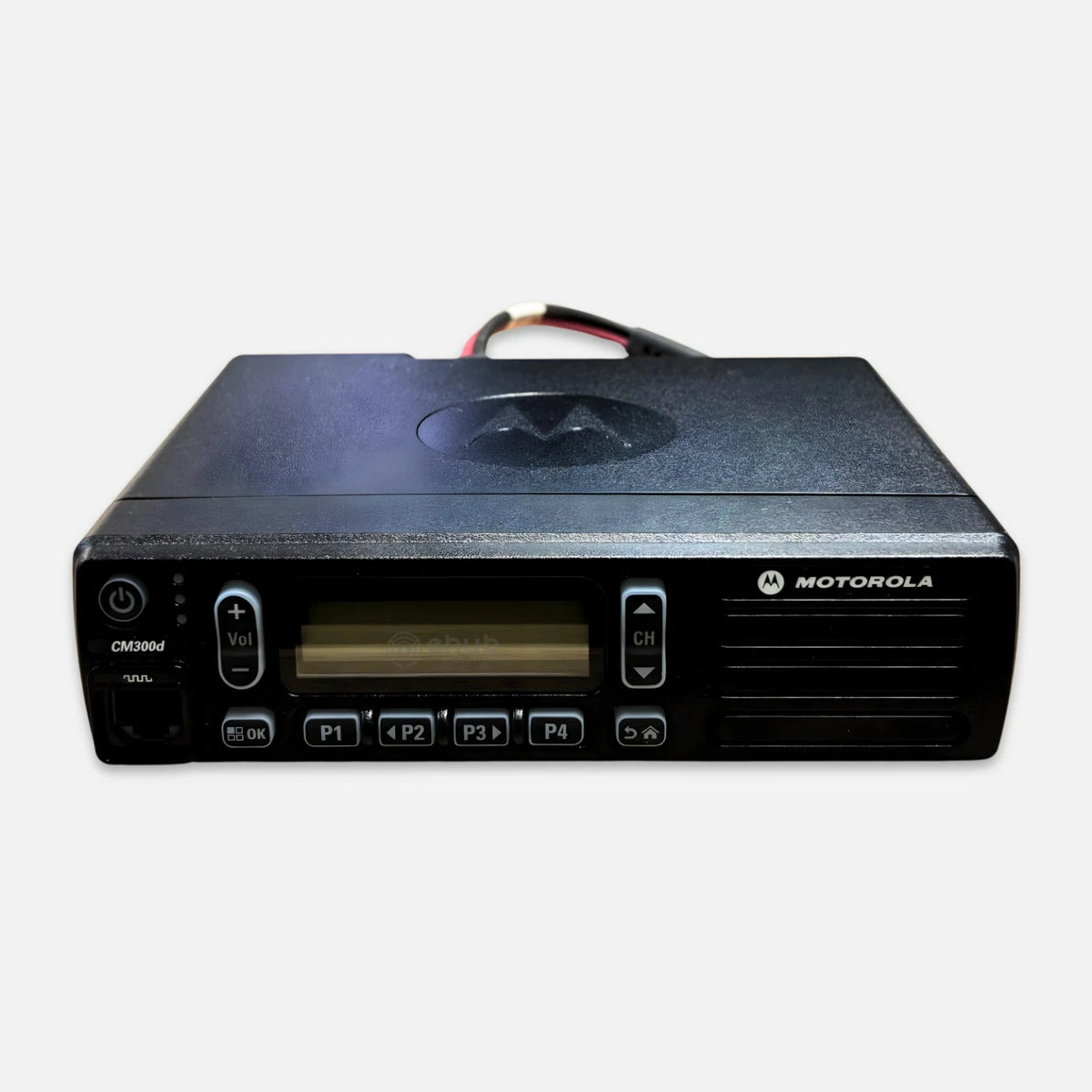

Motorola CM300D VHF Digital Mobile Radio 136-174 MHz 45W
SKU
Professional-grade equipment, ready to ship.
$515.00$569.69Save 10%
30 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Frequency Range
- Frequency Range: 136–174 MHz
- Channel Spacing
- Channel Spacing: 12.5 / 25 kHz
- Frequency Stability
- Frequency Stability: ±0.5 ppm
- RF Output Power
- RF Output Power: 1–25W (low) / 25–45W (high)
- Adjacent Channel Power
- Adjacent Channel Power: 60 dB (12.5 kHz) / 70 dB (25 kHz)
- Conducted/Radiated Emissions
- Conducted/Radiated Emissions: -36 dBm (<1 GHz), -30 dBm (>1 GHz)
- Analog Sensitivity (12 dB SINAD)
- Analog Sensitivity (12 dB SINAD): 0.3 μV (typical)
- Digital Sensitivity (5% BER)
- Digital Sensitivity (5% BER): 0.25 μV (typical), 0.19 μV (typical)
- Intermodulation (TIA603D)
- Intermodulation (TIA603D): 75 dB
- Adjacent Channel Selectivity
- Adjacent Channel Selectivity: 50 dB (12.5 kHz) / 75 dB (25 kHz)
Hardware
- Storage Temperature
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Physical
- Dimensions (H x W x L)
- Dimensions (H x W x L): 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
- Weight
- Weight: 2.9 lb (1.3 kg)
- Operating Temperature
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
General
- Power Supply
- Power Supply: 13.6 VDC (nominal vehicle supply)
- 12.5 kHz
- 12.5 kHz: 11K0F3E
- 25 kHz
- 25 kHz: 16K0F3E
- 12.5 kHz Data
- 12.5 kHz Data: 7K60F1D
- 12.5 kHz Voice
- 12.5 kHz Voice: 7K60F1E
- 12.5 kHz Voice & Data
- 12.5 kHz Voice & Data: 7K60F1W
- Audio Distortion
- Audio Distortion: 3%
- Spurious Rejection (TIA603D)
- Spurious Rejection (TIA603D): 75 dB
- Hum and Noise
- Hum and Noise: -40 dB (12.5 kHz) / -45 dB (25 kHz)
- Digital Vocoder
- Digital Vocoder: AMBE+2TM
- Dust and Water Intrusion
- Dust and Water Intrusion: IP54
- ESD
- ESD: IEC 61000-4-2 Level 3
