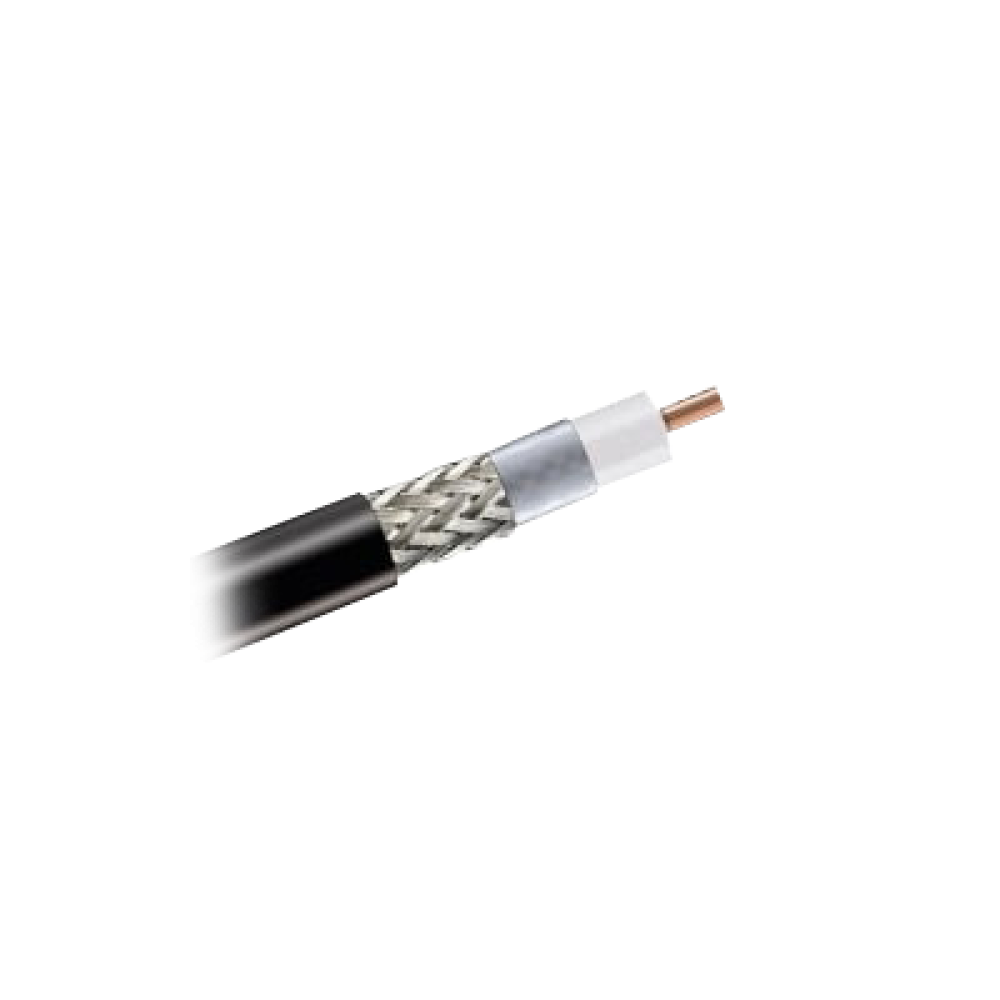

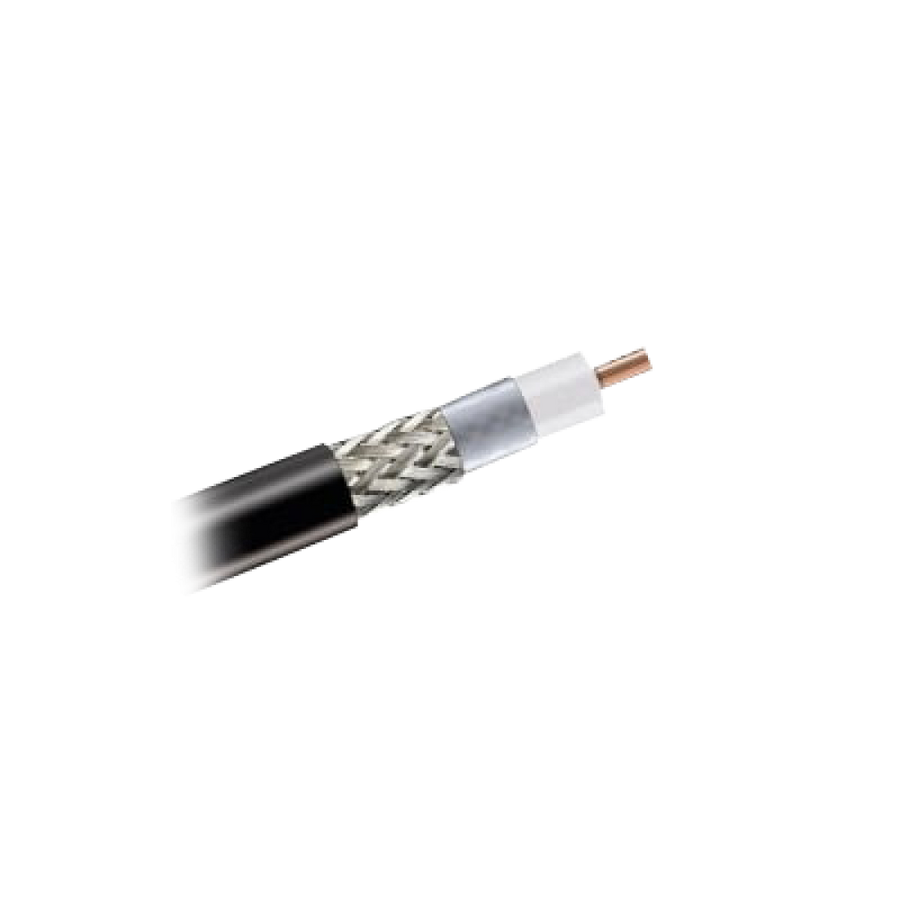

CommScope CNT400FT 50 Ohm Braided Coaxial RF Cable 16.2 GHz

CommScope's CNT-400 is a high-performance coaxial cable designed for applications requiring a perfect balance between flexibility, low loss, and high durability. Ideal for a wide range of RF communication uses, the CNT-400 offers advanced technical characteristics that make it the best choice on the market. With quality certifications and compliance with international standards, this cable is synonymous with reliability and efficiency.

Sold by the meter

Specifications

Product Classification

• Product Type: Braided coaxial cable
• Brand: CNT®
• Series: CNT-400

General Specifications

• Braid Coverage: 90%
• Jacket Color: Black

Dimensions

• Dielectric Diameter: 7.24 mm | 0.285 in
• Jacket Diameter: 10.29 mm | 0.405 in
• Diameter Over Tape: 7.391 mm | 0.291 in
• Inner Conductor Diameter: 2.74 mm | 0.108 in
• Outer Conductor Diameter: 8.08 mm | 0.318 in
• Nominal Size: 0.400 in

Electrical Specifications

• Impedance: 50 ohm
• Capacitance: 78 pF/m | 23.774 pF/ft
• DC Resistance Inner Conductor: 4.69 ohms/km | 1.43 ohms/kft
• DC Resistance Outer Conductor: 5.61 ohms/km | 1.71 ohms/kft
• DC Test Voltage: 2500 V
• Jacket Test Voltage (rms): 4000 V
• Maximum Frequency: 16.2 GHz
• Operating Frequency Band: 30 – 6000 MHz
• Peak Power: 16 kW
• Shielding Effectiveness: 90 dB
• Velocity: 85%

Materials

• Braid Material: Tinned copper
• Dielectric Material: Foamed polyethylene
• Jacket Material: Halogen-free polyethylene
• Inner Conductor Material: Aluminum-clad copper wire
• Shield Tape Material: Aluminum

Mechanical Specifications

• Minimum Bend Radius: 25.4 mm | 1 in
• Tensile Strength: 73 kg | 160.937 lb
• Bending Moment: 0.7 N-m | 6.196 in-lb
• Plate Crush Resistance: 0.7 kg/mm | 39.198 lb/in

Environmental Specifications

• Installation Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
• Storage Temperature: -70 °C to +85 °C (-94 °F to +185 °F)

Packaging and Weights

• Cable Weight: 0.1 kg/m | 0.067 lb/ft

Regulatory Compliance / Certifications

• CHINA-ROHS: Below the maximum concentration value
• ISO 9001:2015: Designed, manufactured and/or distributed under this quality management system
• REACH-SVHC: Compliant with the SVHC review found at https://www.commscope.com/ProductCompliance
• ROHS: Compliant
• UK-ROHS: Compliant

Key Features

• 90% Shielding for Superior Interference Reduction
• Copper-Clad Aluminum Conductor for Optimal Performance
• 50 Ohms Impedance Ensures Stable Signal Transmission
• RoHS Compliant Meets Environmental Standards
• Durable Construction for Professional Installations
• Compatible With Standard Telecommunications Equipment
