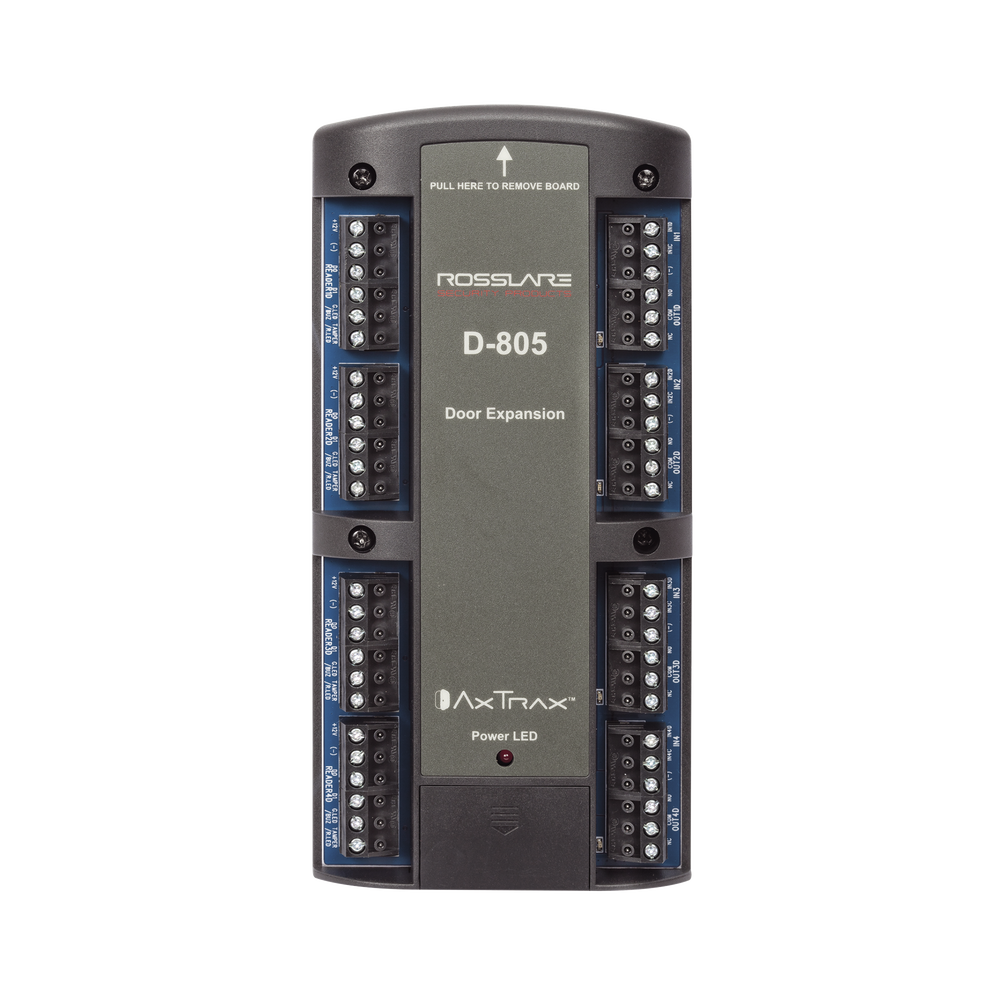

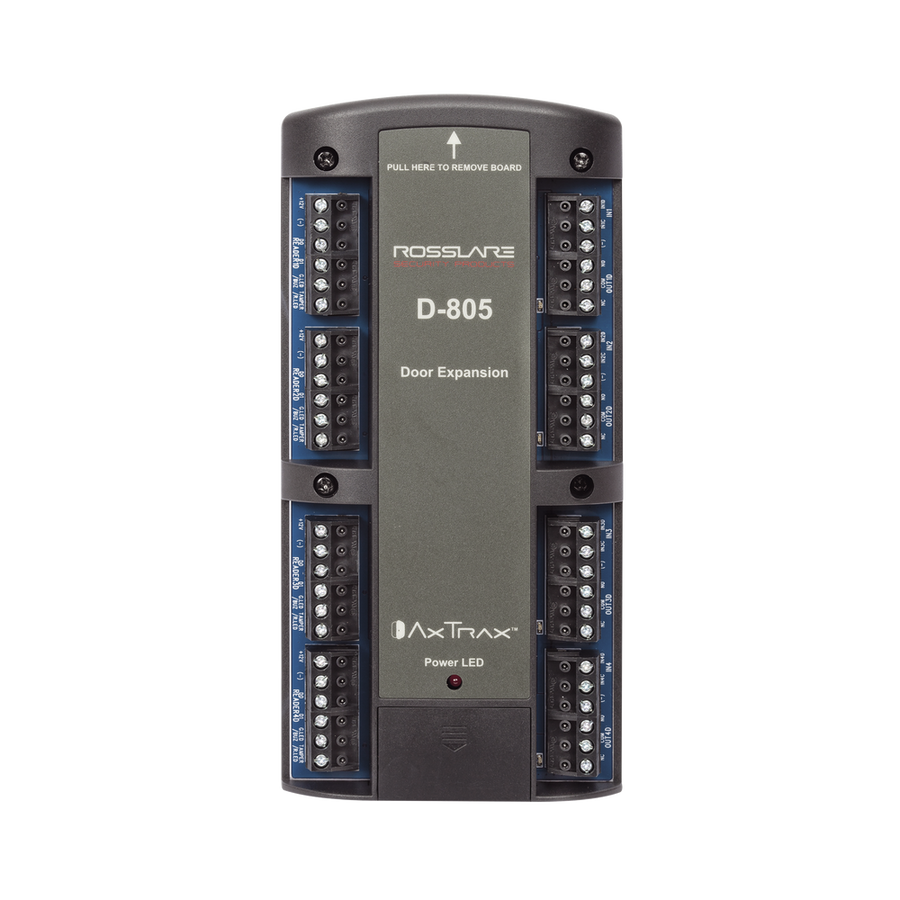

Rosslare D-805(US) Expansion Board, 4 Readers to AC825

It is one of the 4 expandable boards of the new series controlling the AC series.

Ideal for residential and commercial solutions. The expandable board increases the flexibility of the access control system, giving it an increase of 4 lectors, 4 relate/ports, and 8 inputs supervised by the panel.

Main Features
-Compatible with the AC825IPL panel
-One only expandable board can be connected to the board directly, and
holds up to 16 expandable boards by the OSDP port
-Adds 4 lectors
-4 Relate outputs and 8 outputs supervised by the panel
-Transmision formats of dara Wiegand, Clock, and Data
-LED source and relay status indicator
-Improved modular installation

NOTE.- It is possible to connect one only board directly to the panel,
if it is desired to add one expandable board is necessary to add in the
cabinet ME-1505 for each one of the pairs in expandable boards.

Key Features

• Adds 4 Additional Readers to AC825 Access Control System
• 4 Relay Outputs for Door Control and 8 Supervised Inputs
• Direct Connection to AC825IPL Main Control Panel
• Supports up to 16 Expansion Boards via OSDP Protocol
• Wiegand, Clock and Data Reader Format Compatibility
• Modular Design for Quick and Easy Installation
