D-Link · Routers and Switches

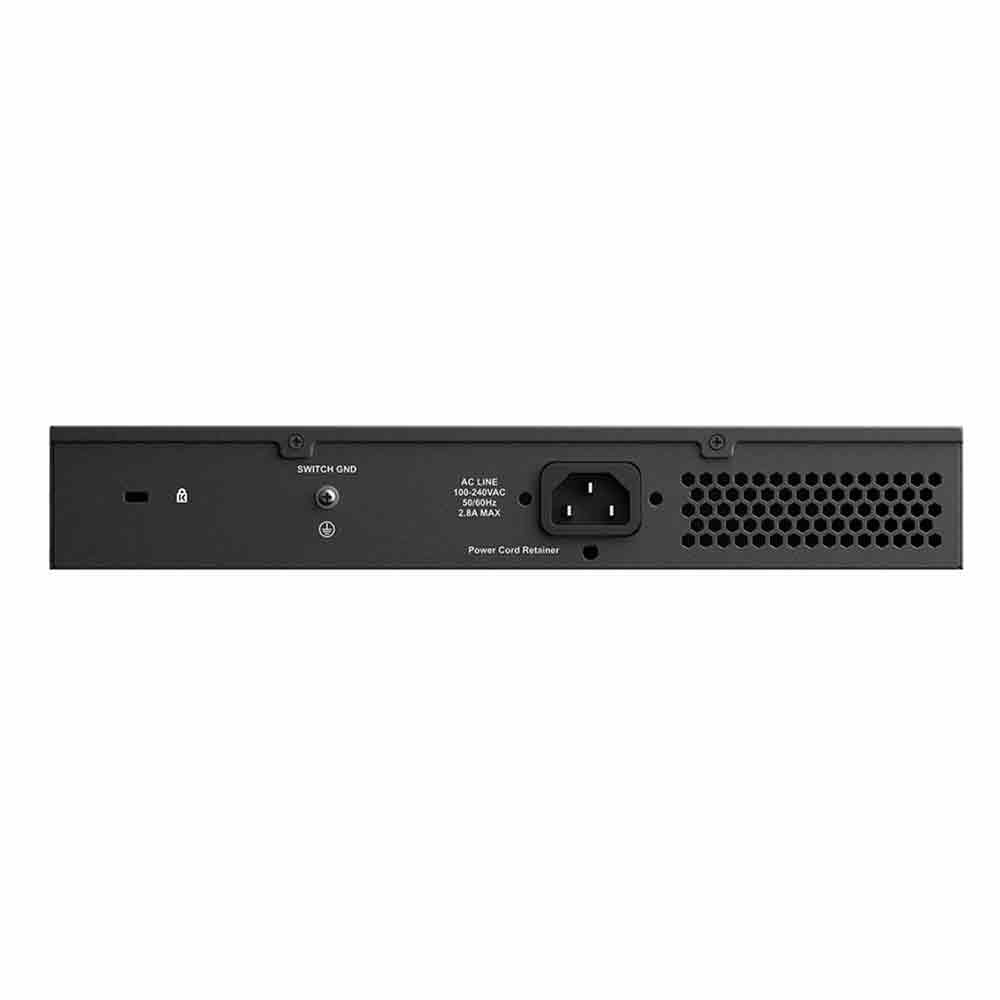

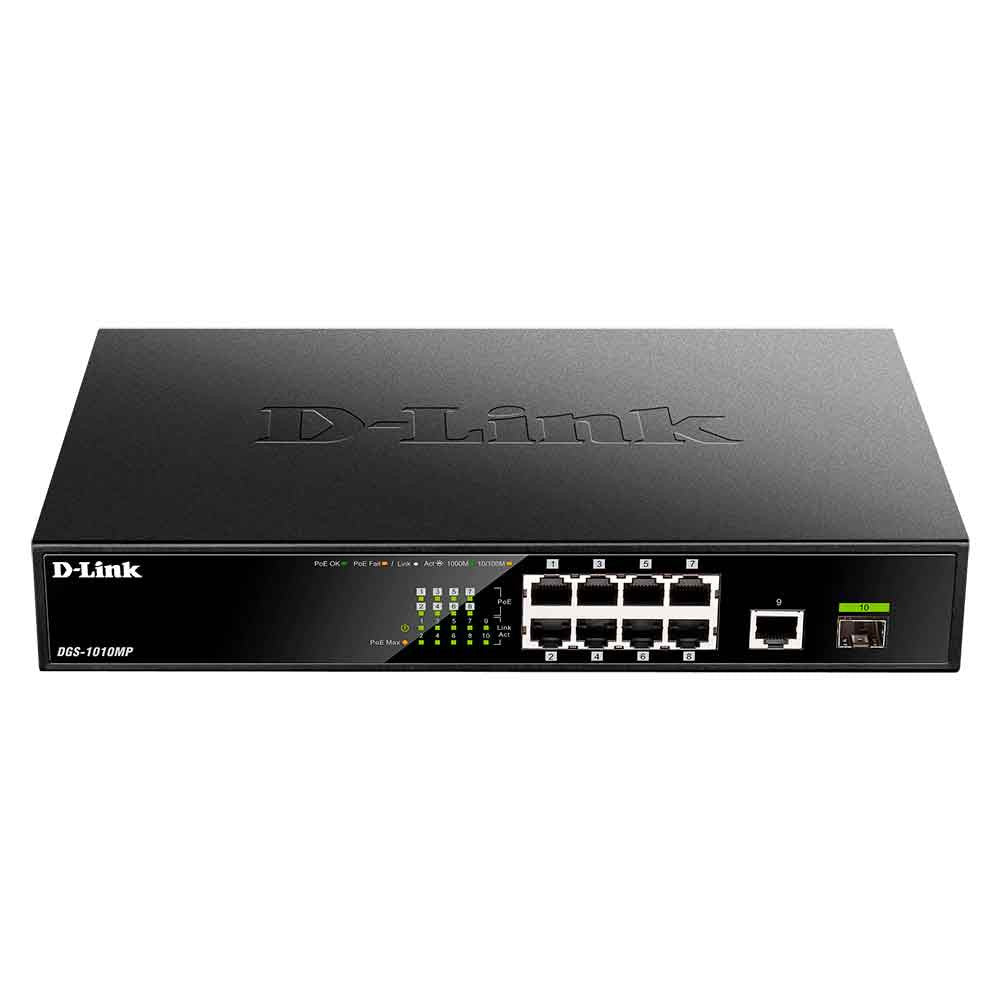

D-Link DGS-1010MP 10-Port Gigabit Switch, 8x PoE+, 125 W Budget, SFP Uplink

Part number / SKU
DGS-1010MP
  • 8x GbE PoE+, 1x GbE uplink
  • AC, 100 to 240 V
  • Desktop or 1U rackmount

$119.95

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The D-Link DGS-1010MP is an unmanaged 10-port Gigabit switch with eight IEEE 802.3at PoE+ ports, one Gigabit Ethernet uplink port and one SFP uplink port. It suits small office and enterprise networks that power wireless access points, IP cameras and VoIP phones and need a copper or fiber uplink.

Each PoE port delivers up to 30 W within a 125 W total budget. D-Link rates the switch at 20 Gbps switching capacity with store and forward switching, a 4K MAC address table and a 1.5 Mb packet buffer. The SFP uplink runs at 100 or 1000 Mbps. The fanless metal housing is 280 x 180 x 44 mm (1U) for desktop or rack use, runs on 100 to 240 V AC and operates from 0 to 40 °C.

  • Best for: small office and enterprise networks powering PoE access points, IP cameras and VoIP phones with a fiber or copper uplink.
  • System fit: unmanaged plug and play Gigabit switch; IEEE 802.3at PoE+ devices and 100/1000 Mbps SFP modules.
  • Important to know: the 125 W budget is shared across the eight PoE ports; SFP modules are not included.

Why teams choose it

Built for reliable networks

  • Eight PoE+ ports

    up to 30 W per port under IEEE 802.3at with a 125 W budget.

  • Two uplinks

    one Gigabit RJ45 port and one 100/1000 Mbps SFP port for fiber.

  • Quiet operation

    fanless design for offices and other occupied spaces.

  • Desktop or rack

    1U metal housing at 280 mm wide for desk or rack installation.

Specifications

Technical specifications

Product identifiers
SKUDGS-1010MP
General
Brand D-Link
Model DGS-1010MP
Device Type Unmanaged PoE+ switch
Form Factor Desktop or 1U rackmount
Management Unmanaged, plug and play
Interfaces
Ethernet Ports 8x GbE PoE+, 1x GbE uplink
SFP Ports 1x 100/1000 Mbps SFP uplink
Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3az, 802.3x
Auto MDI/MDI-X Supported
Performance
Switching Capacity 20 Gbps
Forwarding Rate 1,488,000 pps per Gigabit port
Transmission Method Store and forward
MAC Address Table 4K entries
Packet Buffer 1.5 Mb
Power
PoE Standard IEEE 802.3at PoE+
PoE Per Port Up to 30 W
PoE Budget 125 W
Power Method AC, 100 to 240 V
AC Input 100 to 240 V AC, 50/60 Hz
Physical
Dimensions 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in)
Cooling Fanless
Housing Metal
Environmental
Operating Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operating Humidity 0 to 95% RH, non-condensing
Listings and Approvals
EMI CE, FCC, VCCI Class A
Safety cUL, CB, LVD
