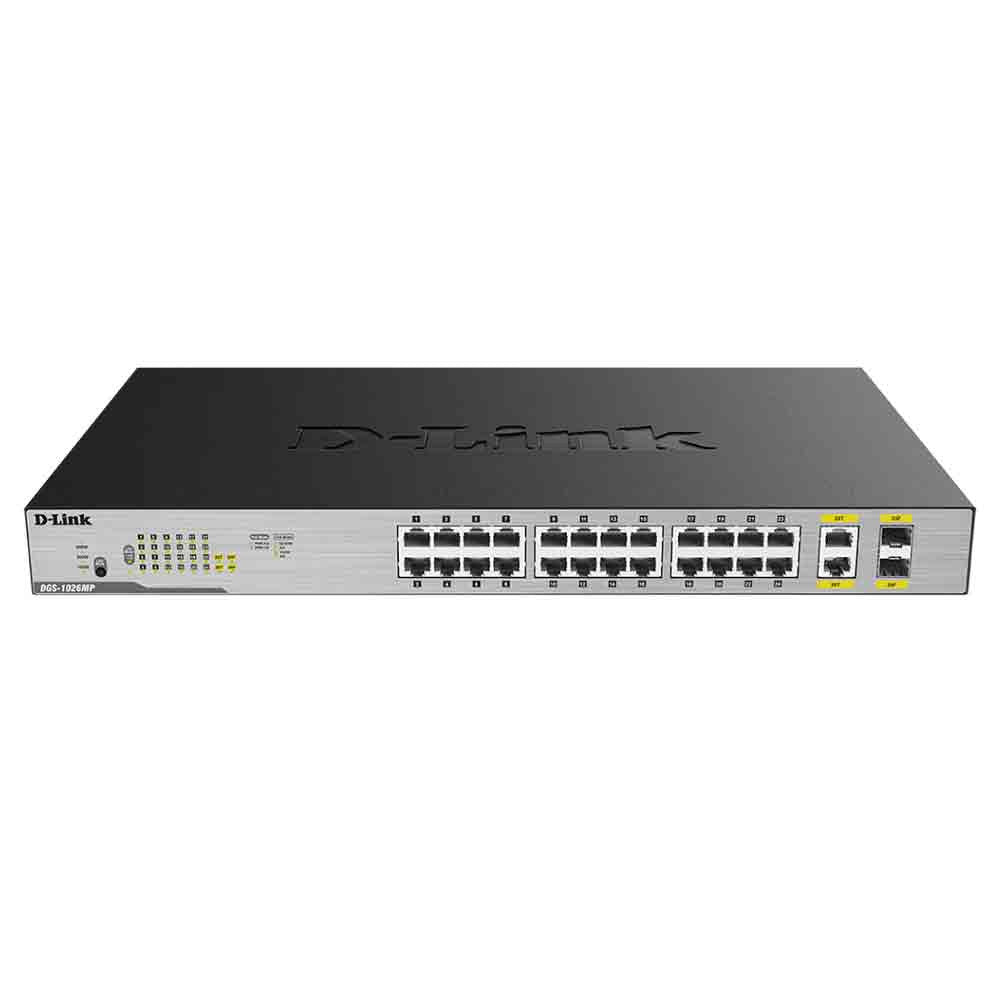

D-Link DGS-1026MP 26-Port Gigabit PoE+ Unmanaged Switch, 370 W, 2 Combo SFP

Part number / SKU
DGS-1026MP
  • 24x GbE PoE+, 2x combo
  • AC, 100 to 240 V
  • 19 in rackmount or desktop

$256.85

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The D-Link DGS-1026MP is an unmanaged rackmount switch with 24 Gigabit PoE+ ports and two Gigabit combo ports that work as RJ45 copper or SFP fiber uplinks. It is built for PoE heavy deployments such as IP cameras, wireless access points and VoIP phones, and it is plug and play with no configuration needed.

Each PoE port delivers up to 30 W under IEEE 802.3af/at, within a 370 W total budget, and PoE usage LEDs show real time PoE power consumption. D-Link rates the switch at 52 Gbps switching capacity and 38.69 Mpps forwarding at 64-byte packets, with an 8K MAC address table, 512 KB packet buffer and 9,720-byte jumbo frames. It runs on 100 to 240 V AC with two speed controlled fans and operates from 0 to 50 °C.

  • Best for: IP camera, wireless access point and VoIP phone deployments that need 24 PoE+ ports in one rack unit.
  • System fit: unmanaged plug and play Gigabit switch; standard IEEE 802.3af/at PoE devices and SFP fiber uplinks.
  • Important to know: the 370 W budget is shared across 24 ports, so not every port can draw a full 30 W at once; SFP modules are not included.

Why teams choose it

Built for reliable networks

  • 24 PoE+ ports

    up to 30 W per port with a 370 W total PoE budget.

  • Live PoE visibility

    PoE usage LEDs show real time power consumption against the budget.

  • Flexible uplinks

    two Gigabit combo ports for copper or SFP fiber.

  • Switching headroom

    52 Gbps switching capacity and 38.69 Mpps forwarding rate.

Specifications

Technical specifications

Product identifiers
SKUDGS-1026MP
General
Brand D-Link
Model DGS-1026MP
Device Type Unmanaged PoE+ switch
Form Factor 19 in rackmount or desktop
Management Unmanaged, plug and play
Interfaces
Ethernet Ports 24x GbE PoE+, 2x combo
Combo Ports 2x 1000BASE-T/SFP
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3az, 802.3af/at
Auto MDI/MDI-X Supported
Auto Negotiation Supported
Performance
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps at 64-byte packets
Transmission Method Store and forward
MAC Address Table 8K entries
Packet Buffer 512 KB
Jumbo Frames 9,720 bytes
Power
PoE Standard IEEE 802.3af/at
PoE Per Port Up to 30 W
PoE Budget 370 W
Power Method AC, 100 to 240 V
AC Input 100 to 240 V AC, 50/60 Hz
Physical
Width 440 mm
Height 44 mm, 1U
Cooling 2 fans, speed controlled
LEDs Power, PoE budget usage, link/activity/speed, PoE status
Environmental
Operating Temperature 0 to 50 °C
Storage Temperature -40 to 70 °C
Operating Humidity 10 to 90%, non-condensing
Listings and Approvals
EMI FCC, VCCI, CE
Safety UL
RoHS Compliant
