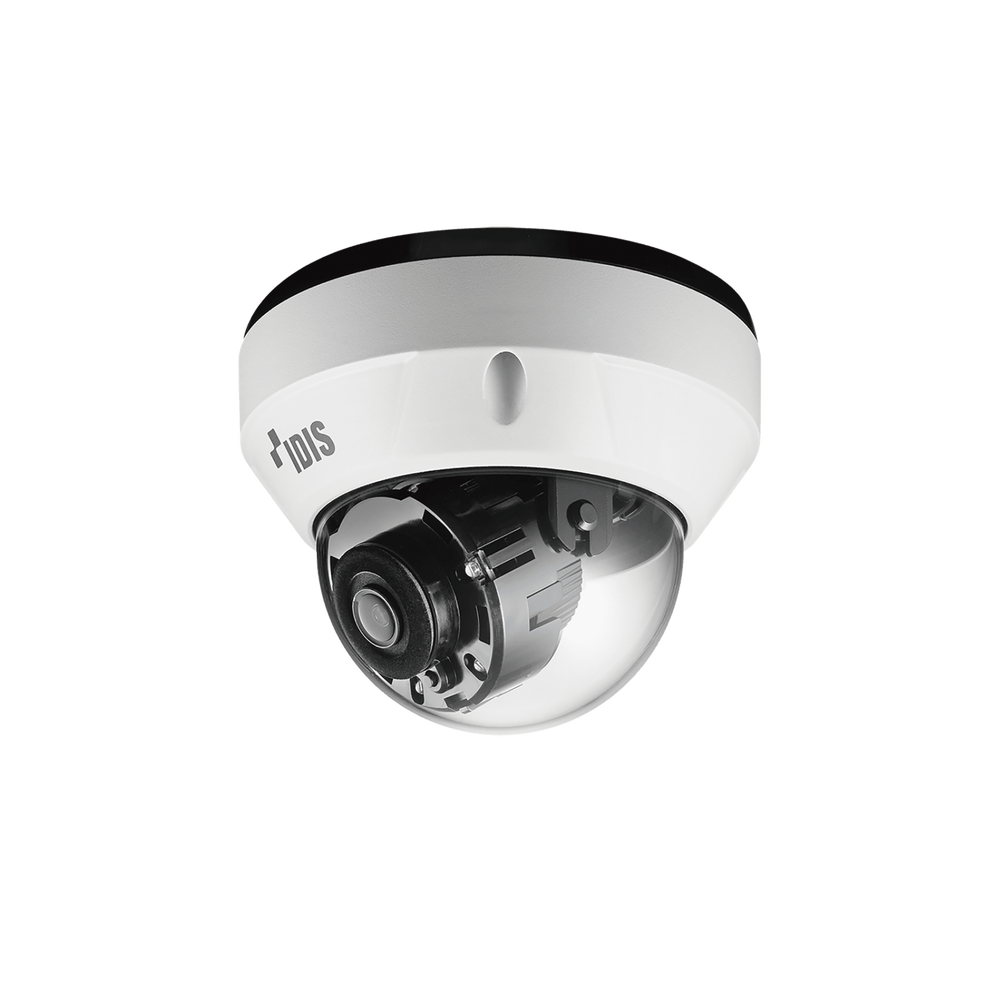

IDIS DCD4216WRXA28M(US) 1080p Dome IP Camera IK10 IP67 PoE H.265

PRODUCT TITLE

IDIS DCD4216WRXA28M(US) 1080p Dome IP Camera IK10 IP67 PoE H.265

PRODUCT OVERVIEW

Pan/Tilt/Rotate Range: Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109°

PRODUCT TYPE / CATEGORY

• Networking
• Security Cameras

KEY FEATURES

• Full HD 1080p Resolution With 2.8 mm Fixed Lens
• IK10 Vandal-Resistant and IP67 Weatherproof Housing
• Real 120dB WDR for Superior Dynamic Range Performance
• Infrared LEDs With Night Vision up to 98 ft
• Day/Night Detection With Automatic ICR Filter
• ONVIF Compliant With H.265/H.264 Compression Support

TECHNICAL SPECIFICATIONS

• Brand: IDIS
• Model: DCD4216WRXA28M(US)
• Product Type: Security Cameras
• Easy installation with DirectIP NVR
• Full HD (1080p) resolution
• Fixed-focal lens (f=2.8mm)
• micro SD/SDHC/SDXC
• Alarm in / out
• IK10 / IP67 supports
• PoE (IEEE 802.3af Class 2)
• Day and night (ICR)
• True wide dynamic range (WDR)
• IR LED (Distance: 30 m / 98.4 ft)
• 3-axis mechanical design for installation
• Supports ONVIF
• Image Sensor: 1/2.8” CMOS
• Max. Resolution: 1920 x 1080
• Scanning Mode: Progressive Scan
• Lens Type: Fixed-focal
• Focal Length: f=2.8mm
• Aperture: F2.0 (f=2.8mm)
• Iris Control: Fixed Iris
• Angular Field of View: 111.6°(H), 61.45°(V), 127.3°(D)
• Pan/Tilt/Rotate Range: Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109°
• Min. Illumination: COLOR : 0.1 lux @ F2.0, B/W : 0 lux (IR LED ON)
• Dynamic Range: 120dB (True WDR)
• Video Compression: H.265, H.264 (MP) M-JPEG
• Intelligent Codec" Supported
• Bitrate Control: H.265 - CBR / VBR, H.264 - CBR / VBR
• IP Camera Protocol: DirectIP 2.0, ONVIF
• Max. Frame Rate: 30ips : 1920 x 1080(WDR)
• Supports Resolution: 1920x1080, 1280x720, 640x360, 352x240

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems

SHIPPING

• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia

RETURNS

• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping
