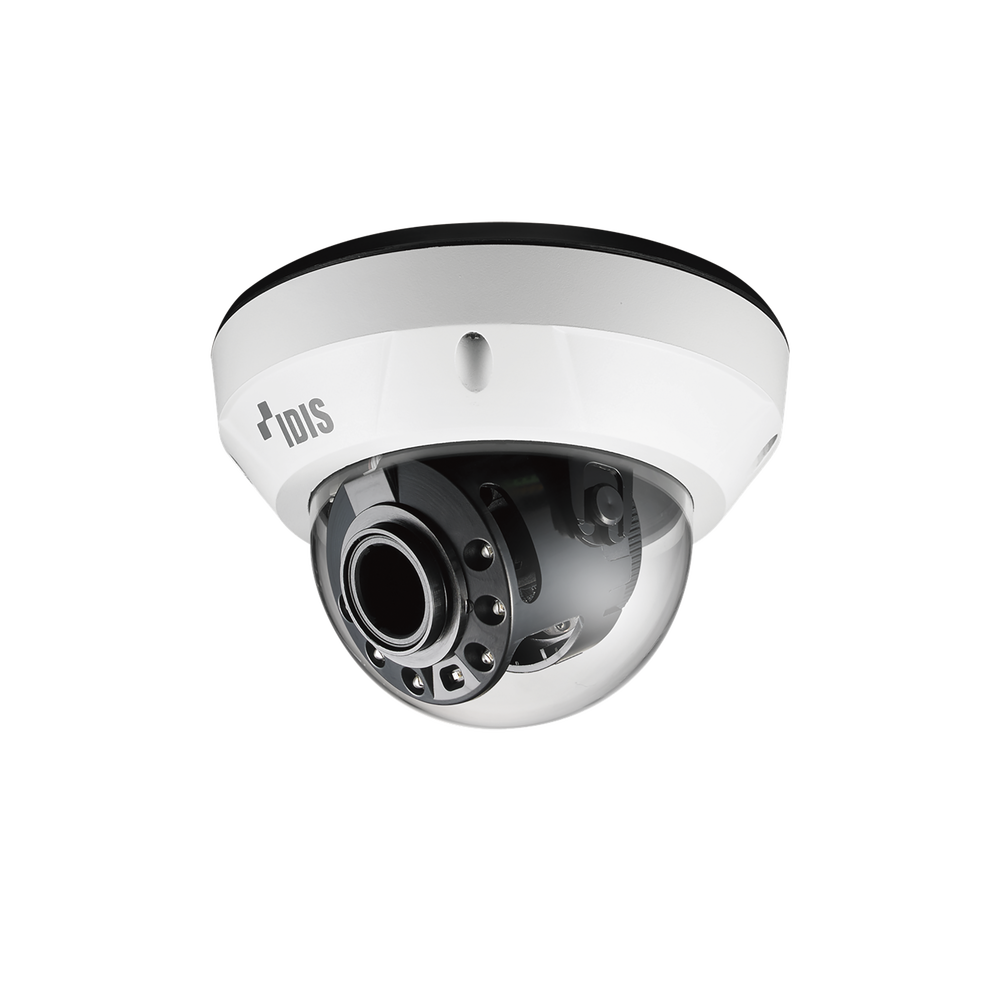

IDIS DCD4536HRXA(US) 5MP Vandal-Resistant IR Dome Camera PoE H.265

PRODUCT TITLE

IDIS DCD4536HRXA(US) 5MP Vandal-Resistant IR Dome Camera PoE H.265

PRODUCT OVERVIEW

Min. Illumination: COLOR : 0.15 lux @ F1.4, B/W : 0 lux (IR LED ON)

PRODUCT TYPE / CATEGORY

• Networking
• Security Cameras

KEY FEATURES

• Motorized Vari-Focal Lens With 3.0-13.5 mm Adjustable Range
• IK10 Vandal Resistance for Maximum Physical Protection
• IP67 Weatherproof Rating for Harsh Outdoor Environments
• Built-In Heater for Reliable Operation in Cold Conditions
• True WDR Technology for Clear Images in High Contrast
• Day/Night Function With ICR for 24/7 Surveillance

TECHNICAL SPECIFICATIONS

• Brand: IDIS
• Model: DCD4536HRXA(US)
• Product Type: Security Cameras
• 5MP (2592x1944) resolution
• Motorized Vari-focal lens (f=3.0 - 13.5mm)
• micro SD/SDHC/SDXC
• Alarm in / out
• IK10 / IP67
• Built-in heater
• Day and night (ICR)
• True wide dynamic range (WDR)
• IR LED (30m/98.4ft (6ea))
• PoE (IEEE 802.3af Class 3), 12V DC
• 3-axis mechanical design for installation
• Easy installation with DirectIP NVR
• Image Sensor: 1/2.8"
• Min. Illumination: COLOR : 0.15 lux @ F1.4, B/W : 0 lux (IR LED ON)
• Ethernet: RJ45 (10/100BASE-T)
• Privacy Masking: 8 Zones
• Video Compression: H.265, H.264 (MP) M-JPEG
• Supports intelligent codec
• IP Camera Protocol: DirectIP 2.0, ONVIF Profile S
• Trigger Event: Motion Detection, Tampering, Trip Zone
• Approval: FCC, CE, KC
• Power Source: 12VDC, PoE IEEE 802.3af (Class 3)
• Power Consumption: 12V=, 1.1A, 13.2W / PoE, IEEE 802.3af(Class 3), 11W
• Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Starting up at above -20°C (-4°F)
• Operating Humidity: 0% ~ 90%
• Dimensions (Ø x H): Ø155 x 104.4mm (Ø6.1" x 4.11")
• Weight: 1 kg (2.20lb)
• Motorized Vari-Focal Lens With 3.0-13.5 mm Adjustable Range
• IK10 Vandal Resistance for Maximum Physical Protection

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
