IDIS

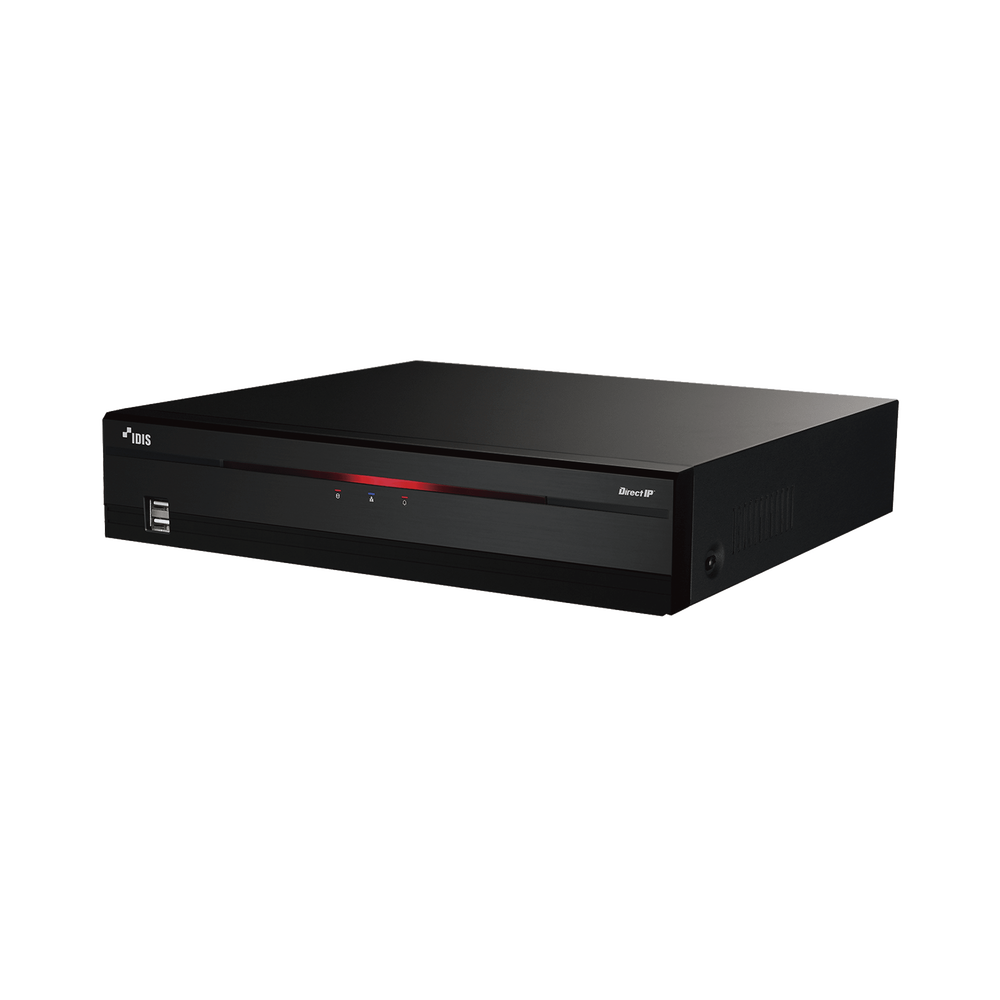

IDIS DR-2516P(US) 16-Channel 4K NVR H.265 8-Port PoE 480ips
Product identifier
SKU
DR-2516P(US)
$1,300.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
DirectIP™ 2500 Series H.265 4K Recorder / NDAA Compliant
Main Features:
- Up to 480ips live display
- Total incoming throughput 320Mbps
- Up to 480ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Easy to install, set-up and play with DirectIP™ cameras
- Built-in 8-channel PoE Switch
- Supports one-click network configuration through FEN service
- Supports third-party cameras (Axis, Panasonic, ONVIF™ )
Specifications
- Video Inputs: 16 IP channels
- Supported Camera: DirectIP™, AXIS, PANASONIC, ONVIF™
- Video Outputs: 1 HDMI, 1 VGA
- Max. Throughput: 180Mbps, 480ips@UHD
- Recording Mode: Time-Lapse, Event, Pre-Event, Panic
- Trigger Event: IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc.
- Performance: 16ch synchronous playback, 8ch 4K playback
- Approval: FCC, CE, KC
Physical and Electrical Characteristics:
- Power Consumption: NVR: 12V=, 2.2A, 26.4W, PSE: 48V=, 1.05A, 50.4W MAX
- Operating Temperature: 0°C to 40°C (32℉ ~ 104℉)
- Operating Humidity: 0% ~ 90%
- Dimensions (W x H x D): 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1")
- Weight: 2.3kg (5.1lb) (with 1 HDD)
Key Features
- 480 IPS Recording Speed at 2MP Ultra HD Resolution
- 8 Built-in PoE Ports for Simplified Camera Installation
- Gigabit Network Port for High-Speed Data Transfers
- Dual HDD Bays Supporting up to 10TB Total Storage
- eSATA Port for Fast External Backup and Expansion
- Compact Design for Easy Integration in Any Environment
