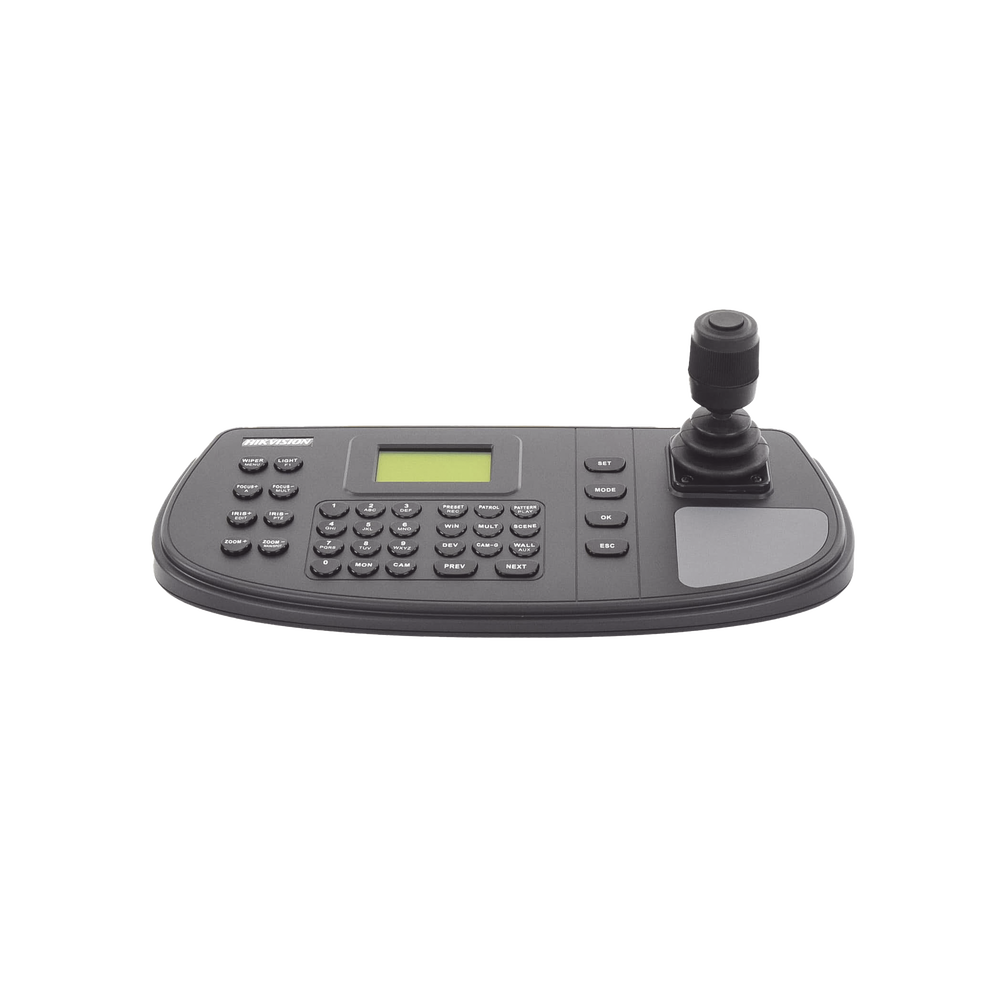

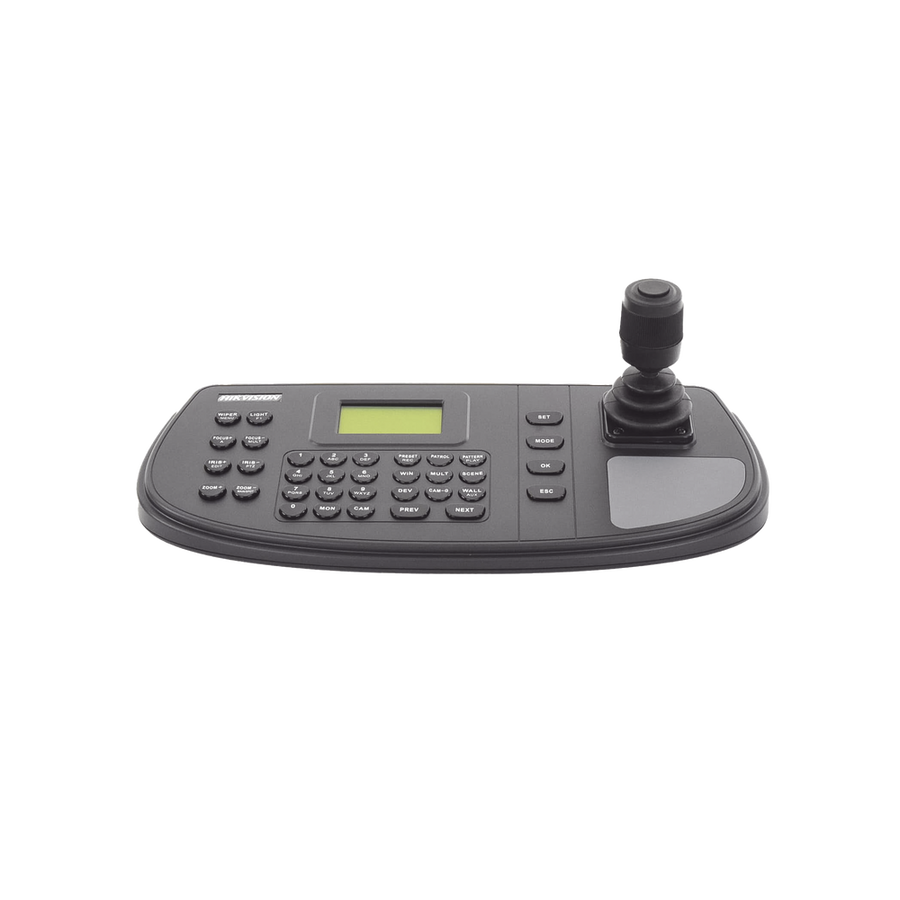

Hikvision DS-1006KI DVR PTZ Controller RS485 Pelco Protocol 16-User
Product identifier
SKU
DS-1006KI
$227.36
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
DVR & PTZ controller. Turbo/Analog brand epcom/Hikvision.
Control of Presets, Patrol, Pattern.
Protocols: HIKVISION, Pelco P/D.
RS485 Control up to 1200 meters in Half Duplex with data speeds of 1200 – 19200 baud.
Serial port: RS485 / RS232 / RS422
Up to 16 user accounts: 1 administrator and 15 operators.
Display: 128 x 64 pixels.
4-axis joystick.
Physical and Electrical Characteristics:
Application: Indoor.
Operating Temperature: -10 ~ 55ºC.
Power Supply: 12 VDC.
Power Consumption: 4.5W.
Dimensions: 435 x 193 x 110 mm.
Weight: 1 kg.
Control of Presets, Patrol, Pattern.
Protocols: HIKVISION, Pelco P/D.
RS485 Control up to 1200 meters in Half Duplex with data speeds of 1200 – 19200 baud.
Serial port: RS485 / RS232 / RS422
Up to 16 user accounts: 1 administrator and 15 operators.
Display: 128 x 64 pixels.
4-axis joystick.
Physical and Electrical Characteristics:
Application: Indoor.
Operating Temperature: -10 ~ 55ºC.
Power Supply: 12 VDC.
Power Consumption: 4.5W.
Dimensions: 435 x 193 x 110 mm.
Weight: 1 kg.
Key Features
- RS-485 Control up to 3937 ft Half Duplex Operation
- 128 x 64 Pixel LCD Display for Clear Status Monitoring
- Hikvision and Pelco P/D Protocol Compatibility
- Supports 16 Simultaneous User Accounts With Admin Control
- Efficient 12V DC Power Supply With Only 4.5W Consumption
- Operating Range From 14°F to 131°F for Various Environments
