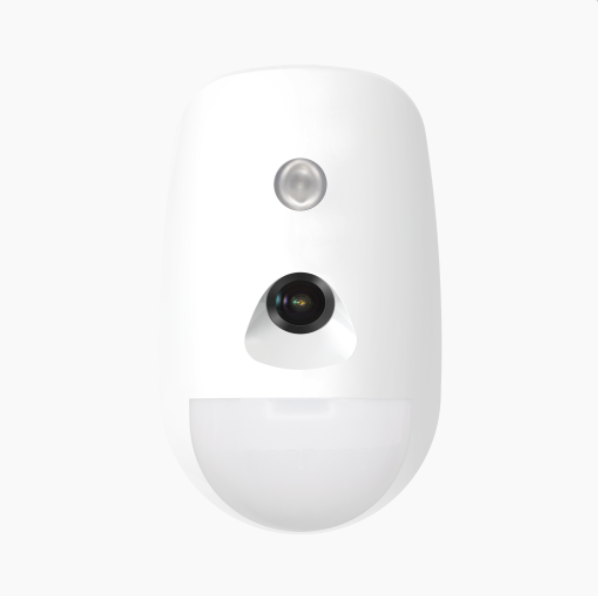

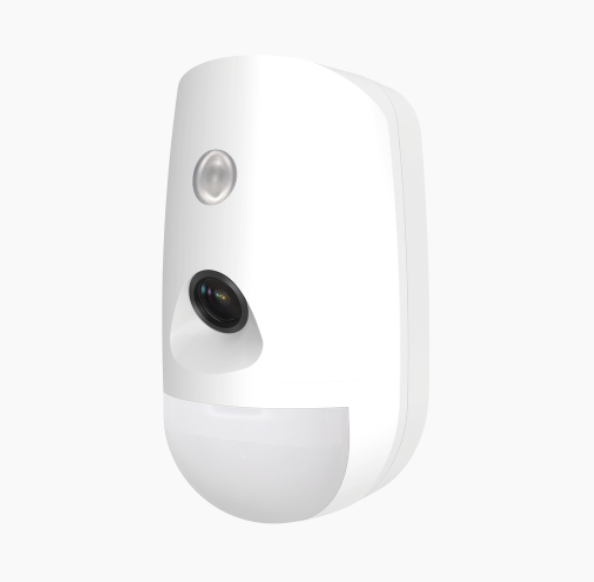

Hikvision DS-PDPC12P-EG2-WB (AX PRO) Indoor PIR Detector with Wireless Camera

The Hikvision DS-PDPC12P-EG2-WB is an indoor passive infrared detector with an integrated wireless camera, designed for the AX PRO security ecosystem. It combines motion detection with visual verification, transmitting images to alarm receiving centers or directly to end-user mobile devices via the Hikvision app. The built-in camera enables operators and property owners to confirm genuine intrusion events before dispatching a response, significantly reducing false alarm costs and improving situational awareness. Two-way wireless supervision ensures continuous link integrity between the detector and the control panel, while pet immunity up to 30 kg helps prevent nuisance activations in homes and light commercial environments. Tamper protection adds a physical layer of security against tampering or removal attempts.

Key features & benefits

• Integrated Visual Verification — A built-in camera capable of up to 640 x 480 resolution captures images upon alarm trigger, allowing alarm receiving centers or end users to visually confirm intrusion events in real time through connected apps or ARC platforms.
• 12-Meter Detection Range with Wide 85.9° Angle — The PIR sensor covers a detection range of 12 meters and an 85.9° field of view, providing broad coverage of interior spaces such as hallways, living areas, and retail floors from a single mounting point.
• Pet Immunity Up to 30 kg — Advanced PIR signal processing filters out movement from animals weighing up to 30 kg, reducing false alarms in residential and light commercial environments where pets are present.
• Fully Supervised Two-Way Wireless Communication — Continuous two-way supervision between the detector and the AX PRO control panel ensures link integrity is constantly monitored, providing instant notification if communication is disrupted.
• Long Battery Life — Powered by three included CR123A batteries at 3 V, the detector is rated for a standard battery life of six years, minimizing maintenance visits and reducing total cost of ownership.
• Tamper Protection — An integrated tamper switch detects unauthorized attempts to open or remove the device, immediately triggering an alert to the control panel to protect the integrity of the installation.
