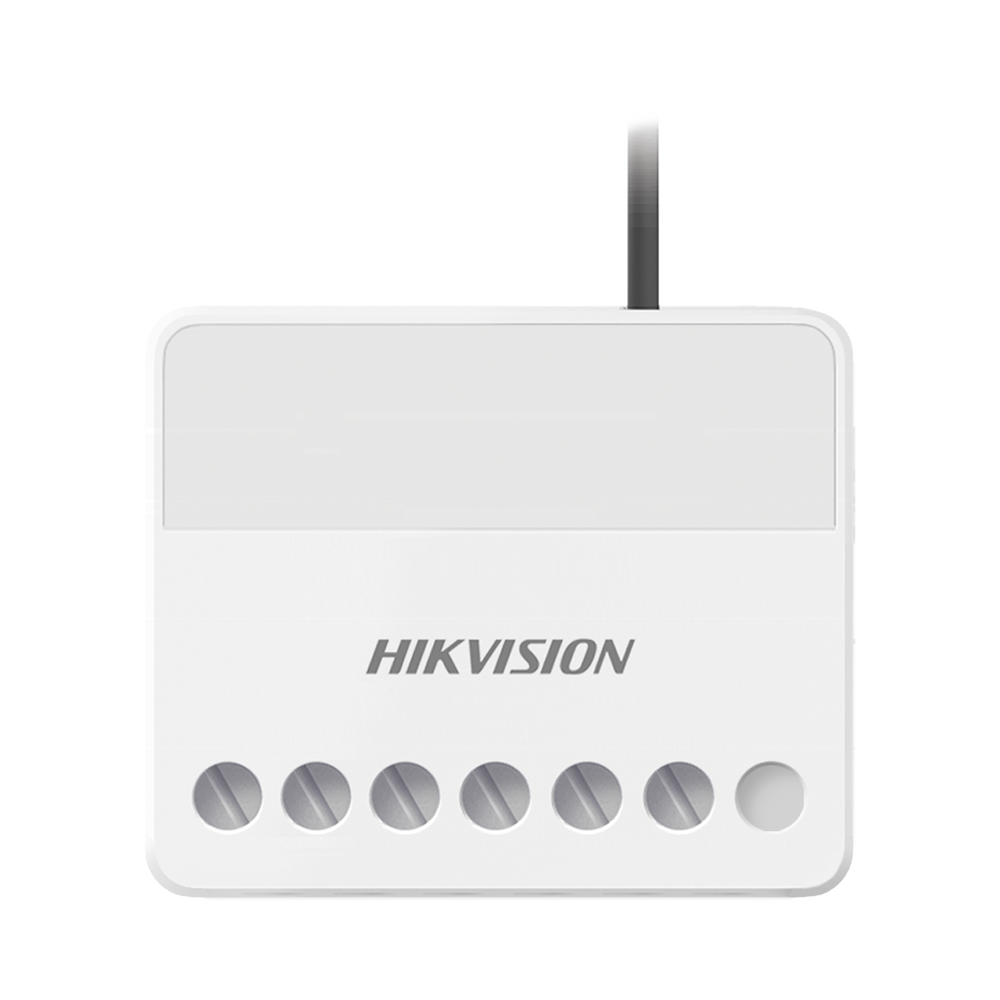

Hikvision DS-PM1-O1L-WB AX PRO 433MHz Wireless Relay Module 5A

PRODUCT TITLE

Hikvision DS-PM1-O1L-WB AX PRO 433MHz Wireless Relay Module 5A

PRODUCT OVERVIEW

Main Features: 433 MHz bidiractional wireless communication / AES-128 encryption.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• Bidirectional 433 MHz Wireless Communication With AES-128 Encryption
• LED Status Indicator Display for On/Off Operation Monitoring
• Compact 1.5 x 1 x 0.7 Inch Design for Easy Concealment
• Automation Control via App, Remote Control, or Wireless Keypad
• Relay Output Handles up to 5A for Low Voltage Device Integration
• 24/7 NO/NC Alarm Input for Continuous Monitoring Applications

TECHNICAL SPECIFICATIONS

• Brand: Hikvision
• Model: DS-PM1-O1L-WB
• Product Type: Networking Accessories
• 433 MHz bidiractional wireless communication / AES-128 encryption.
• LED display, shows device status: on / off.
• Small box design which can be easily hidden.
• Automation operation: on / off button from; app / control / keyboard.
• Scenario configuration fo different events.
• Usign the alarm input, it can be used as a 24 hour zone input for the panel (tamper).
• 1 Relay output: NO / NC (0 to 36 VDC / Max. 5A).
• 1 Input, 24 hour alarm: NO / NC.
• Operating Voltage: 7VDC to 24VDC (source not included, recommended product: PL-DC-1000 ).
• Operation temperature: 14° to 131°F.
• Dimension: 1.49" x 0.98" x 0.70".
• Weight: 0.05 lb.
• Bidirectional 433 MHz Wireless Communication With AES-128 Encryption
• LED Status Indicator Display for On/Off Operation Monitoring
• Compact 1.5 x 1 x 0.7 Inch Design for Easy Concealment
• Automation Control via App, Remote Control, or Wireless Keypad
• Relay Output Handles up to 5A for Low Voltage Device Integration
• 24/7 NO/NC Alarm Input for Continuous Monitoring Applications

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
