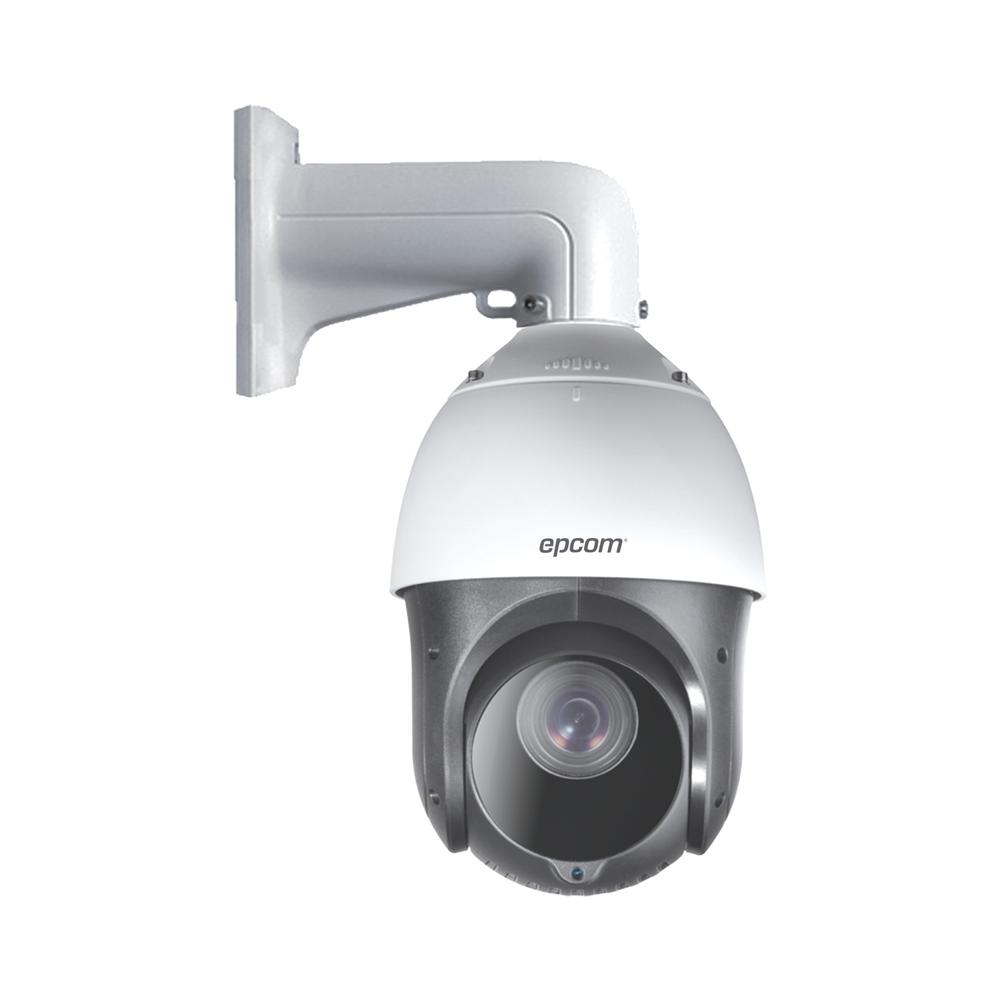

Epcom DX360-15X 1080p 15X Optical Zoom PTZ Dome IP66 WDR 120dB
Product identifier
SKU
DX360-15X
$213.14
Out of stock
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Main Features:
- Resolution: 2 Megapixels (1920 x 1080).
- Minumum Ilumination: Color 0.005 Lux (F1.6, AGC ON).
- Minumum Ilumination: B/N 0.001 Lux (F1.6, AGC ON).
- Functions: WDR 120dB / 3D-DNR / BLC / HLC / EIS.
- Focal Length: 5 a 75 mm (15X Optical Zoom / 16X Digital Zoom).
- IR Distance: 100 mts IR.
- Support 4 technologies (TVI / AHD / CVI / CVBS).
- Support RS-485 conection (analog) and COAXITRON conection (TurboHD).
Physical and Electrical Characteristics:
- Power Supply: 12 Vcc / 20 Watts.
- Operating Temperature: -22° F to 149° F.
- Protection: Indoor / Outdoor (IP66).
- Dimensions: 6.47" × 11.61".
- Weight: 4.41 lb.
- PTZ includes wall mounting and power supply (12 VDC).
- It is recommended to place the DS-1601ZJ-CP coupling to isolate the PTZ from the wall mounting and prevent failure.
General Features:
- Pan: 360º.
- Tilt: -15º a 90º.
- Preset: 256.
- Patrol: 10 (32 Preset per patrol)
- Pattern: 5 (with the total recording time no less than 10 minutes).
- Support schedule task.
- Protocols: HIKVISION / Pelco-P / Pelco-D.
Key Features
- Full HD 1080p Resolution With 1920 x 1080 Pixels
- 15X Optical Zoom and 16X Digital Zoom for Detailed Imaging
- EXIR Infrared Technology for Clear 328 ft Night Vision
- 120 dB WDR for Superior Performance in High Contrast
- IP66 Weatherproof Rating for Harsh Outdoor Environments
- Ultra Low Light Sensitivity of 0.001 Lux in B/W
