Enforcer Secolarm E-936-S45RRGQ Retro-Reflective Photoelectric Beam Sensor / 45 ft (14 m) Range / IP66 Weatherproof / SPDT Relay Output / 12-30V DC/AC / UL 325 Compliant

ENFORCER SECOLARM

Seco-Larm E-936-S45RRGQ Retro-Reflective Photoelectric Beam Sensor 45ft IP66

Product identifier
SKU E-936-S45RRGQ
$85.86
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

SECO-LARM model: E-936-S45RRGQ

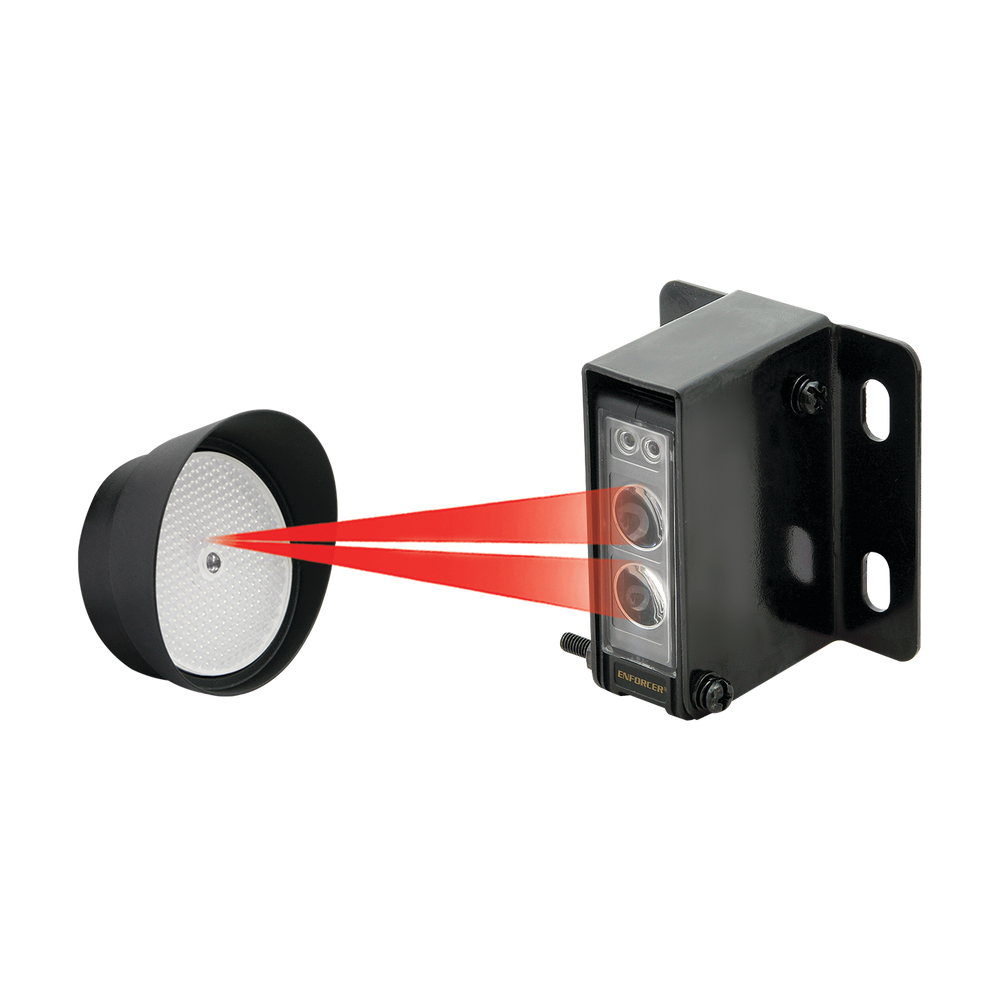

The ENFORCER E-936-S45RRGQ is an ETL listed Retro-Reflective Photoelectric Beam Sensor designed for reliable object detection between the sensor and reflector. This professional-grade sensor features a 45 ft (14 m) operating range with adjustable sensing capabilities and IP66 weatherproof construction suitable for both indoor and outdoor applications. The unit includes a pre-wired 6.5 ft (2 m) cord and provides SPDT relay output with built-in 10kΩ resistor on the normally open output. Ideal for gate operators, garage door openers, store entry notifications, and parking distance monitoring, this sensor conforms to UL Standard 325 requirements for safety and reliability in access control applications.

General Characteristics

  • Type: Retro-reflective photoelectric beam sensor
  • Range: 0.5~45 ft (0.2~14 m) adjustable
  • Weatherproof Rating: IP66 (indoor/outdoor use)
  • Operating Voltage: 12-30V DC/AC 60Hz
  • Output: SPDT Relay with NO/NC/COM contacts
  • Certification: ETL listed, UL Standard 325 compliant
  • Cable: Pre-wired 6.5 ft (2 m) cord included
  • Mounting: Bracket and hardware included for sensor and reflector
Performance Specifications
  • Sensing Range: 0.5~45 ft (0.2~14 m)
  • Response Time: 10ms
  • Light Source: IR LED
  • LED Indicators: Yellow (ON = Aligned), Red (ON = Power)
  • Trigger Output: SPDT Relay (NO/NC/COM)
  • Built-in Resistor: 10kΩ on N.O. output
  • Switching Capacity: 2A @ 30VAC/VDC
Electrical & Physical
  • Operating Voltage: 12-30V DC/AC 60Hz
  • Current Draw (Max): 100mA
  • Standby Current: 70mA @ 12VDC
  • Active Current: 55mA @ 12VDC
  • IP Rating: IP66 Weatherproof
  • Operating Temp: -4~131°F (-20~55°C)
  • Sensor Dimensions: 13/16" x 2 1/2" x 1 9/16" (20.5x63x39 mm)
  • Reflector Dimensions: ø3 1/4" x 3/8" (ø82x9 mm)
  • Cable: 6.5 ft x ø1/4" (2m x ø6mm)
Package Contents
  • E-936-S45RRGQ Retro-Reflective Photoelectric Beam Sensor
  • Reflector with hood
  • Mounting bracket for sensor
  • Mounting bracket for reflector
  • Mounting hardware
  • Pre-wired 6.5 ft (2 m) cable

Applications

  • ? Garage door openers
  • ? Entry gate operators
  • ? Store entrance notifications
  • ?️ Parking distance monitoring
  • ? Main entrance door sensing

Compatible Accessories

  • ☍ E-931ACC-R2Q - Square Reflector
  • ☍ E-931ACC-RC1Q - Round Reflector
  • ☍ E-931ACC-HR1Q - Reflector Hood
  • ☍ E-931ACC-BLR2Q - Reflector Bracket
  • ☍ E-931ACC-BLS6Q - Single-Gang Flush-Mount Bracket
  • ☍ E-931ACC-BLS7Q - L-Bracket for Side Mounting
  • ☍ E-931ACC-BLS8Q - Wall Bracket

Key Features

  • Adjustable Detection Range up to 46 ft for Flexible Installation
  • 12 VDC 100 mA Low Power Consumption Operation
  • IP66 Weatherproof Rating for Indoor and Outdoor Applications
  • Integrated Relay Output With NO, NC, and COM Contacts
  • Includes 6 ft Wiring and Mounting Hardware for Easy Setup
  • LED Indicators for Alignment and Trigger Status Monitoring
