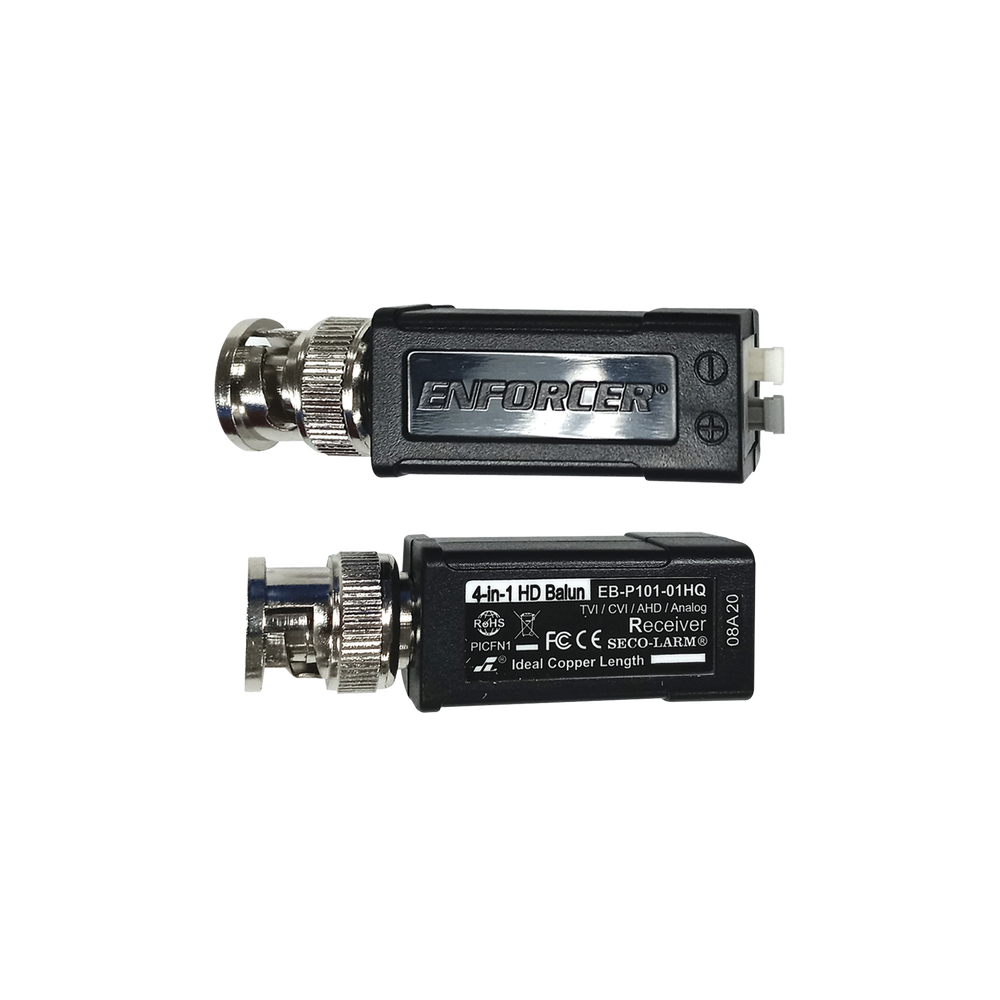

Epcom Titanium EBP10101HQ 4-in-1 HD Balun, TVI / CVI / AHD/ Analog
Product identifier
SKU
EBP10101HQ
$16.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Specifications:
- 4-in-1 (TVI / CVI / AHD/ Analog)
- For use with cameras up to 4K
- Real-time transmissions over UTP Cat5e/6
- PAL / NTSC / SECAM compatible
- Built-in TVS surge protection
- Anti-static and wave filter
- Lightning protection-grade III
- 60dB crosstalk and noise immunity
- Operating temperature: -4 ~ 158 ºF (-20 ~ 70 ºC)
- Sold as pair*
Max distance:
TVI
- 4MP: 590 ft (180 m)
- 4K: 426 ft (130 m)
CVI
- 4MP / 4K: 656 ft (200 m)
AHD
- 4MP: 656 ft (200 m)
- 4K: 492 ft (150 m)
Analog
- 4MP / 4K: 1,312 ft (400 m)
Key Features
- 4-in-1 Compatibility With TVI, CVI, AHD, and Analog Video Formats
- Real-Time Transmission Over UTP Cat5e/6 Cable up to 1312 ft
- Built-in TVS Protection and Lightning Surge Protection Grade III
- 60 dB Crosstalk Rejection and Superior Noise Immunity
- Wide Operating Temperature Range From -4°F to 158°F
- Supports 4MP and 4K Resolution Across All Compatible Formats
