Linkedpro EF-100-SC 100m Single-Mode Fiber Optic Cable SC-SC Duplex
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details

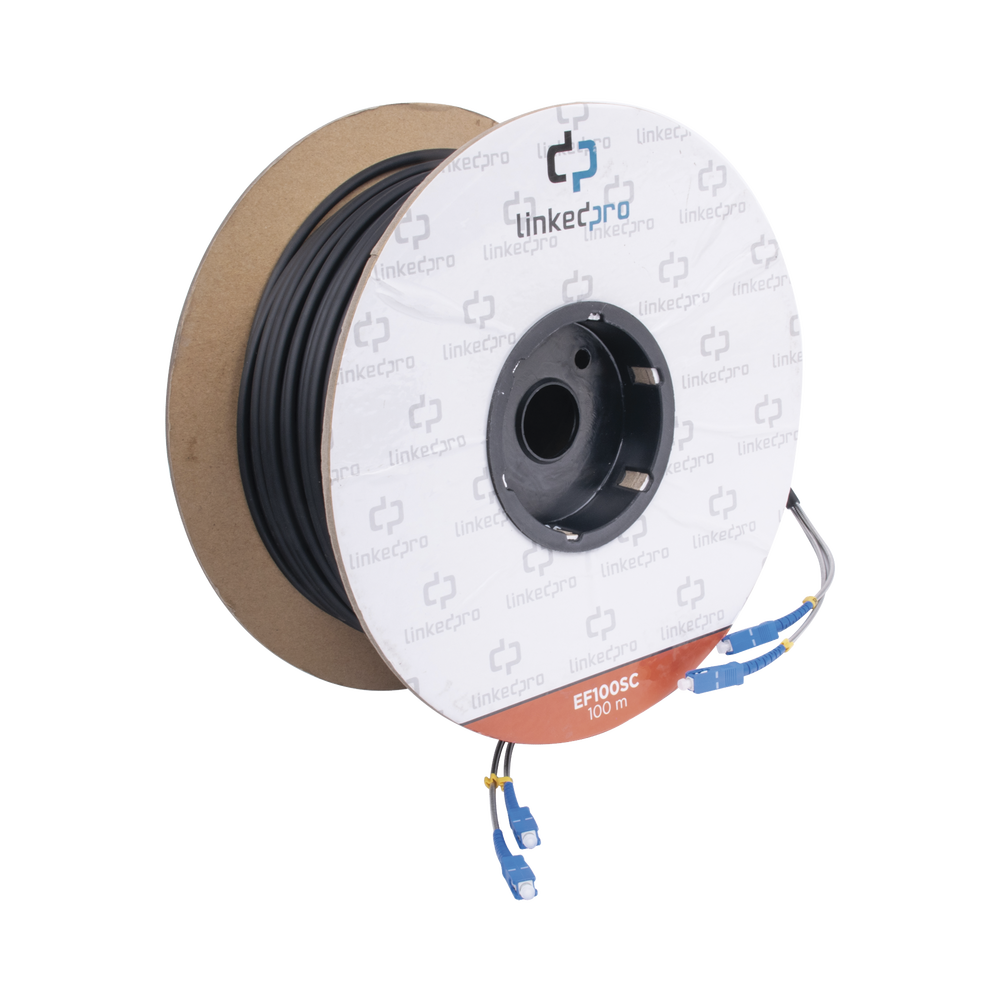

328 ft (100 m) Single-Mode Fiber Optic Cable Drum — SC-SC Duplex Connectors
This pre-terminated 9/125 single-mode fiber drum from LinkedPro by EPCOM is designed for fast, reliable point-to-point links, surveillance backbones, and outdoor network deployments. It includes 328 ft (100 m) of tight-buffered fiber with factory-installed SC-SC duplex connectors, eliminating the need for field fusion splicing.
A rugged black HDPE (High-Density Polyethylene) outer jacket protects the cable, while the internal fibers help ensure easy polarity identification. With low attenuation and a high-precision core, this drum is ideal for permanent or temporary links across commercial, industrial, and security installations.
Product Overview
- Pre-terminated drum with SC-SC duplex connectors for easy installation.
- Single-mode 9/125 fiber for high-precision transmission.
- 328 ft (100 m) length ideal for camera links and short-range network runs.
- Supports linking up to 4 EF drums (any length) using 2× EF-UNION-SC mechanical adapters.
- Compatible with switches, NVRs, and media converters using SC interfaces.
Technical Specifications
- Fiber type: Single-mode 9/125
- Connectors: SC-SC duplex (factory-terminated)
- Fiber Count: Duplex (2 fibers)
- Operating Wavelength: 1310 / 1550 nm
- Jacket Material: High-Density Polyethylene (HDPE)
- Jacket Color: Black
- Length: 100 meters (328 ft)
Physical & Environmental
- Drum length: 328 ft (100 m)
- Deployment: Indoor / Outdoor
- Mechanical connection: Up to 4 drums can be connected.
- Required Adapters: 2 EF-UNION-SC per connection.
Video: Connectorized Fiber — How to Connect LinkedPro Reels
Key Features
- Single Mode 9/125 Fiber for High Efficiency Data Transmission
- SC/SC Duplex Connectors Ensure Secure and Stable Connections
- Kevlar Reinforcement Provides Superior Durability and Protection
- Supports up to 4 Mechanical Splices in Any Configuration
- Ideal for Point-to-Point Links With Media Converters
- 328 ft Length for Extended Distance Network Applications
