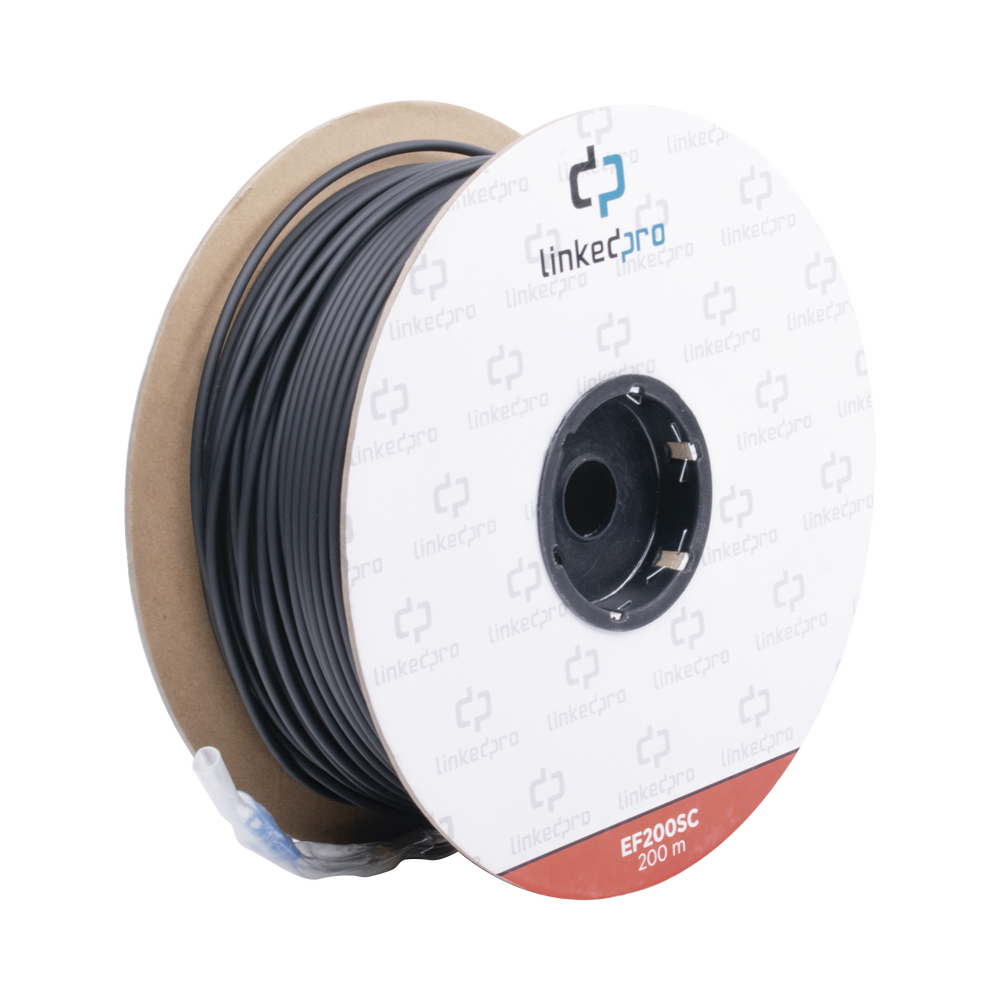

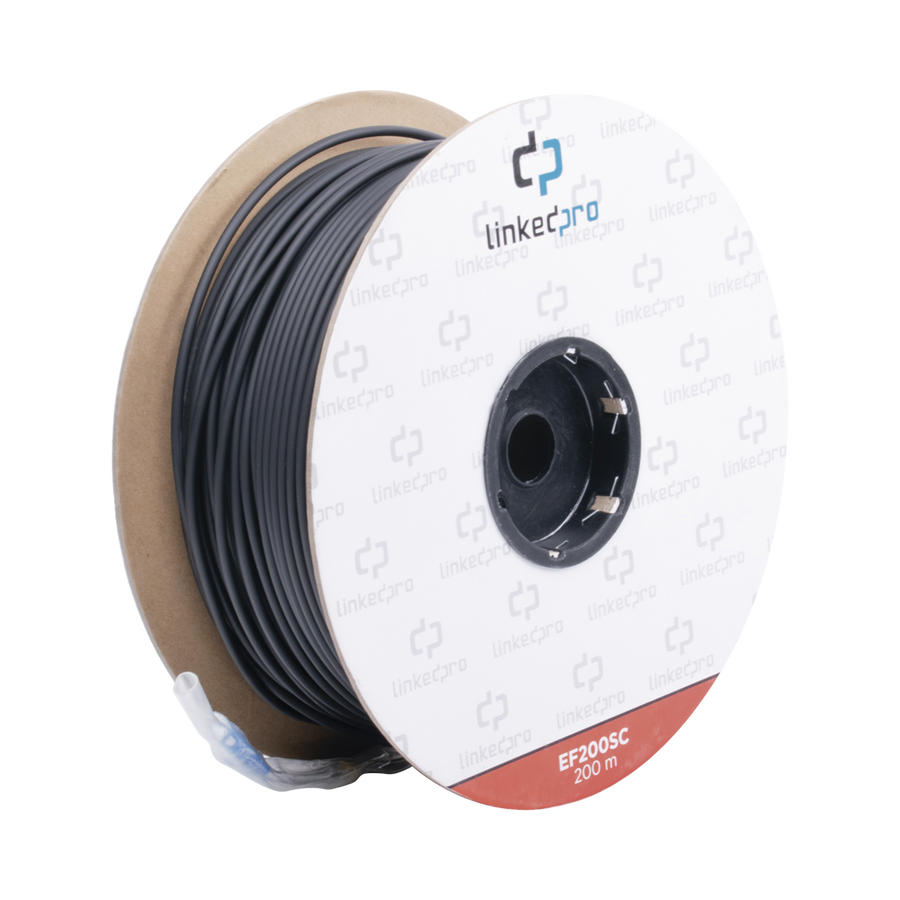

656 ft (200 m) Single-Mode Fiber Optic Cable Drum — SC-SC Duplex Connectors
This pre-terminated 9/125 G.652D single-mode fiber drum from LinkedPro is designed for fast, reliable point-to-point links, surveillance backbones, and outdoor network deployments. It includes 656 ft (200 m) of tight-buffered fiber with factory-installed SC-SC duplex connectors, eliminating the need for field fusion splicing.
A rugged black HDPE outer jacket protects the cable, while the internal white and yellow fibers help ensure easy polarity identification. With low attenuation, a 1310–1550 nm operating range, and a wide temperature tolerance, this drum is ideal for permanent or temporary links across commercial, industrial, and security installations.
Product Overview
- Pre-terminated drum with SC-SC duplex connectors for easy installation.
- Single-mode 9/125 tight-buffer (900 µm) G.652D fiber for high-precision transmission.
- 656 ft (200 m) length ideal for camera links and short-to-medium network runs.
- Supports linking up to 4 reels of any length using 2× EF-UNION-SC mechanical adapters per splice.
- Compatible with switches, NVRs, and media converters using SC interfaces.
Technical Specifications
- Fiber type: Single-mode 9/125, tight buffer 900 µm, G.652D
- Wavelength range: 1310 – 1550 nm
- Connectors: SC-SC duplex (mechanical, factory-terminated)
- Fiber colors: White & Yellow
- Attenuation @ 1310 nm: ≤ 0.4 dB/km
- Attenuation @ 1550 nm: ≤ 0.3 dB/km
- External diameter: ~0.21 in (5.4 mm)
- Outer jacket: Black HDPE
Physical & Environmental
- Drum length: 656 ft (200 m)
- Operating temperature: -4 °F to +140 °F (-20 °C to +60 °C)
- Minimum bend radius (dynamic): ~1.18 in (30 mm)
- Minimum bend radius (static): ~0.79 in (20 mm)
Video: Connectorized Fiber — How to Connect LinkedPro Reels
Key Features
- SC/SC Duplex Connectors for Single Mode Fiber Connectivity
- 656 ft Length of 9/125 OS2 Single Mode Fiber Cable
- Kevlar Reinforcement for Superior Tensile Strength and Durability
- Supports up to 4 Maximum Splices for Flexible Deployment
- Optimized for Underground Duct Installation Applications
- Compatible With Media Converters for Point-to-Point Links
