Linkedpro EF-300-SC 984ft Single-Mode Fiber Optic Cable SC-SC
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details

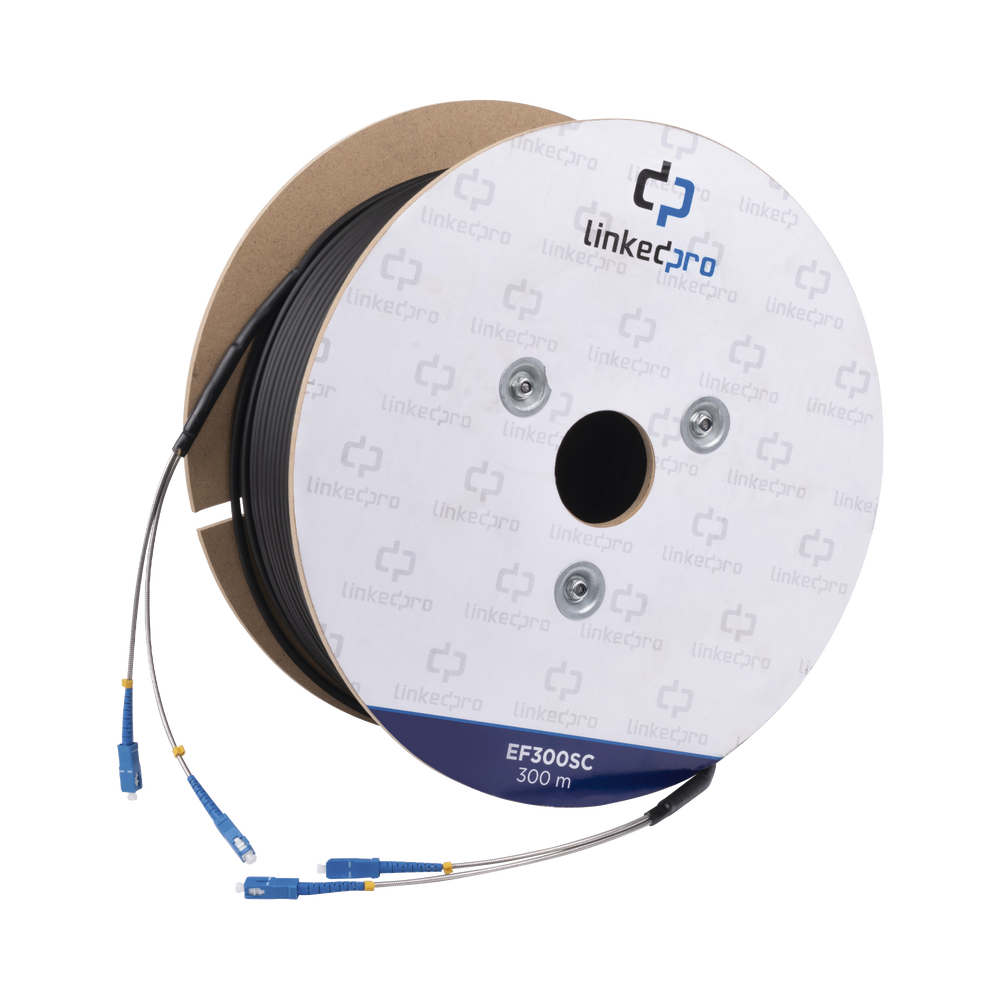

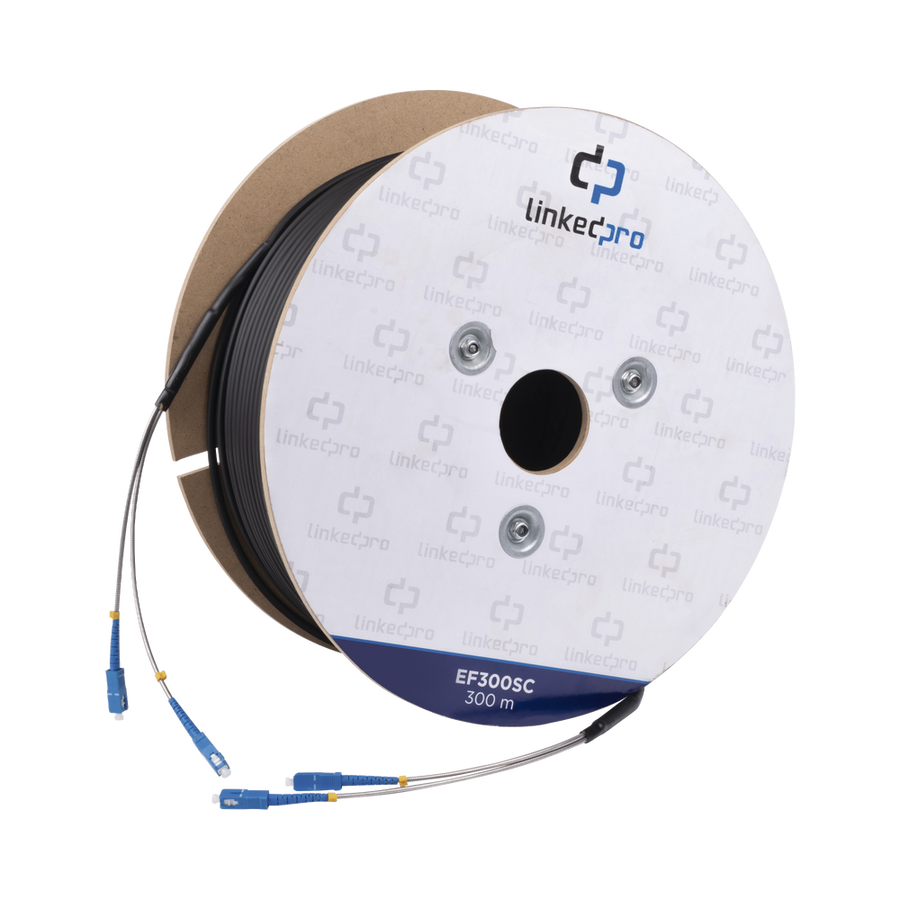

984 ft (300 m) Single-Mode Fiber Optic Cable Drum — SC-SC Duplex Connectors
This pre-terminated single-mode 9/125 G.652D fiber drum from LinkedPro is designed for fast and reliable point-to-point links, CCTV backbones, and long network runs. The drum includes 984 ft (300 m) of tight-buffered fiber with factory-installed SC-SC duplex connectors, providing stable connections without fusion splicing in the field.
A durable black HDPE outer jacket protects the cable, while white and yellow fibers simplify polarity identification. Low attenuation, a broad wavelength window of 1310–1550 nm, and a wide operating temperature range make this an excellent solution for permanent or temporary outdoor and indoor installations.
Product Overview
- Pre-terminated drum with SC-SC duplex connectors for easy installation.
- Single-mode 9/125 tight-buffered (900 µm) G.652D fiber for efficient transmission.
- 984 ft (300 m) reel ideal for long camera or backbone links.
- Mechanical connection system allows linking up to 4 drums (up to 3937 ft) using EF-UNION-SC couplers.
- Compatible with switches, NVRs, and media converters with SC interfaces.
Technical Specifications
- Fiber Type: Single-mode 9/125, Tight Buffer 900 µm, G.652D
- Wavelength Range: 1310 – 1550 nm
- Connectors: SC-SC duplex (factory-terminated mechanical connectors)
- Wire Color: White & Yellow
- Attenuation @ 1310 nm: ≤ 0.4 dB/km
- Attenuation @ 1550 nm: ≤ 0.3 dB/km
- External Diameter: ~0.21 in (5.4 mm)
- Covering: Black HDPE jacket
Physical & Environmental
- Drum Length: 984 ft (300 m)
- Operating Temperature: -4 °F to +140 °F (-20 °C to +60 °C)
- Minimum Bend Radius (dynamic): ~1.18 in (30 mm)
- Minimum Bend Radius (static): ~0.79 in (20 mm)
Video: Fiber Optic Connectorized — How to Connect LinkedPro Fiber Reels
Key Features
- Low Attenuation Single Mode 9/125 Fiber for High Performance
- SC/SC Duplex Connectors Certified for 5000 Mating Cycles
- 984 ft Spool With Reinforced Structure for Easy Deployment
- Compatible With up to 4 Mechanical Splices Maximum
- Kevlar Fiber Reinforcement for Enhanced Durability and Strength
- Ideal for Underground Duct Installations and Conduit Applications
