EnGenius EMP-8603 Dual Band 802.11a/b/g Mini PCI Radio Module, up to 800 mW, MMCX

Part number / SKU
EMP-8603
  • IEEE 802.11a/b/g
  • 2.4, 4.9 and 5 GHz
  • Up to 108 Mbps
  • 2x MMCX connector

$37.79

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

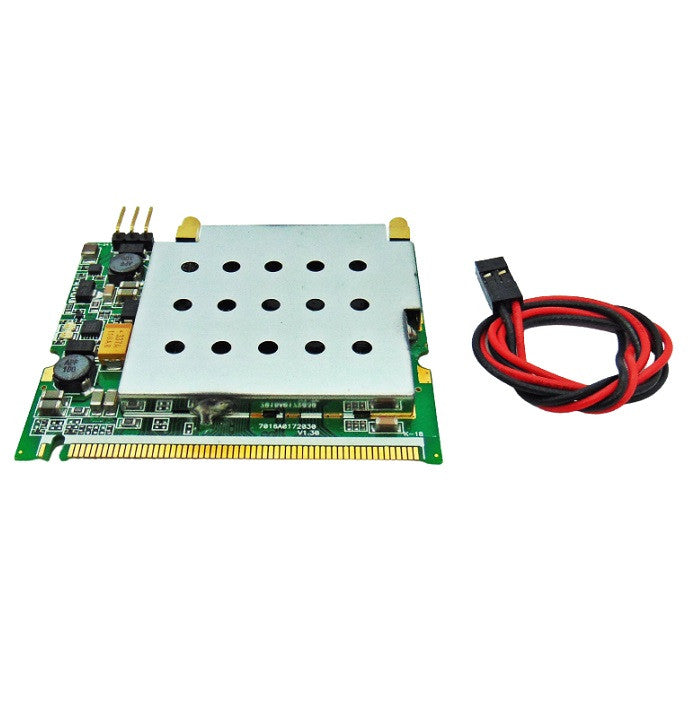

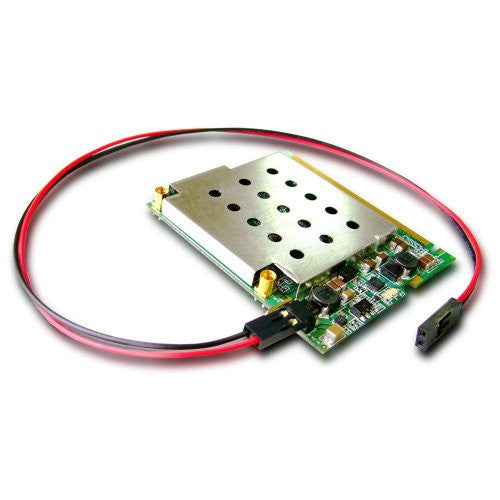

The EnGenius EMP-8603 is a high power dual band 802.11a/b/g radio module on a mini PCI Type A card. It transmits up to 800 mW in 802.11b, 600 mW in 802.11g and 500 mW in 802.11a, covering the 2.4 GHz, 4.9 GHz and 5 GHz bands.

It supports Atheros SuperAG Turbo mode for data rates up to 108 Mbps, 10, 20 and 40 MHz channel bandwidths, and two MMCX antenna connectors. A low power design, ESD protection up to 16 kV and heat protection make it suitable for long range links and 5 GHz backhaul built into embedded platforms.

  • Best for: embedded routers and outdoor CPE or backhaul builds that need a high power radio card.
  • System fit: boards with a mini PCI Type A slot; antennas or pigtails with MMCX.
  • Important to know: a bare radio card; it needs a host board, driver support and antennas; 108 Mbps is the Turbo mode rate.

Why teams choose it

Built for reliable networks

  • High power

    up to 800 mW at 2.4 GHz.

  • Dual band

    2.4, 4.9 and 5 GHz.

  • Flexible channels

    10, 20 and 40 MHz.

  • ESD protection

    up to 16 kV.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUEMP-8603
General
Brand EnGenius
Model EMP-8603
Device Type Mini PCI radio module
Wireless
Wireless Standard IEEE 802.11a/b/g
Frequency Band 2.4, 4.9 and 5 GHz
TX Power 802.11b 800 mW
TX Power 802.11g 600 mW
TX Power 802.11a 500 mW
Channel Width 10, 20, 40 MHz
Data Rate Up to 108 Mbps
Data Rate Condition Atheros SuperAG Turbo mode
Interfaces
Host Interface Mini PCI Type A
Antenna Type 2x MMCX connector
Environmental
ESD Protection Up to 16 kV
