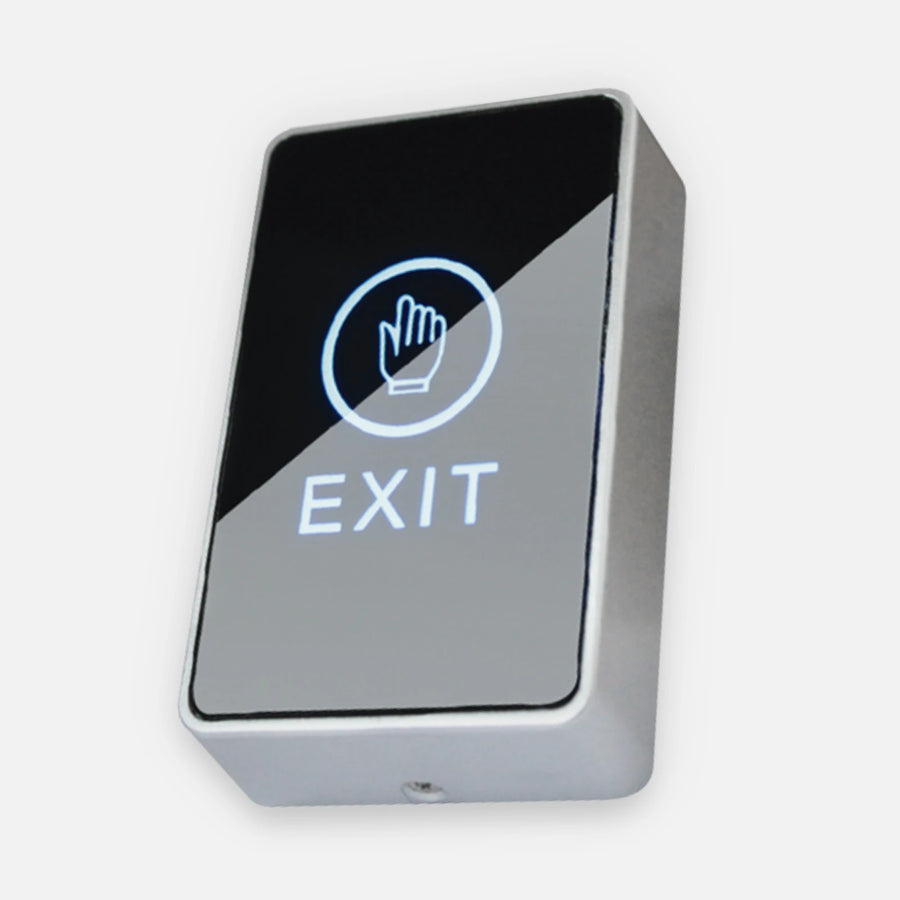

Epcom ACCESSC1 Touch Push-to-Exit Button 12-24VDC Access Control
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Touch-sensitive push to exit button designed for door access control systems. Features a modern low-profile design and compatibility with standard access control installations.
PRODUCT TYPE
Access Control
KEY FEATURES
• Soft touch activation button
• Modern and elegant low-profile design
• Compatible with standard access control systems
• Supports NO / COM / NC contact configuration
• Suitable for door release and exit control applications
• Compact installation format
TECHNICAL SPECIFICATIONS
• Model: ACCESSC1
• Operating Voltage: 12VDC
• Contact Configuration: NO / COM / NC
• Supported Current: 3A / 12-24VDC
• Operating Temperature: -20°C to 50°C
• Dimensions: 86 × 50 × 20 mm
• Weight: 0.1 kg
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Door access control systems
• Commercial and residential exit control installations
• Electric lock and door release applications
