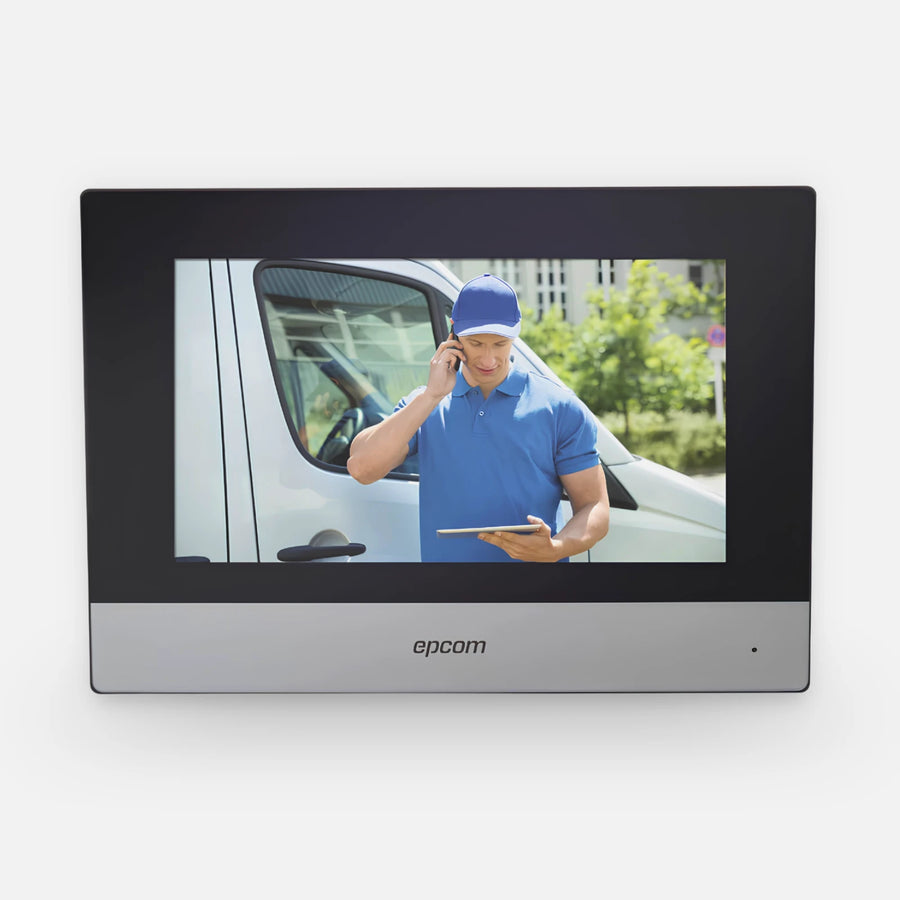

Epcom ACM63WT 7in Color Touch Access Control Terminal PoE WiFi
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
IP-based indoor intercom monitor featuring a 7-inch touch-sensitive display, PoE support, WiFi and Ethernet connectivity, SIP/RTSP compatibility, and integration with door phone and IP camera systems.
PRODUCT TYPE
Access Control
KEY FEATURES
• 7-inch color touch-sensitive display
• PoE standard support
• Built-in microphone and speaker
• WiFi and Ethernet network connectivity
• Supports TCP/IP, SIP, and RTSP protocols
• Compatible with IP cameras and door phone cameras
• Supports audio, video, and door release functions
• MicroSD card support up to 32 GB for image storage
• Eight alarm input channels
• Compatible with Hik-Connect P2P for notifications and remote door release when used with a compatible modular multi-apartment door phone
TECHNICAL SPECIFICATIONS
• Model: ACM63WT
• Display Size: 7 in
• Display Resolution: 1024 × 600
• Network Interfaces: WiFi, Ethernet 10/100 Mbps
• Supported Protocols: TCP/IP, SIP, RTSP
• Alarm Inputs: 8
• MicroSD Capacity: Up to 32 GB
• Operating Voltage: 12 VDC, 1 A
• Power Supply: Not Included
• Power Consumption: 6 W
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Dimensions: 200 × 140 × 15.1 mm (7.9 × 5.5 × 0.6 in)
INTENDED USE / APPLICATIONS
• Indoor video intercom installations
• Access control and visitor management systems
• Monitoring of compatible IP cameras and door phone cameras
• Remote notification and door release applications when paired with compatible systems
