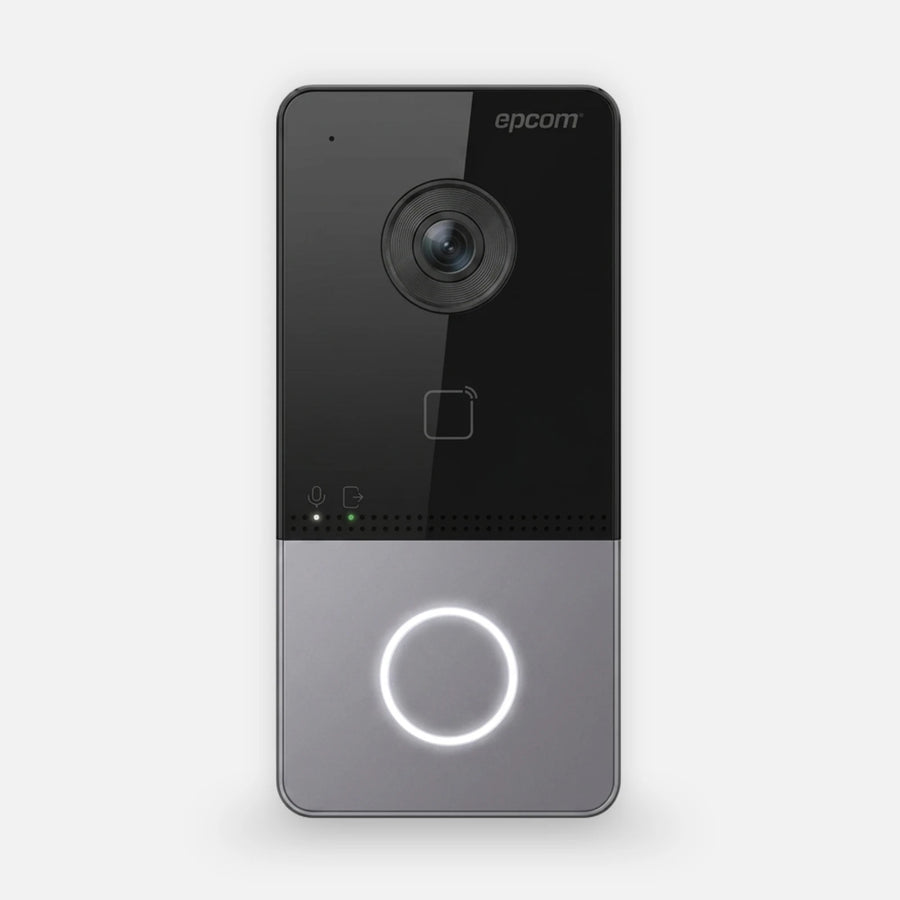

Epcom ACVP61W(C) 1080p WiFi IP Video Intercom Doorbell PoE IP65
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
IP video intercom doorbell with 1080p camera, WiFi and PoE connectivity, access control functionality, two-way audio, Mifare card support, and HikConnect integration for remote monitoring and door control.
PRODUCT TYPE
Access Control
KEY FEATURES
• 1080p integrated camera with IR illumination
• H.264 video compression support
• 129° viewing angle
• Supports HikConnect App integration
• Supports indoor monitor integration
• Access control functionality
• Built-in microphone and speaker
• Two-way audio communication
• Wide Dynamic Range (WDR) support
• Standard PoE IEEE802.3af support
• 2.4 GHz WiFi connectivity
• Supports up to 128 Mifare cards (13.56 MHz)
• Relay output for door control
• Web interface supported
• IP65 weather-resistant enclosure
TECHNICAL SPECIFICATIONS
• Model: ACVP61W(C)
• Camera Resolution: 1080p
• Video Compression: H.264
• Viewing Angle: 129°
• IR Range: 3 m
• Network Interface: TCP/IP 10/100 Mbps Ethernet
• Supported Protocols: RTSP, self-adaptive Ethernet
• WiFi Frequency: 2.4 GHz
• Alarm Inputs: 4
• Card Support: Up to 128 Mifare cards (13.56 MHz)
• Relay Outputs: 1
• Power Input: 12 VDC or Standard PoE IEEE802.3af
• Power Consumption: 10W
• Protection Rating: IP65
• Operating Temperature: -40°C to +53°C (-40°F to 127.4°F)
INTENDED USE / APPLICATIONS
• Residential and commercial video intercom systems
• Remote visitor communication and door release control
• Multi-station access control integration
• Mobile monitoring through HikConnect-compatible systems
