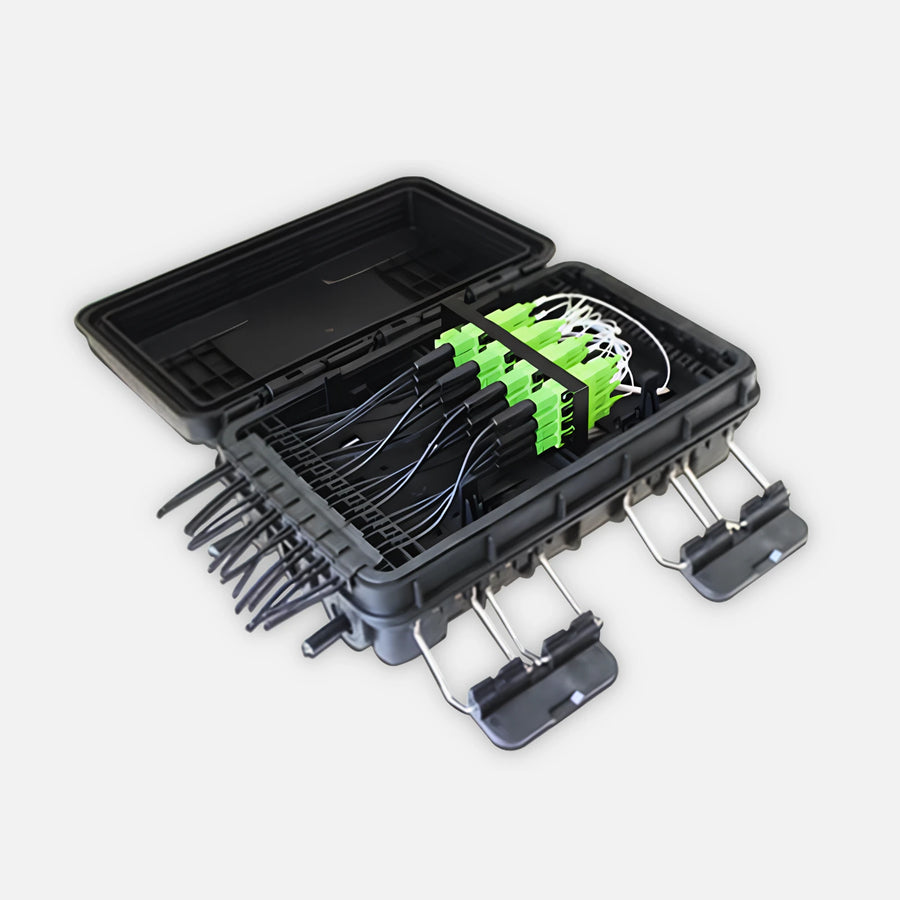

Epcom LP-FAB-HGT-16IN/AS8 FTTH Fiber Termination Box 16-Port IP65 SC/APC

PRODUCT OVERVIEW

High-density FTTH fiber termination box designed for wall, pole, and aerial mounting applications. Supports fiber splitter management with integrated 1x8 splitter, SC/APC adapters, and IP65-rated weather-resistant enclosure.

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• 16-port FTTH fiber termination and distribution box
• Includes 1x8 PLC splitter
• Includes 8 SC/APC adapters
• IP65-rated enclosure for outdoor deployment
• Supports wall-mounted, pole-mounted, and aerial-mounted installation
• Constructed from impact-resistant plastic material
• Anti-ultraviolet, anti-impact, and waterproof design
• Flip-board structure with opening angle ≥180° for simplified cable management
• Fiber cable routing allows cable entry and exit without cutting cable
• Supports up to two 1x8 PLC splitter LGX modules or steel tube splitters
• Organized fusion and distribution areas reduce cable crossing

TECHNICAL SPECIFICATIONS

• Brand: LinkedPro
• Product Type: FTTH Fiber Termination Box
• Port Capacity: 16 Ports
• Adapter Type: SC/APC
• Included Adapters: 8 SC/APC Adapters
• Included Splitter: 1x8 PLC Splitter
• Protection Rating: IP65
• Material: Impact-Resistant Plastic
• Mounting Options: Wall, Pole, and Aerial Mount
• Dimensions (in): 11.2 x 6.9 x 4.3
• Dimensions (mm): 285 x 175 x 110
• Cable Diameter Support: Φ7-Φ18 mm
• Inlet Ports: 6 Total (3 per side)
• Inlet Port Sizes:

• Port 1: 6-9 mm
• Port 2: 9-12 mm
• Port 3: 12-15 mm
  • Outlet Ports: 16 Total
  • Supported Drop Cable Size: 2 x 3 mm
  • Maximum Split Ratio: 2 pcs 1x8 Steel Tube Splitter
  • Maximum Adapter Capacity: 16 pcs
  • Maximum Splice Tray Capacity: 1 pc
  • Maximum Fusion Splice Capacity: 24 Cores
  • Internal Component Dimensions: 52 x 9 x 8.1 mm

INTENDED USE / APPLICATIONS

• FTTH fiber distribution networks
• Outdoor fiber termination applications
• Fiber splitter management in limited-space installations
• Last-mile fiber optic deployments
