Epcom LP-SCDJH-0608 Suspension Clamp J Hook 6-8mm Pole Mount
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

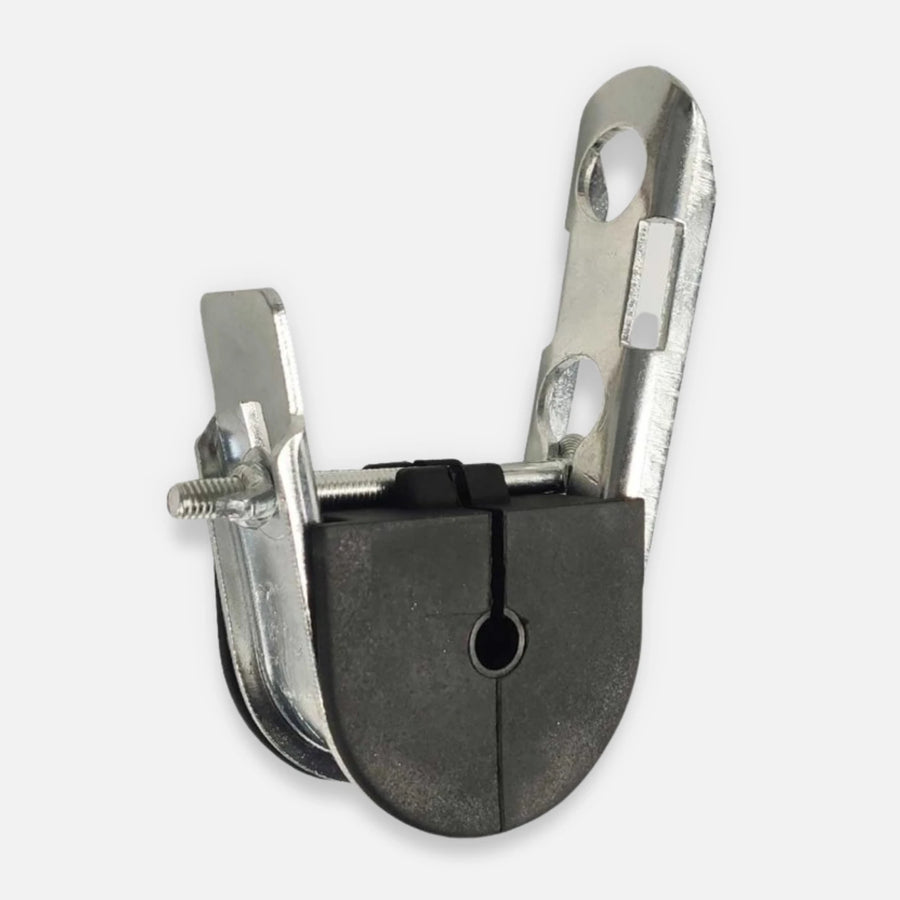

Suspension clamp with galvanized steel J-hook designed for securing 6-8 mm MiniADSS optical fiber cables on intermediate poles in access network deployments.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• Designed for MiniADSS optical fiber cable suspension
• Supports cable diameters from 6-8 mm
• Hot-dip galvanized steel J-hook construction
• Neoprene sleeve for cable protection
• Suitable for intermediate pole installations
• Compatible with routes having angles less than 20 degrees
• Supports span lengths up to 100 meters
• Tightening screw for secure cable suspension
• Pole mounting via pigtail bolt or pole bands
• Maximum break load rating of 4000 N
• Corrosion-resistant outdoor construction
TECHNICAL SPECIFICATIONS
• Model: LP-SCDJH-0608
• Brand: EPCOM
• Product Type: Suspension Clamp J Hook
• Compatible Cable Diameter: 6-8 mm
• Applicable Cable Size Range: Ø6 – Ø8 mm
• Maximum Span: Up to 100 m
• Maximum Break Load: 4000 N
• Mounting Type: Pole mount
• Installation Hardware Compatibility: Pigtail bolt or two pole bands
• Material: Hot-dip galvanized steel with neoprene sleeve
• Tolerance: ±5% for all dimensions
INTENDED USE / APPLICATIONS
• Fiber optic access network installations
• MiniADSS cable suspension
• Intermediate pole fiber deployments
• Outdoor telecommunications infrastructure
