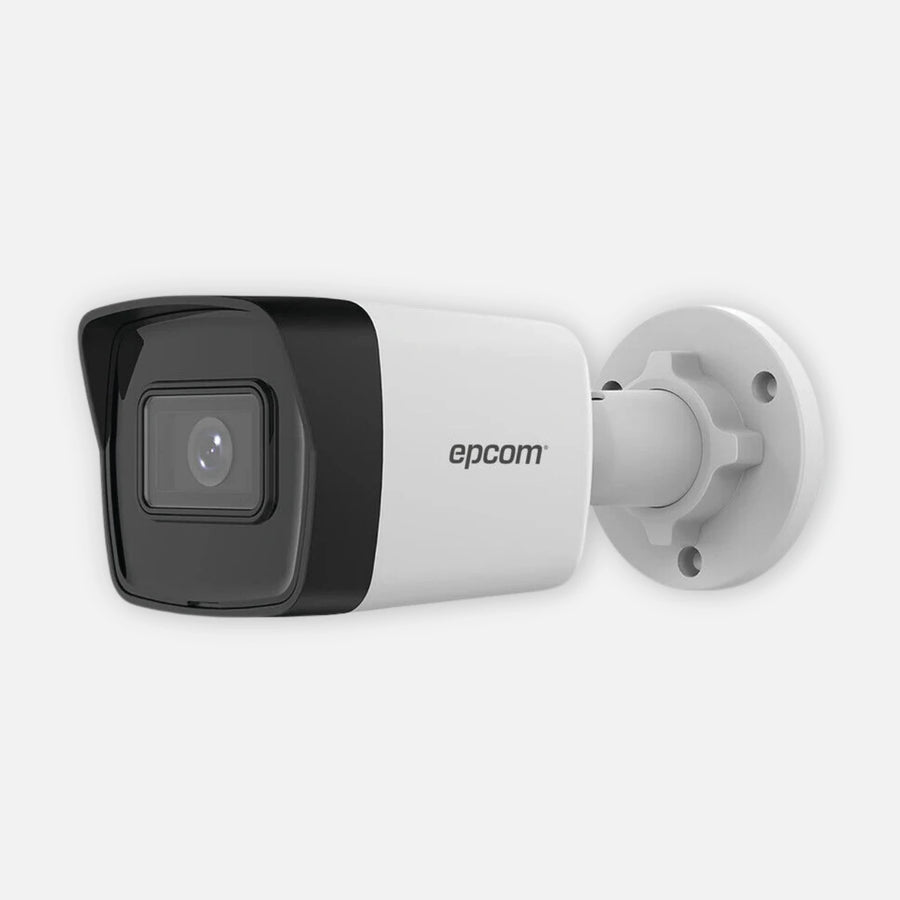

Epcom XB-14SL 4MP IP Bullet Camera 2.8mm EXIR 2.0 IR 30m IP67

PRODUCT OVERVIEW

Epcom XB-14SL 4MP IP bullet camera featuring AcuSense human and vehicle filtering, H.265+ compression, EXIR 2.0 infrared illumination, and IP67-rated outdoor protection.

PRODUCT TYPE

IP Camera

KEY FEATURES

• 4 Megapixel IP bullet camera
• Maximum resolution up to 2560 × 1440
• 2.8 mm fixed lens with 99° viewing angle
• EXIR 2.0 infrared illumination up to 30 meters
• H.265+ and H.264+ video compression support
• AcuSense human and vehicle motion filtering
• True Day/Night functionality with ICR filter
• 120 dB WDR support
• D3DNR digital noise reduction
• IP67 weather-resistant outdoor housing
• PoE 802.3af support
• ONVIF Profile S and ISAPI compatibility
• Supports Hik-Connect platform

TECHNICAL SPECIFICATIONS

• Brand: Epcom
• Model: XB-14SL
• Product Type: IP bullet camera
• Image Sensor Resolution: 4 Megapixel
• Maximum Resolution: 2560 × 1440
• Lens Type: Fixed
• Lens Size: 2.8 mm
• Viewing Angle: 99°

• Minimum Illumination:

• Color: 0.01 Lux @ F2.0 (AGC ON)
• Black and White: 0 Lux with IR

• Day/Night Mode: True Day/Night with ICR filter
• Infrared Distance: Up to 30 m
• Infrared Technology: EXIR 2.0

• Video Compression:

• H.265+
• H.265
• H.264+
• H.264

• Standard Functions:

• WDR 120 dB
• D3DNR
• BLC

• Main Stream:

• 20 fps at 2560 × 1440
• 24 fps at 1920 × 1080
• 24 fps at 1280 × 720

• Sub Stream:

• 24 fps at 1280 × 720
• 24 fps at 640 × 480
• 24 fps at 640 × 360

• Simultaneous Users Supported: 6

• Network Interface:

• 1 × 10/100 Mbps Ethernet Port
• PoE 802.3af Support

• Alarm Input: None
• Alarm Output: None
• Audio Input: None
• Audio Output: None

• Network Protocol Support:

• ONVIF Profile S
• ISAPI

• Power Supply:

• 12 VDC
• PoE 802.3af

• Maximum Power Consumption: 6.5 W
• Operating Temperature: -30°C to 60°C
• Maximum Humidity: 95%
• Weather Protection Rating: IP67

• Dimensions:

• 170.8 × 66 × 69.1 mm
• 6.7 × 2.6 × 2.7 in

• Weight: 270 g (0.6 lb)

• Optional Accessories:

• DS-1280ZJ-XS-AX Junction Box
• DS-1280ZJ-XS-BAX Junction Box
• DS-1280-ZJ-XS-P Junction Box

INTENDED USE / APPLICATIONS

Designed for indoor and outdoor IP video surveillance applications requiring human and vehicle motion filtering, infrared night vision, and network-based remote monitoring.
