EPCOM

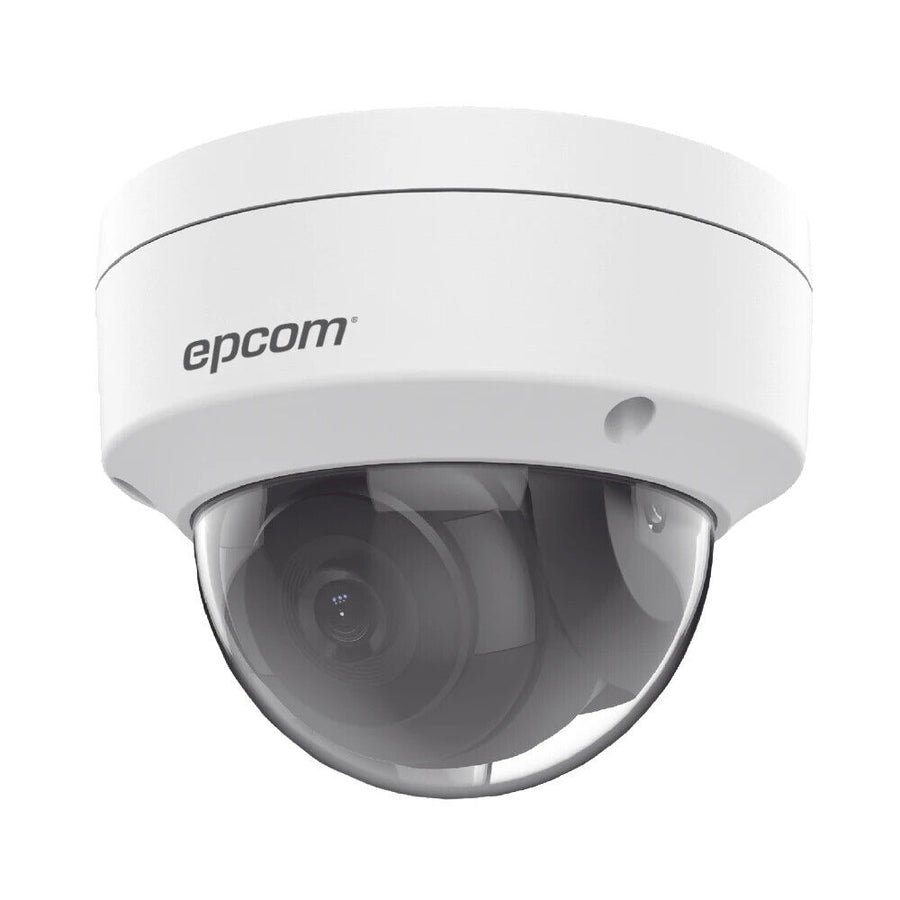

Epcom XD24S 4MP IP Dome Camera 2.8mm H.265+ PoE IP67
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Professional 4MP IP dome camera featuring Smart IR, 120 dB WDR, PoE support, advanced video analytics, and IK10/IP67-rated housing for indoor and outdoor surveillance applications.
PRODUCT TYPE
IP Camera
KEY FEATURES
• Maximum resolution of 4 Megapixel (2688 × 1520)
• 2.8 mm fixed lens with 103° viewing angle
• Smart IR illumination up to 30 meters
• Ultra low illumination performance
• True Day/Night operation with ICR filter
• WDR 120 dB image optimization
• Supports H.265+ and H.264+ compression
• Integrated false alarm filtering analytics
• Face detection and line crossing detection
• Human and vehicle motion detection support
• Audio and alarm input/output interfaces
• Supports microSD storage up to 256 GB
• ONVIF Profile S and Profile G compatible
• Outdoor-rated IP67 housing
• IK10 vandal-resistant design
• Compatible with Hik-Connect platform
TECHNICAL SPECIFICATIONS
• Camera Type: IP Dome Camera
• Maximum Resolution: 4 Megapixel (2688 × 1520)
• Lens: 2.8 mm fixed
• Viewing Angle: 103°
• Minimum Illumination: 0.005 Lux (F1.6, AGC ON)
• Day/Night Mode: True Day/Night (ICR)
• IR Distance: Up to 30 m Smart IR
• Video Compression: H.265+, H.265, H.264+, H.264
• Image Functions: WDR 120 dB, ROI, 3D DNR, BLC, HLC
• Video Analytics: Face Detection, Line Crossing Detection
• Motion Detection: Human and Vehicle Detection Filtering
• Audio Inputs: 1
• Audio Outputs: 1
• Alarm Inputs: 1
• Alarm Outputs: 1
• Network Interface: 1 × 10/100 Mbps Ethernet with PoE 802.3af
• Local Storage: microSD up to 256 GB
• ANR Support: Yes
• Protocol Support: ONVIF Profile S, Profile G, ISAPI, SDK
• Power Input: 12 VDC / PoE 802.3af
• Power Consumption: 6.5 W
• Operating Temperature: -30°C to 60°C
• Maximum Humidity: 95% non-condensing
• Protection Rating: IP67
• Impact Protection: IK10
• Dimensions: 110.8 × 84.7 mm
• Weight: 530 g
INTENDED USE / APPLICATIONS
• Indoor and outdoor video surveillance
• Commercial and institutional security deployments
• Human and vehicle motion monitoring
• Vandal-resistant surveillance installations
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
