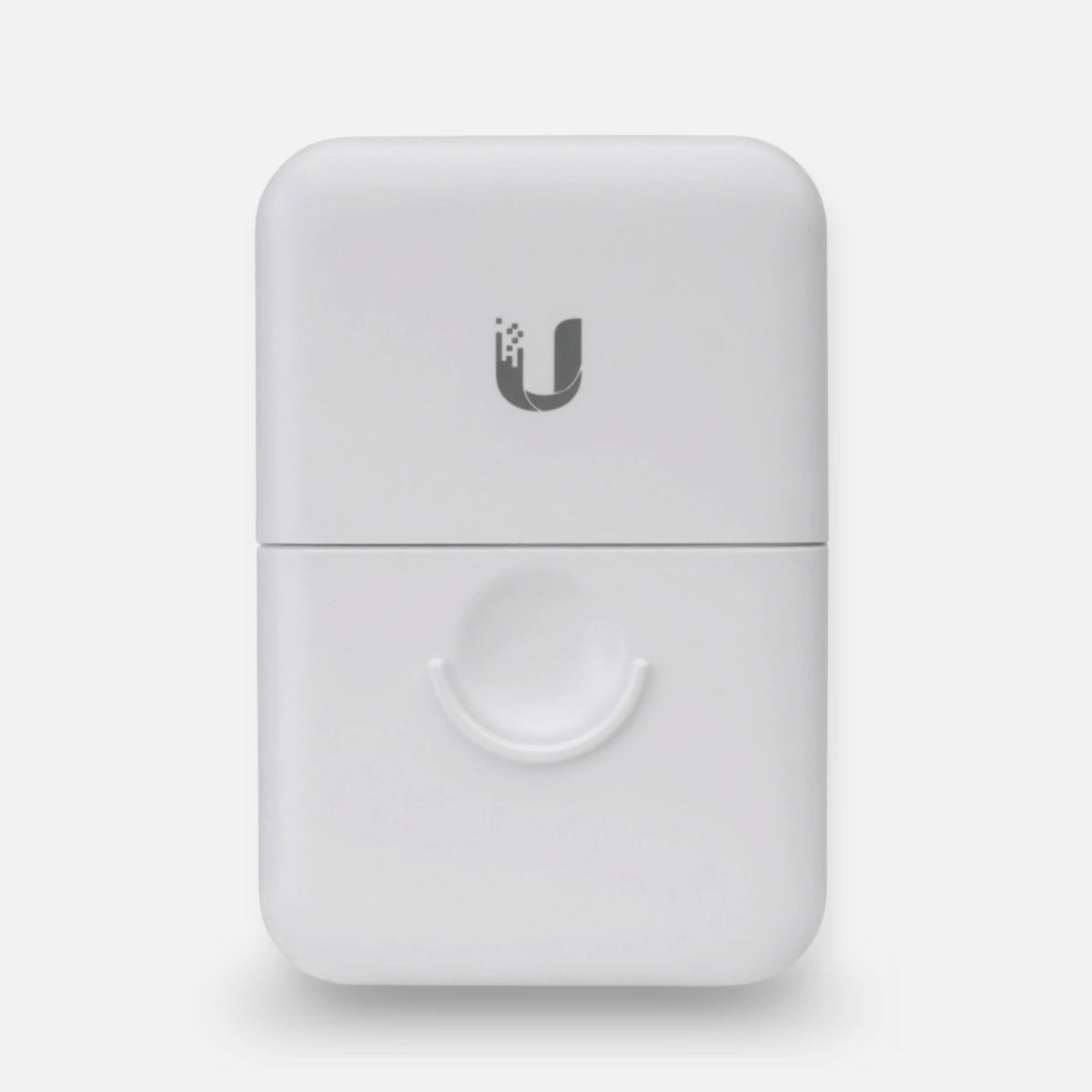

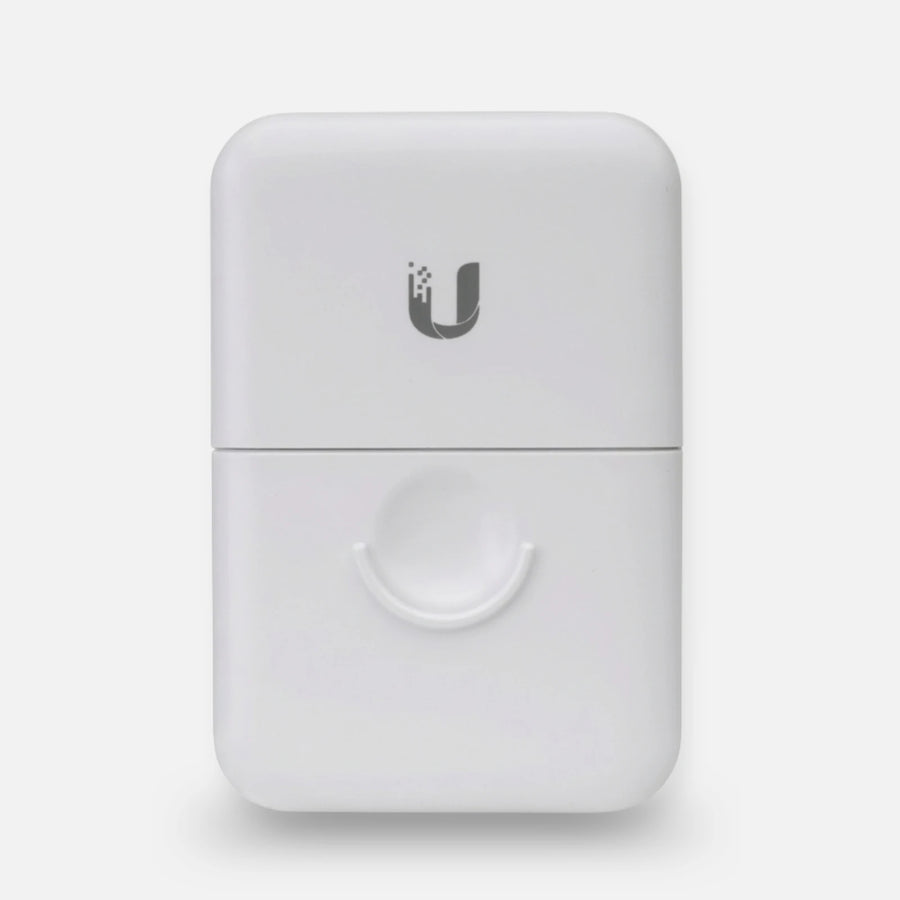

Ubiquiti ETH-SP-G2 Ethernet surge protector Gen2

The Ubiquiti ETH-SP-G2 is a second-generation outdoor Ethernet surge protector engineered to shield connected equipment from electrostatic discharge and transient surge events on both PoE and non-PoE data lines. With a 10 kA+ discharge current rating and a DC spark-over threshold of 90 V, the device absorbs transient energy across a wide response range—from 100 V/s up to 1 kV/µs—before it can reach sensitive switch ports, access points, or IP cameras. Two fully passive RJ45 female connectors pass data at rates up to 2.5 Gbps, ensuring the protector is transparent to modern GbE and 2.5 GbE deployments. The polycarbonate housing carries an IPX5 weatherproofing rating, making it a durable choice for pole- or wall-mounted outdoor installations. A grounding lug accepts a drain wire (up to 16 AWG, up to 40 cm) to establish a low-impedance path to earth, a critical element for effective surge dissipation in field-deployed wireless infrastructure.

Key features & benefits

• 10 kA+ Discharge Current Rating — Rated for discharge currents exceeding 10 kA, the ETH-SP-G2 handles high-energy transient events common in exposed outdoor environments, significantly reducing the risk of damage to downstream electronics.
• Broad Surge Response Range — ESD protection is active across surge voltages from 100 V/s to 1 kV/µs, with a DC spark-over voltage of 90 V and a maximum impulse spark-over voltage of 700 V, ensuring protection against both slow and fast transient events.
• 2.5 Gbps Data Line Passthrough — Two passive RJ45 female connectors support data line protection up to 2.5 Gbps, making the ETH-SP-G2 fully compatible with 1 GbE and 2.5 GbE network infrastructure without introducing a speed bottleneck.
• PoE Pass-Through Support — The device passes Power over Ethernet without modification, allowing seamless in-line deployment between a PoE switch or injector and any powered device such as an access point, IP camera, or outdoor radio.
• IPX5 Weatherproof Polycarbonate Enclosure — The rugged polycarbonate housing is rated IPX5 for water resistance, making the ETH-SP-G2 suitable for permanent outdoor mounting on poles or walls in demanding weather conditions.
• Ultra-Low Capacitance (1.0 pF @ 1 MHz) — With maximum capacitance of just 1.0 pF at 1 MHz, the protection circuitry introduces negligible signal loading, preserving signal integrity across high-speed data lines.
• High Insulation Resistance — Maximum insulation resistance of 1 GΩ at 50 V ensures the device does not create leakage paths that could compromise network isolation or PoE power delivery.
• Flexible Mounting Options — Supports both pole mounting (4.5 mm drill bit required) and wall mounting (screws ≤5 mm screw head, M5 machine screw and nut), with an optional grounding drain wire up to 16 AWG and up to 40 cm in length for a proper earth bond.
