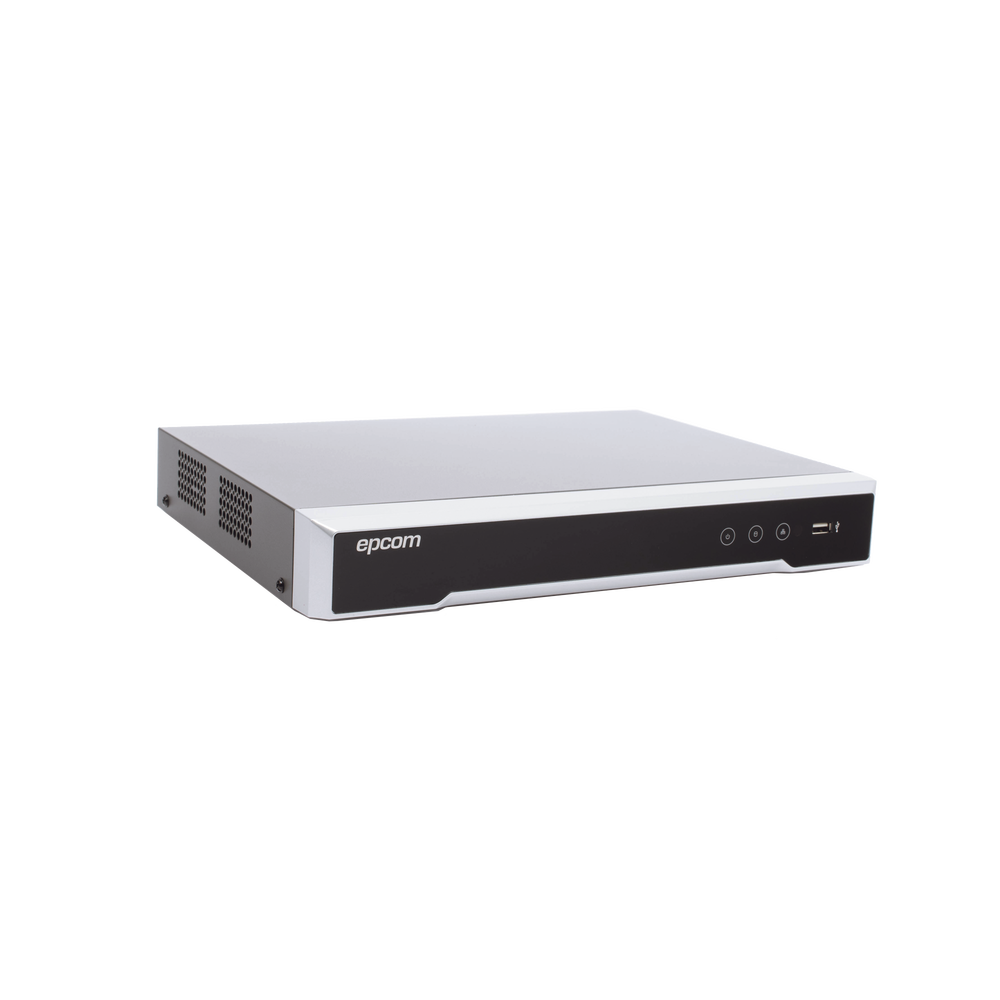

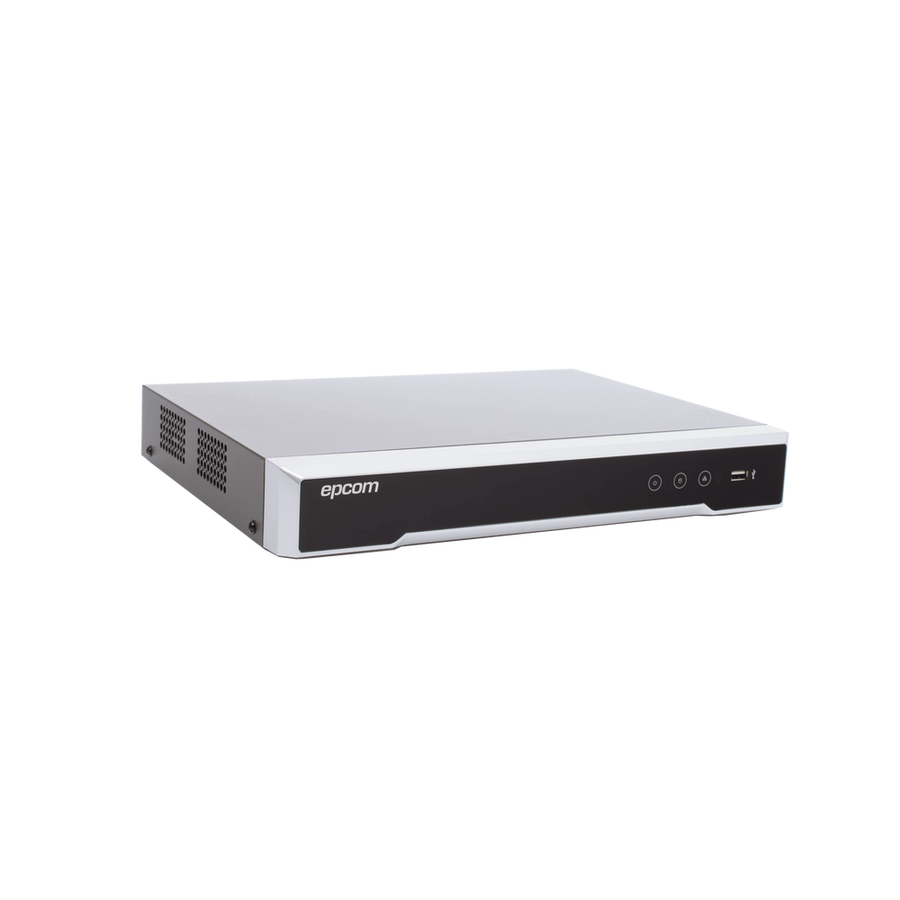

Epcom EV-8008TURBO-D(C) 5-in-1 Hybrid NVR 16-Channel 8MP H.265+
Product identifier
SKU
EV-8008TURBO-D(C)
$218.41
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Main Features:
- It allows you to turn off analog TURBOHD channels and be able to place IP cameras on all your channels, we can place up to 16 IP cameras in total. An additional IP channel is generated for each TURBOHD analog channel that is turned off.
- PENTAHÍBRIDO recorder: HD-TVI / HD-CVI / Analog / IP / AHD.
- Multi-site client software with up to 64 channels (iVMS-4200).
- Compatible with Hik-Connect P2P / DynDNS / No-IP.
- Advanced Functions: Line crossing detection & intrusion detection.
Compression and resolution:
- Compression: H.265+ / H.265 / H.264+ / H.264.
- Supports 8 channels TURBOHD / analogs + 8 IP channel = 16 total channels.
- HD-TVI: 8 MP @ 8fps / 5 MP @ 12fps / 4 MP @ 15fps / 3 MP @ 18fps / 1080p / 720p.
- CVI: 5 Megapixel / 4 Megapixel / 1080p / 720p.
- ANALOG (CVBS): 1200 TVL.
- AHD: 5 Megapixel / 4 Megapixel / 1080p / 720p.
- IP: 8 Megapixel.
Physical and Electrica Characteristics:
- Power supply: 12 Vdc (includes power source 4-pins)
- Consumption without HDD: 15 watts.
- Operating temperature: -10 ºC up to 55 ºC
- Dimensions: 315 × 242 × 45 mm (W × D × H)
- Weight: 2 Kg without HDD.
- Does not include hard drive
Recording and Visualization Functions:
- Multi-zone motion detection.
- Zoom digital in visualization and recording.
- Supports multiple types of recording, including real-time, manual recording.
- Intelligent search for recordings by motion detection.
- SDK and demo codes are provided to decrease application development time.
- Recording with automatic overwriting.
Inputs / Outputs Interfaces:
- HDMI / VGA video output: 1920×1080, 1280×1024, 1280×720, 1024×768.
- BNC video output: 1 Canal (BNC, 1.0Vp-p, 75Ω), resolución máxima: 704 x 480.
- HDMI and VGA: simultaneous output.
- 16 alarm inputs / 4 alarm outputs.
- Supports audio on all its channels by coaxitron using cameras with integrated audio.
- Input audio: 4 (RCA, 2.0 Vp-p, 1KΩ).
- Output audio: 1 (RCA, 2.0 Vp-p, 1KΩ).
- Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).
- USB interface: 1 puerto USB 2.0, 1 puerto USB 3.0
- Network interface: 1 port (RJ-45 10/100/1000 Mbps).
- Capacity HDD: 1 @ 10 TB.
Key Features
- Hybrid Design Supports Both TurboHD Analog and IP Cameras Simultaneously
- Acusense AI Detection With 95% Accuracy for Humans and Vehicles
- H.265+ Compression Reduces Storage Requirements by up to 80%
- Coaxitron Audio Transmission Through All Video Channels
- 4K HDMI Output at 3840x2160 Resolution With Simultaneous VGA
- Supports up to 16 Total IP Cameras With Flexible Channel Configuration
