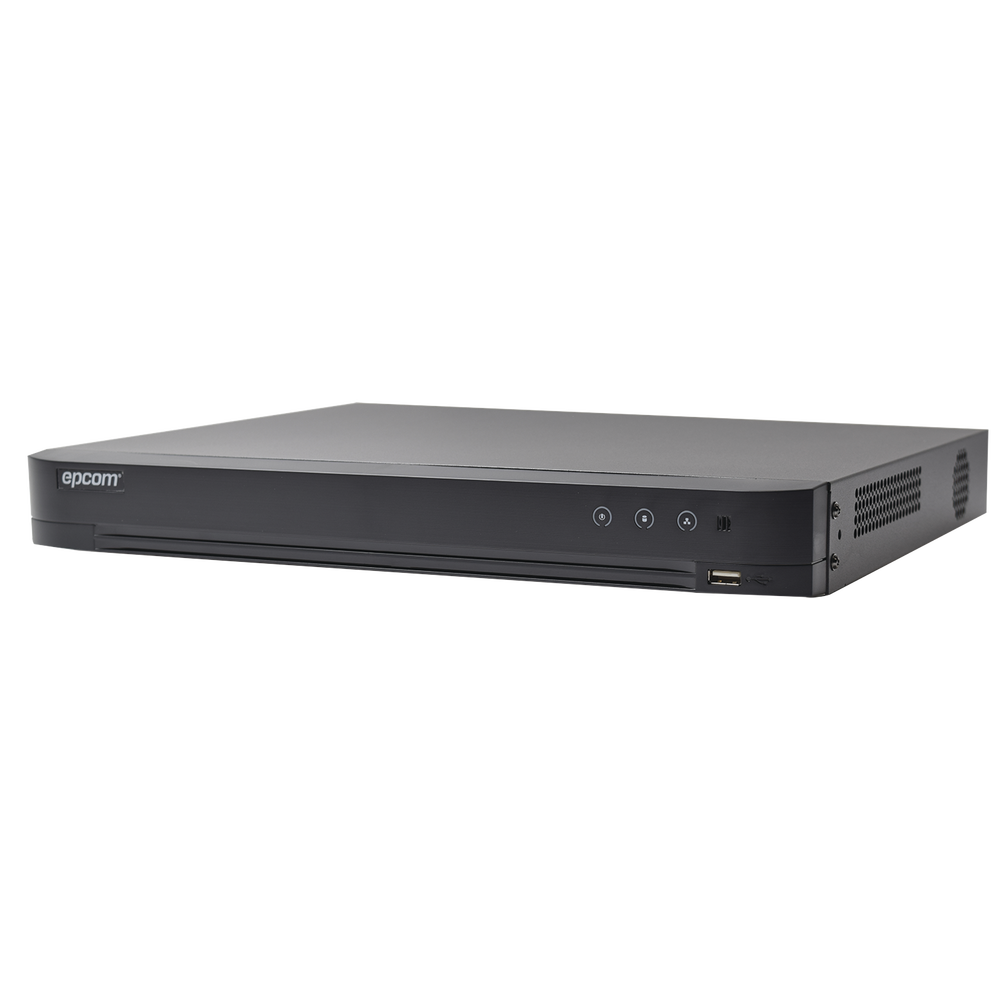

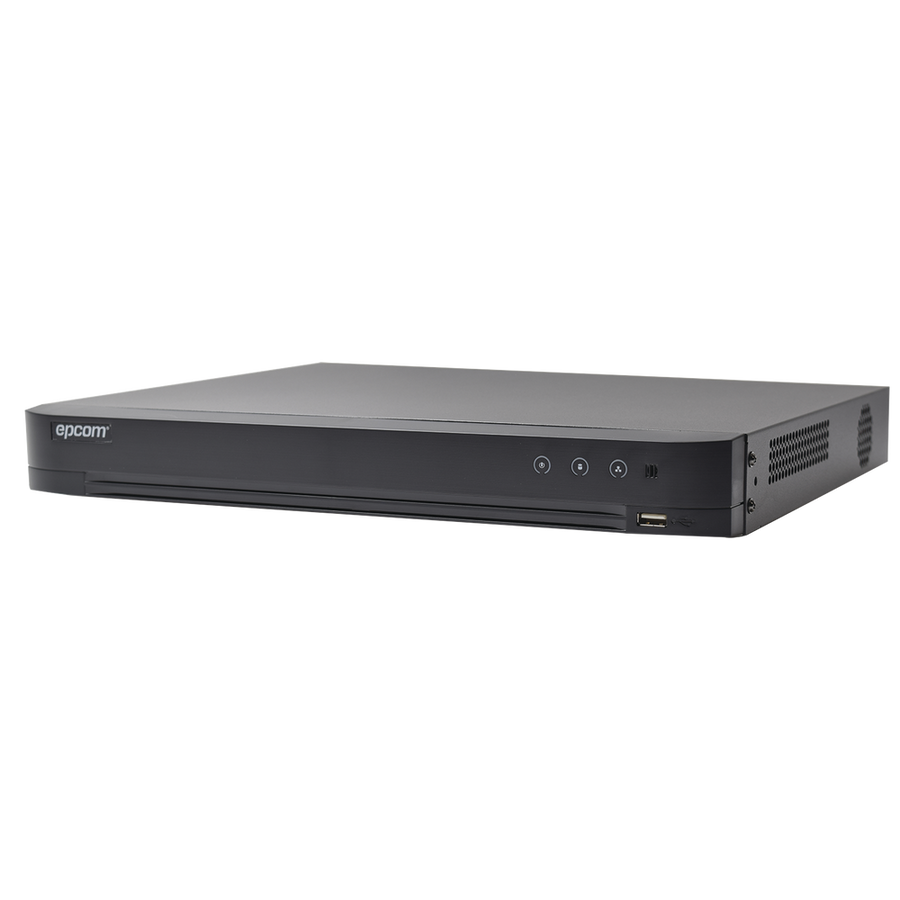

Epcom EV4004-TURBO-X 4MP Pentahybrid DVR 4-in-1 TVI/CVI/AHD/IP
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Important Note:
Thanks to the new updates (improvements) now the DVR allows to accept 4 Megapixel TURBOHD cameras that originally were dedicated to supporting 3 Megapixel, the DVR will be able to record at 4 Megapixel Lite, which means that it is a signal coupling that allows accepting 4 Megapixel cameras Megapixel TURBOHD with Lite recording
- 4 Megapixel Real = 2560 X 1440.
- 4 Megapixel Lite = 1280 X 1440.
- It allows us to turn off TURBOHD analog channels and to be able to place IP cameras on all its channels, we can place up to 6 IP cameras in total. For each TURBOHD analog channel that is turned off, an additional IP channel is generated.
- PENTAHYBRID Recorder: HD-TVI / HD-CVI / Analog / IP
- Multi-site client software (iVMS-4200).
- Compatible with Hik-Connect P2P / DynDNS / No-IP.
- Advanced Features: Line crossing detection & intrusion detection.
Compression and resolution:
- Compression: H.265+ / H.265 / H.264+ / H.264.
- Support 4 channels TURBOHD / analog + 2 IP channels = 6 channels in total.
- HD-TVI: 4 Megapixel Lite / 3 Megapixel / 1080p / 720p.
- Note: It accepts 4MP, 2MP and 1MP cameras on all its BNC channels (3MP cameras only on channel 1).
- CVI:4 Megapixel Lite / 3 Megapixel / 1080p / 720p.
- ANALOG (CVBS): 1200 TVL.
- AHD: 4 Megapixel Lite / 3 Megapixel / 1080p / 720p.
- IP: 6 Megapixel.
Physical and Electrical Characteristics:
- Power Supply: 12 VDC (power supply includes 4 pins)
- Consumption without HDD: 6 watts.
- Operating temperature: -10 ºC up to 55 ºC
- Dimensions: 315 × 242 × 45 mm (W × D × H)
- Weight: 1.16 Kg sin HDD.
- HDD is not included.
-
Recording and viewing functions:
- Multi-zone motion detection.
- Digital zoom in viewing and recording.
- Support multiple types of recording, including real-time, manual recording.
- Smart search of recordings by motion detection.
- Automatic Overwrite Recording.
Input / Output Interfaces:
- Video output in HDMI / VGA: 1920×1080, 1280×1024, 1280×720, 1024×768.
- Video output in BNC: 1 Channel (BNC, 1.0Vp-p, 75Ω), maximum resolution: 704 x 480.
- HDMI y VGA: simultaneous output.
- It supports audio in all its channels by coaxitron using cameras with integrated audio.
- Audio input: 1 (RCA, 2.0 Vp-p, 1KΩ).
- Audio output: 1 (RCA, 2.0 Vp-p, 1KΩ).
- Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).
- USB interface: 2 ports (2.0).
- Network interface: 1 port (RJ-45 10/100 Mbps).
- HDD capacity: 1 @ 10 TB.
What is H.265+?
H.265+ is the compression method for DVR´s, NVR´s and IP Cameras, it allows for saving up to 80% of storage and bandwidth
Key Features
- Hybrid Support for TurboHD, CVI, AHD, Analog, and IP Camera Technologies
- H.265+ Compression Reduces Storage Requirements by up to 80%
- Advanced Video Analytics With Motion and Line Crossing Detection
- Simultaneous HDMI and VGA Output at 1920x1080 Resolution
- Multi-Site Client Software Supports up to 64 Channels Remotely
- Operates From -14°F to 131°F With Low 6W Power Consumption
