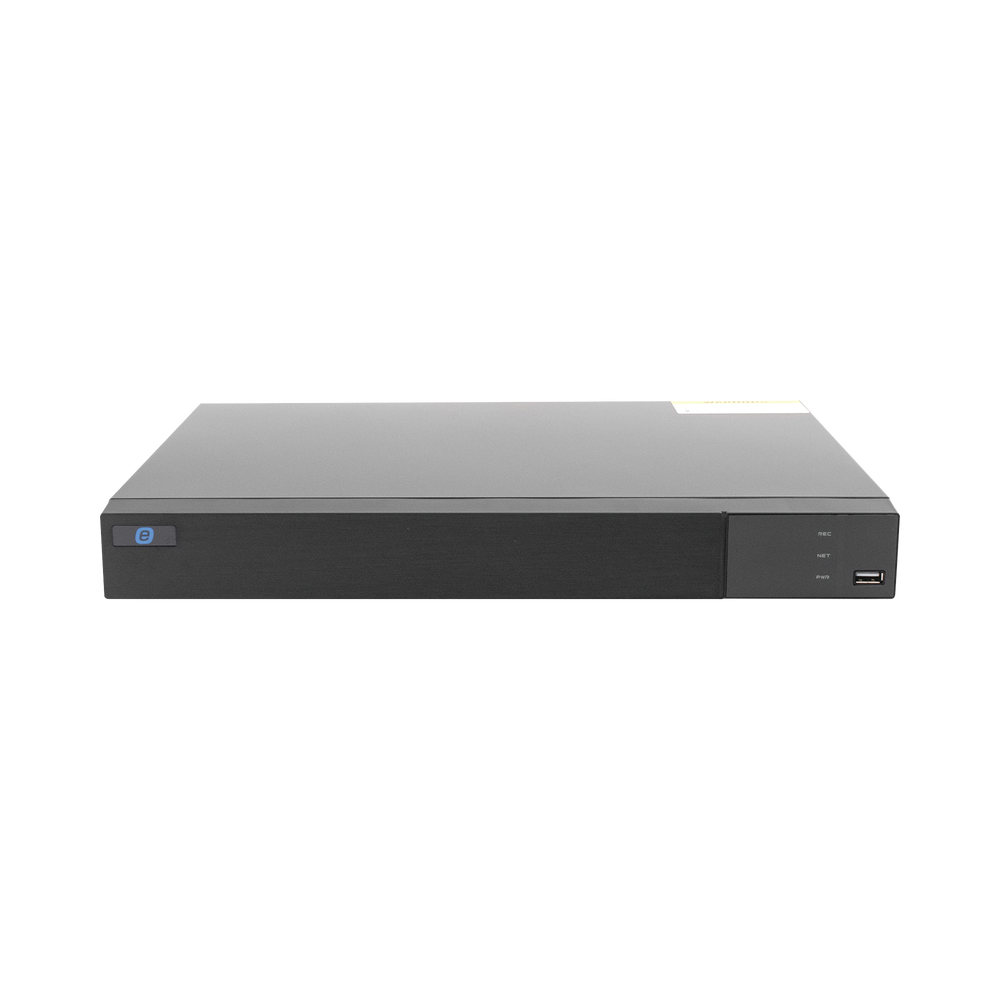

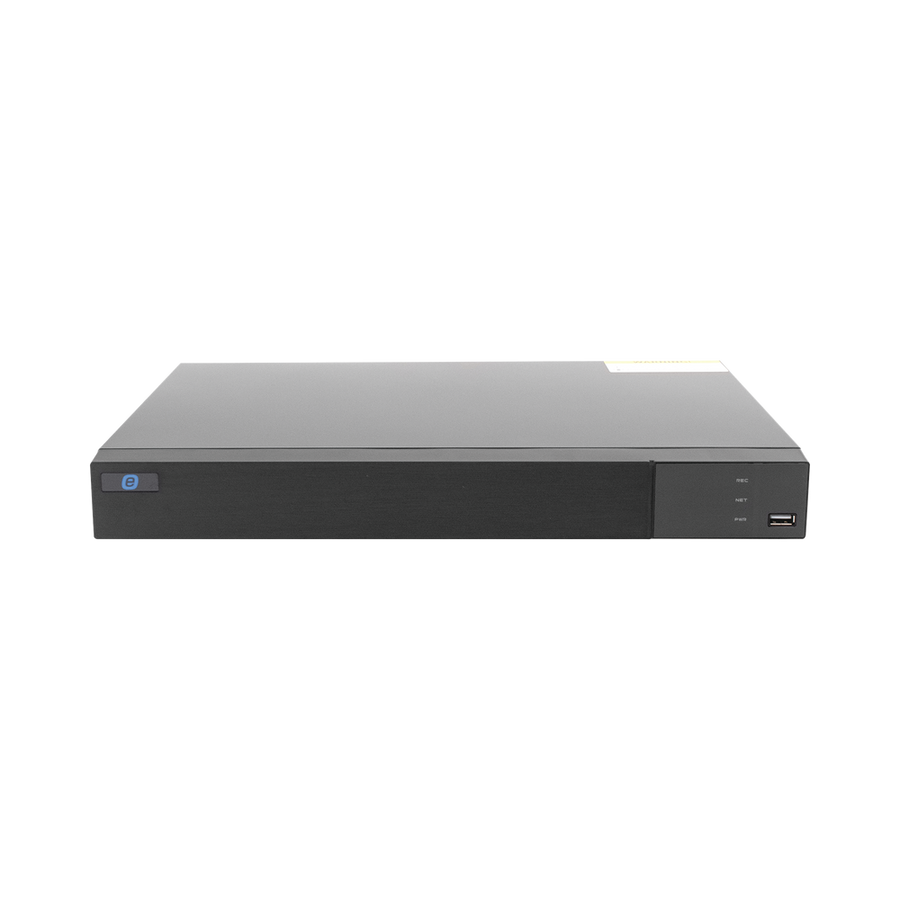

Epcom EV4032-TURBO-GEN3 40-Channel 5MP 4-in-1 NVR H.265 4 SATA
Product identifier
SKU
EV4032-TURBO-GEN3
$550.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Features:
- Support 5 technologies TVI / CVI / AHD / CVBS / IP
- Support 32 channels TURBOHD / analog + 8 channels IP = 40 channels in total.
- The DVR supports turning off analog channels and converting them to IP. Up to 24 IP channels
- 16 Audio Input / 1 Audio Output (RCA connector).
- Support compresion H.265 / H.264.
- Capacity for 4 SATA up to 10 TB per HDD.
- Support audio by coaxitron.
- Multi-mode recording: manual / motion /smart event
- Supports cloud recording with EpcomCloud (Licenses) (Starting 2023)
- For cloud recording, it is necessary (ADAPTERCLOUD-08)
- Supports 16ch with motion detection by humans or vehicles.
- Supports 1ch with line crossing or intrusion by humans or vehicles.
- NDAA certified
Resolutions:
- TVI / AHD / CVI: 5MP / 4MP / 1080p / 720p
- CVBS: WD1
- IP: 5 Megapixel
Maximum Compatibility:
Physical and Electrical Characteristics:
- Power Supply: 100 - 240 VAC (Included)
- Power Consumption: ≤ 30W (without HDD)
- Working Environment: - 10 °C ~ 50 °C, 10 % ~ 90 % (humidity)
- Dimensions (W x D x H): 17.32" x 15.35" x 2.75" (440 mm x 390 mm x 70 mm)
- Supports rack mounting (included).
For software and management tools click here.
Compatible with the app SuperLive Plus available for iOS and Android.
Not compatible with Hik-Connect/IVMS4200
Key Features
- Supports 5 Video Technologies: TVI, CVI, AHD, CVBS, and IP
- H.265 Compression for up to 80% Storage Efficiency
- 4 Hard Drive Bays Supporting up to 10 TB Each
- 16 Channel Audio Input With Coaxitron Audio Technology
- Cloud Recording Capability With EpcomCloud Platform
- Rack Mount Compatible With Included Mounting Hardware
