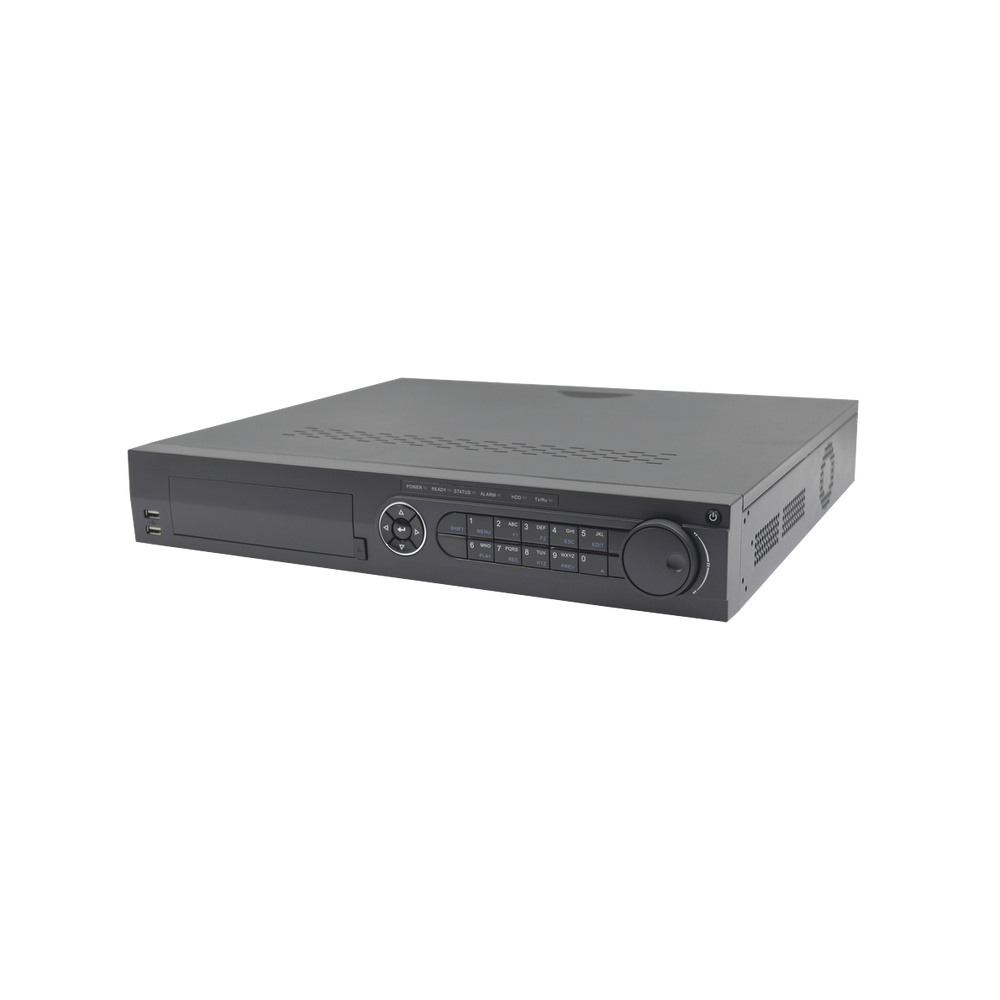

Epcom EV5008TURBO(US) 8MP 4-in-1 DVR/NVR 8CH Turbo HD + 4CH IP H.265+

Main features

• Support all channels in 8 MP @ 8 fps / 5 MP @ 12 fps.
• Turbo HD 4.0 series
• Recording support 5 technologies: HD-TVI, HD-CVI, Analogic, IP y AHD
• The DVR allows to turn off analog channels TURBOHD and to be able to place IP cameras in all its channels, we can place up to 12 IP cameras in total. For each TURBOHD analog channel that is switched off, an additional IP channel is generated.
• Remote access: PC (WINDOWS / MAC), Smart Phone (iPhone, iPad, Android).
• Compatibility with Internet Explorer.
• Software multi-site up to 64 Ch (iVMS-4200).
• Support Hik-Connect P2P.
• Support IP SERVER (EhubAmerica DDNS), DDNS Hikvision and DynDNS.
• Firmware upgrade remotely.
• Advanced functions: Cross line detection, Intrusion detection.

Compression and resolution:

• Compression: H.265+ / H.265/ H.264+ / H.264.
• Support 8 ch TURBOHD / analogics + 4 channels IP = 12 channels in total.
• HD-TVI: 8 MP @ 8 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps / 1080p / 720p @ 30 IPS.
• CVI: 4 MP @ 15 IPS / 1080p @ 30 IPS
• ANALÓGIC (CVBS): 1200 TVL @ 30 IPS.
• AHD: 4 MP @ 15 IPS / 1080p @ 30 IPS.
• IP: 8 MP @ 10 IPS.
• Audio: G.711.
• Audio bit rate: 64 Kbps.
• Video bit rate: 32 Kbps - 10 Mbps.

Recording and live view functions:

• Multi-zone motion detection.
• Digital zoom in live view and recordings.
• Supports many types of recordings including real-time, manual, event, and motion recording.
• Smart search of recordings for motion detection.
• SDK for your development.
• Overwrite recording automatically.
• Mainstream: 8 MP / 5MP / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF.
• Substream: WD1 / 4CIF / VGA / CIF.

Input / output interfaces:

• Video in: 8 ch (BNC, 1.0Vp-p, 75Ω).
• Video output: HDMI / VGA: 1920×1080, 1280×1024, 1280×720, 1024×768.
• BNC: 1 Canal (BNC, 1.0Vp-p, 75Ω), Maximum resolution: 704 x 480.

HDMI and VGA: simultaneous output.

• Audio in: 4 (RCA, 2.0 Vp-p, 1KΩ).
• Audio out: 1 (RCA, 2.0 Vp-p, 1KΩ).
• Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).
• USB Interface: 2 ports (2.0).
• Network Interface: 1 port (RJ-45 10/100 Mbps).
• HDD capacity: 1 Slot up to 8TB.

Network functions:

• Protocols: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Standards: ONVIF (Profile S, G).
• Support double streaming.

Physical and Electrical Characteristics:

• Power supply: 12 VDC (Included)
• Power consumption: 20 watts (without HDD).
• Working temperature: 14ºF to 131ºF (-10 ºC to 55 ºC)
• Dimensions: 12.4" x 9.5" x 1.7" (315 × 242 × 45 mm) (W × D × H)
• Weight: 4.4 lbs (2 Kg) without HDD.

Key Features

• TurboHD 4.0 Technology for Superior 8MP Resolution
• Hybrid Support for Analog and IP Camera Systems
• H.265+ Compression Reduces Storage Requirements by 80%
• Simultaneous 4K HDMI and VGA Video Outputs
• Advanced Video Analytics With Line Crossing Detection
• Remote Access via PC, Smartphone, and Hik-Connect
