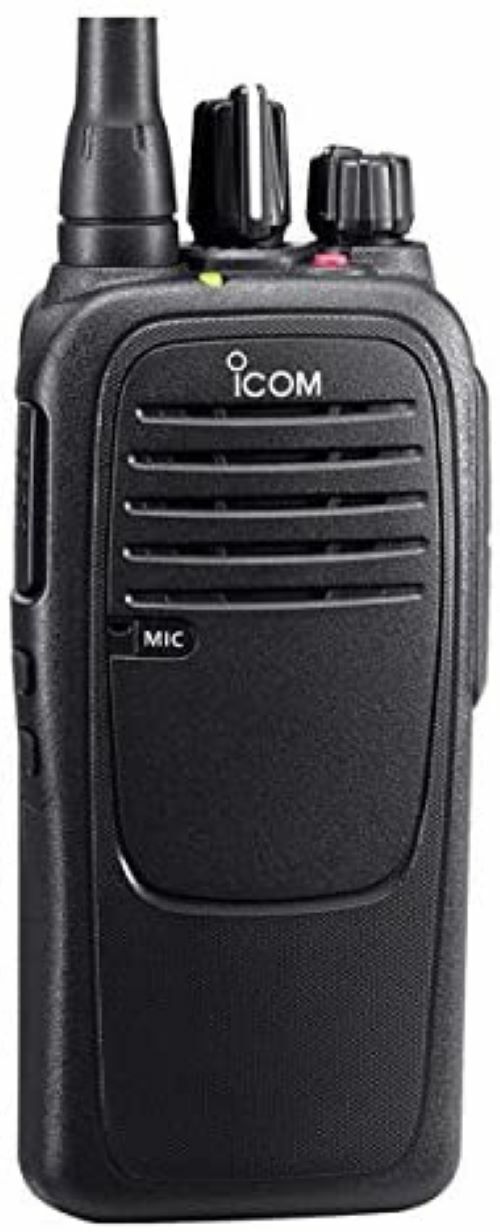

Icom F1100D IDAS Digital VHF 5 watt 16 Channel 136-174 MHz Two Way Radio

Icom F1100D IDAS Digital VHF 5 watt 16 Channel 136-174 MHz Two Way Radio

$309.48
$309.48
Sale Sold out
Taxes included. Shipping calculated at checkout.

20 in stock
Download PDF

Tags: Icom, Portable radio vhf

View full details



General

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Frequency coverage*
(*Varies according to version)		 136–174 MHz (NXDN/dPMR) 350–400 MHz (NXDN, EXP, IC-F2100D only)
400–470 MHz (NXDN/dPMR USA/EUR/EXP)
450–512 MHz (NXDN, USA)
450–520 MHz (NXDN, EXP)
Number of channels

128 channels/ 8 zones

 16 channels 128 channels/ 8 zones 16 channels
Type of emission*
(*Depending onversion)

11K0F3E, 4K00F1E, 4K00F1D (USA)

16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)

16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)
Power supply requirement

7.5V DC nominal
Current drain
(approx.)		 Tx

1.3A

1.6 A (at 5 W)
1.4 A (at 4 W)
Rx

520 mA /110 mA
(Max. audio (internal SP)/Standby)

520 mA /110 mA
(Max. audio (internal SP)/Standby)
Antenna impedance

50Ω
Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)

–25°C to +55°C (Radio specification) (EUR)
Dimensions
(W × H × D; Projections not included)

IC-F1100DS/D, IC-F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)

IC-F1100DT, IC-F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)
Weight (approx.)

IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133)
IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133)
IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)

Transmitter

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Output power
(Hi, L2, L1)

5 W, 2 W, 1 W

5 W, 2 W, 1 W
Maximum frequency deviation

± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
Spurious emissions

70 dB minimum (USA/EXP)

0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)
Frequency stability

±2.0ppm

±1.0ppm
Audio harmonic distortion

0.8% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)

0.7% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)
FM Hum and Noise
(without CCITT filter)

46 dB typ. (25 kHz) (EXP),
44 dB typ. (12.5 kHz) (USA/EXP)

44 dB typical (12.5 kHz) (USA)
Residual modulations
(with CCITT filter)

51 dB typical (25 kHz),
49 dB typical (20 kHz),
45 dB typical (12.5 kHz) (EUR/EXP)

54 dB typical (25 kHz),
52 dB typical (20 kHz),
48 dB typical (12.5 kHz) (EUR/EXP)
FSK error

5% maximum
External microphone connector

3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ

Receiver

IC-F1100DT/S IC-F1100D IC-F2100DT/S IC-F2100D
Sensitivity Analog (at 12dB SINAD)

0.24 μV typical

0.24 μV typical
Analog (at 20dB SINAD)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)
Digital (at 5% BER)

–9 dBμV typical emf
(0.18 μV typical)

–8 dBμV typical emf
(0.20 μV typical)
Adjacent channel selectivity

77 dB typ. (25 kHz),
75 dB typ. (20 kHz),
67 dB typ. (12.5 kHz),
59 dB typ. (digital)

76 dB typ. (25 kHz),
75 dB typ. (20 kHz),
69 dB typ. (12.5 kHz),
58 dB typ. (digital)
Spurious response rejection

80 dB typical
Intermodulation rejection Digital

71 dB typ. (USA/EXP),
74 dBμV emf typ. (EUR/EXP)

70 dB typ. (USA/EXP),
74 dBμV emf typ. (400–470 MHz, EUR/EXP)
Analog

76 dB typ. (25 kHz, EXP),
75 dB typ. (12.5 kHz, USA/EXP),
69 dB typ. (EUR/EXP)

77 dB typ. (25 kHz, EXP),
77 dB typ. (12.5 kHz, USA/EXP),
70 dB typ. (EUR/EXP)
Hum and noise (With CCITT filter)

48 dB typ. (25 kHz, EXP),
43 dB typ. (12.5 kHz, USA/EXP)

42 dB typical (12.5 kHz, USA)
(Without CCITT filter)

51 dB typ. (25 kHz),
49 dB typ. (20 kHz),
46 dB typ. (12.5 kHz)
(EUR/EXP)

50 dB typ. (25 kHz),
48 dB typ. (20 kHz),
45 dB typ. (12.5 kHz)
(EUR)
AF output power
(at 5% distortion 8Ω load)		 Internal SP

1500 mW typical
External SP

450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)

400 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)
External speaker connector

2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω


Compact, Waterproof, and Full of Useful Features

MDC-1200 | Manufacturing Quality System ISO 9001:2008 | 3-Year Warranty | SUBMERSIBLE IP67

Features:

  • 1500 mW of audio power
  • Channel announcer
  • Channel explorer (normal and priority)
  • Reading and writing password
  • Lock anti-read
  • Electronic Serial Number (ESN)
  • Submersible IP67 (1m for 30 min.)
  • Hands-free operation (vox in-build, req. audio accessories)
  • Operates in the spacing of 12.5kHz
  • Compact and ergonomic design
  • Man Down and Lone Worker programmable
  • Programmable by software CS-F2000D and OPC-478/U cable
  • GPS position capabilities (requires HM-171GPW)
  • 16 Channels
  • 5W of power

Features in Digital NXDN 6.25 kHz:

  • DIGITAL / ANALOG or MIXED operation
  • Digital Trunking Operation (30 Channels, 2000 ID)
  • PTT-ID in NXDN
  • Selective, group, and alert call
  • NXDN Digital encryption (32,767 codes)
  • Radio Kill
  • Stun / Revive
  • Sending and reception of text messages (ON/OFF message)
  • Voting Scan function
  • 63 codes of RAN access


MDC-1200 Signaling:

  • PTT ID
  • Emergency call
  • Radio Check
  • Stun / Revive


5-Tone Signaling:

  • PTT-ID
  • Selective call
  • Group call
  • Spy Radio
  • Emergency call
  • Radio Check
  • Radio Kill
  • Stun / Revive

DTMF Signaling:

  • PTT-ID
  • Emergency call


Includes:

  • Li-ion BP-280 Battery
  • Current adapter BC-123SA
  • FA-SC55V Antenna
  • MB-133 Clip
  • Cover accessories
  • Rapid Charger


-Dimensions:2.1 × 4.4 × 1.2 in

-Weight: 9.2 oz with BP-279 battery
