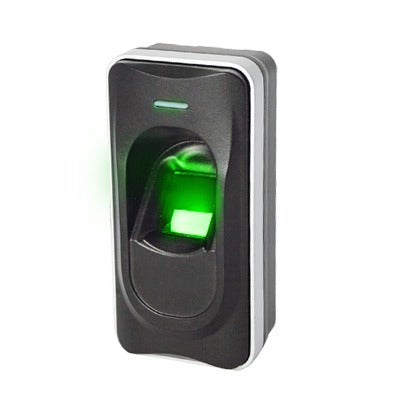

Zkteco F12 IP65 Fingerprint Proximity Card Reader RS485 Dual Verification

Features:
Reader for Access Panels:

• /
• INBIO260 / INBIO460
• INBIO160PRO / INBIO260PRO / INBIO460PRO

Slave Reader for Biometric Readers:

• F19
• XT5

Communication:
- RS485.

Hardware
- Anti-scratch Optical Fingerprint Sensor.
- Audio-Visual Indicator.
- Proximity Reader:
• Frequency 125Khz.

Special Features:
- For Outdoors/Indoors use.
- IP65 Protection Rating.
- Verification Methods may be combined:
• Card + Fingerprint

Power Supply:
- 12Vdc / 120mA in operation.
- Source Not Included.
- Can be energized with the Access Panel Source.

Additional Information:
- Operating Temperature: 0 - 45 °C.
- Dimensions: 50 x 102 x 37 mm.


Compatible Cards:
- AC5, AC7, ATR11, ATR14 & ATR261B0.

Softwares:
- Access Control: (basic functions)
- Access Control: (global functions)

Note:
This company only supports the software supplied with the equipment or provided by EhubAmerica as long as it uses the same database. Any other implementation to another software or database version becomes the responsibility of the integrator or developer in charge.

Key Features

• RS-485 Communication for Reliable and Fast Connection
• IP65 Weatherproof Rating for Indoor and Outdoor Use
• Scratch-Resistant Optical Fingerprint Sensor Technology
• Dual Verification With Card Plus Fingerprint Authentication
• Low Power Consumption at 12V DC and 120 mA
• Compact Design Measuring 2 x 4 x 1.5 Inches
