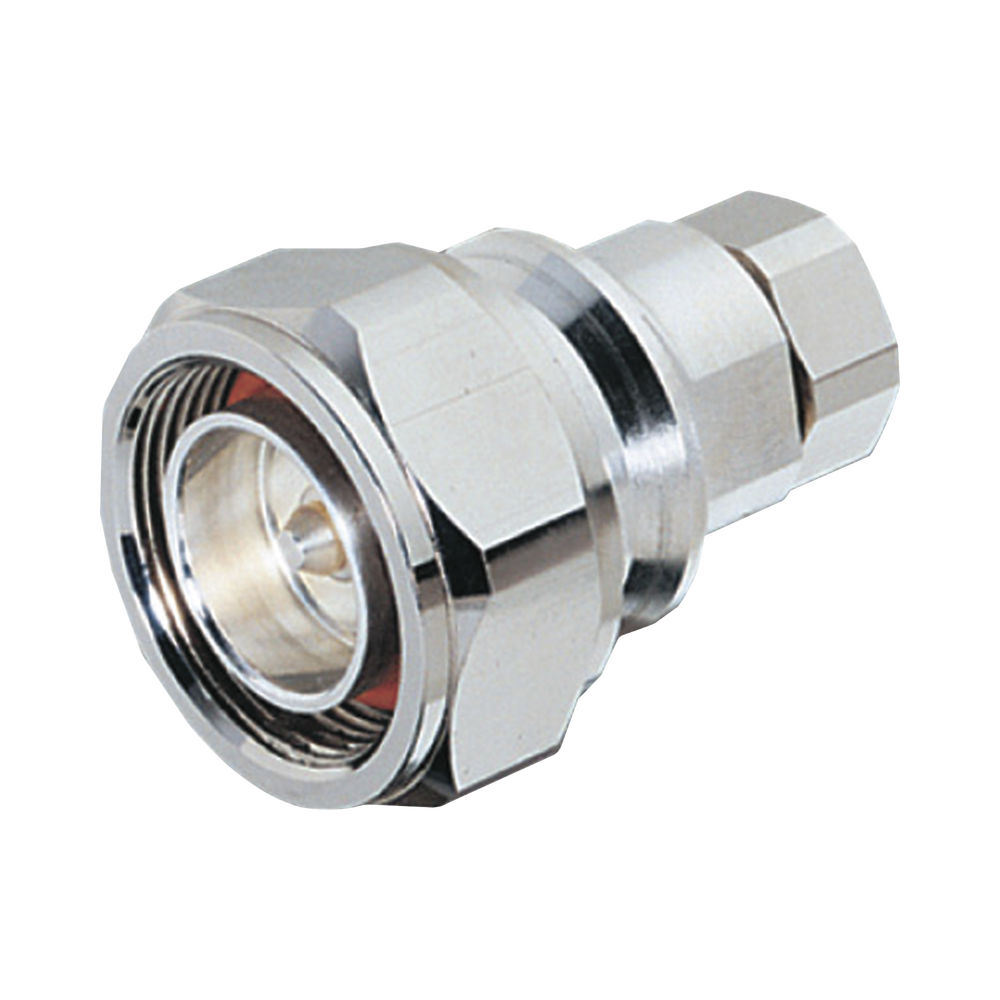

CommScope F4PDMV2-C 7-16 DIN Male for 1/2 in FSJ4-50B cable

COMMSCOPE

CommScope F4PDMV2-C 7-16 DIN Male for 1/2 in FSJ4-50B cable

Product identifier
SKU F4PDMV2-C
$46.56
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 7500 MHz
Average Power at Frequency 1.0 kW @ 900 MHz
Cable Impedance 50 ohm
3rd Order IMD, typical -120 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage, maximum (vrms) 884.00 V
dc Test Voltage 2500 V
Outer Contact Resistance, maximum 1.50 mOhm
Inner Contact Resistance, maximum 0.80 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 15.60 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness -110 dB

Key Features

  • 50 Ohm Impedance for 0-7500 MHz Frequency Range
  • 1.0 kW Average Power Handling at 900 MHz
  • Third Order IMD of -120 dBm at 910 MHz
  • Maximum RF Operating Voltage of 884 VRMS
  • Low Insertion Loss of 0.05 dB Typical
  • Maximum Outer Contact Resistance of 1.50 mΩ
