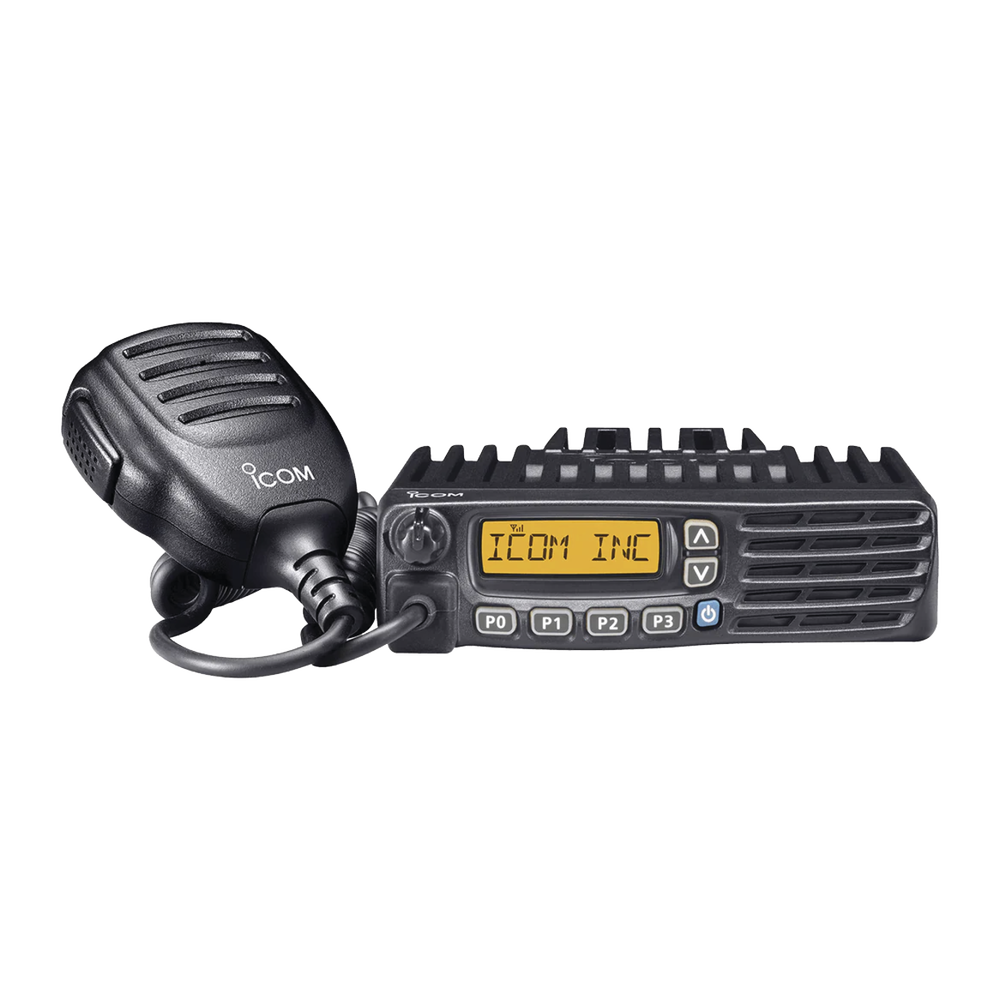

Icom F6121D 76 USA 45W UHF Mobile Radio 400-470MHz 128CH GPS IDAS

PRODUCT TITLE

Icom F6121D 76 USA 45W UHF Mobile Radio 400-470MHz 128CH GPS IDAS

PRODUCT OVERVIEW

RF output power (at 13.6V DC): 45W, 25W, 4.5W (Hi, L2, L1)

PRODUCT TYPE / CATEGORY

• Networking
• Radio Parts

KEY FEATURES

• IDAS Digital System With Enhanced Audio Quality
• Built-in GPS for Real-Time Location Tracking
• 512 Programmable Channels for Flexible Operation
• 25W High Power Output for Extended Range
• Digital and Analog Mode Compatibility
• Rugged Construction for Mobile Vehicle Installation

TECHNICAL SPECIFICATIONS

• Brand: Icom
• Model: F6121D 76 USA
• Product Type: Radio Parts
• 128 Channels with 8 Zones
• MIL standard 810 F
• Compact Hand Microphone
• GPS Receiver Connection
• 8-Character LCD
• Large Programmable Buttons
• Powerful, Front-Facing Speaker
• Built-in 2-Tone and 5-Tone (Analog mode)
• Scan Features
• Lone Worker Function
• Optional Active Noise Canceling Microphone
• CTCSS/DTCS encoder/decoder*
• 8 DTMF autodial memories
• Power-on password function
• Time out timer
• Frequency coverage: 400-470 MHz
• Number of channels: 128 channels (8 zones)
• Channel spacing: 6.25/12.5/25*kHz
• Current Drain: Tx 11 A, Rx 1.2 A
• Dimensions: 5.91×1.57×6.59 in / 150×40×167.5 mm
• Weight: 2.4lb / 1.1 kg
• RF output power (at 13.6V DC): 45W, 25W, 4.5W (Hi, L2, L1)
• Spurious emissions: 72dB (min.)
• Frequency stability: ±1.0ppm
• FM Hum and Noise: 40dB typ
• Sensitivity: 0.25μV typ. (at 12dB SINAD); 0.18μV typ. (at 5% BER)
• Adjacent channel selectivity: 70dB typ.
• Spurious response rejection: 70dB min.
• PTT ID

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
