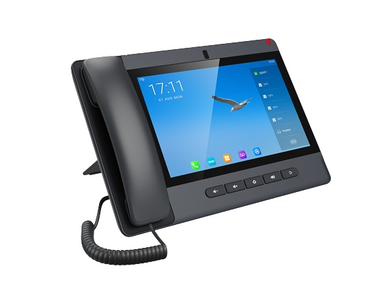

Fanvil A320 10.1" Touch Screen 20-Line Android IP Phone 8MP Video

PRODUCT OVERVIEW

Fanvil A320 enterprise Android IP phone with 20 SIP lines, 10.1-inch touchscreen, 8MP adjustable camera, HD voice, 10-way audio conferencing, dual Gigabit Ethernet, PoE, Wi-Fi, and Bluetooth 5.0.

PRODUCT TYPE

IP Phones

KEY FEATURES

• 20 SIP lines
• Android 9.0 operating system
• 10.1-inch 1280 × 800 color touchscreen
• 112 intelligent DSS keys
• Built-in adjustable 8-megapixel camera
• Mechanical camera shutter for privacy
• Supports video calling with H.264 codec
• Supports CIF, VGA, 4CIF, 720P, and 1080P video call resolutions
• Supports 10-way audio conferencing
• Supports 3-way video conferencing
• HD audio with G.722 and Opus wideband codecs
• HD handset with Hearing Aid Compatibility
• Full-duplex acoustic echo cancellation
• Noise reduction and packet loss concealment
• Built-in dual-band Wi-Fi
• 2.4GHz Wi-Fi supports 802.11 b/g/n
• 5GHz Wi-Fi supports 802.11 a/n/ac
• Built-in Bluetooth 5.0
• Dual 10/100/1000Mbps Gigabit Ethernet ports
• Integrated PoE support
• Supports handset, hands-free, and headset operation
• Local phonebook supports up to 2,000 entries
• XML/LDAP remote phonebook supports up to 2,000 entries
• Call history supports up to 1,000 entries
• Supports BLF, hot desking, SIP Hotspot, intercom, call forwarding, transfer, hold, waiting, and DND
• Supports third-party application installation
• Supports auto-provisioning and web-based management

TECHNICAL SPECIFICATIONS

• Brand: Fanvil
• Model: A320
• Product Type: Android Touch Screen IP Phone
• SIP Lines: 20
• Operating System: Android 9.0
• Display: 10.1-inch color touchscreen
• Display Resolution: 1280 × 800
• DSS Keys: 112
• Camera: 8-megapixel, adjustable angle
• Camera Privacy: Mechanical shutter
• Audio Conference Capacity: 10-party
• Video Conference Capacity: 3-party
• Video Decoding: H.264; H.265 listed as optional
• Video Call Resolution: CIF / VGA / 4CIF / 720P / 1080P
• Video Bandwidth: 64kbps to 4Mbps
• Video Frame Rate: 5-30fps
• Image Formats: JPEG / PNG / BMP
• Video Format: MP4
• Narrowband Audio Codecs: G.711a/u, G.729AB, iLBC
• Wideband Audio Codecs: G.722, Opus
• Audio Features: AEC, NR, PLC, dynamic adaptive jitter buffer
• DTMF: In-band, RFC2833, SIP INFO
• Ethernet: 2 × 10/100/1000Mbps RJ45
• Network Port Configuration: Network × 1, PC × 1
• Wi-Fi 2.4GHz: IEEE 802.11 b/g/n
• Wi-Fi 5GHz: IEEE 802.11 a/n/ac
• Bluetooth: 5.0
• IP Mode: IPv4
• IP Configuration: Static / DHCP
• Network Access Control: 802.1x
• VLAN: Supported
• LLDP: Supported
• CDP: Supported
• QoS: Supported
• SIP: SIP 2.0 over UDP/TCP/TLS
• Media Protocols: RTP / RTCP / SRTP
• Additional Protocols: STUN, DHCP, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
• OpenVPN: Supported with appropriate third-party application
• Auto-Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP Option 66 / SIP PNP / TR-069
• Management: Web management portal, Web, Telnet
• USB: 1 × USB 2.0 Type-A
• Handset Interface: RJ9
• Power: 5V/2A or PoE
• PoE Power Consumption: 2W to 9.77W
• Adapter Power Consumption: 1.2W to 7.75W
• Physical Keys: Volume -, Volume +, Home, Hands-Free, Return
• Installation: Desktop
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 10% to 95%
• Dimensions with Desktop Stand Angle 1: 309 × 214 × 187mm
• Dimensions with Desktop Stand Angle 2: 309 × 226 × 167mm
• Color: Grey
• Included Hardware Listed by Manufacturer: HD handset, RJ9 handset wire, 1.5m CAT5 Ethernet cable, back rack
• External Power Supply: Optional

INTENDED USE / APPLICATIONS

• Enterprise office communications
• Management centers
• Video calling
• Group audio and video conferencing
• Two-way intercom applications
• Monitoring applications
