FANVIL
Fanvil CS20 Bluetooth USB Speakerphone 2000mAh Li-Ion Full-Duplex
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

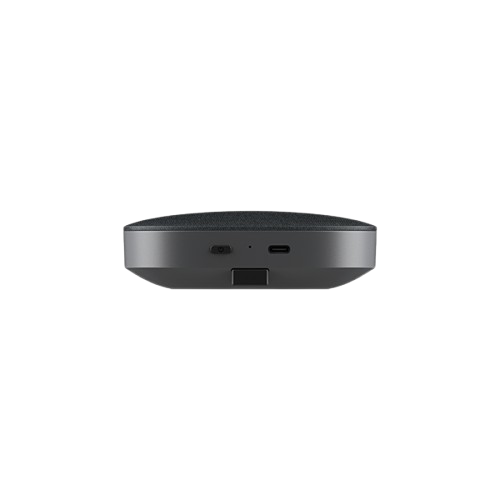

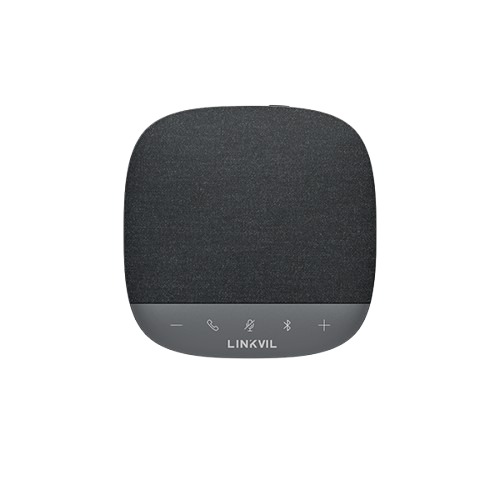

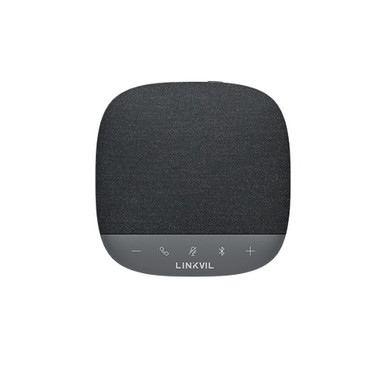

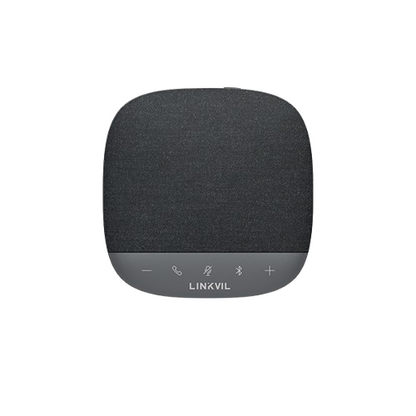

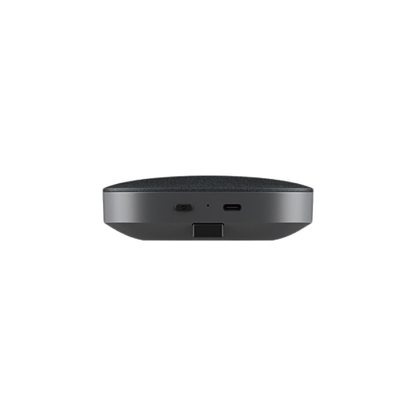

Fanvil CS20 portable speakerphone with three omnidirectional microphones, full-duplex audio, ENC, ANS, AGC, and flexible USB-C, USB dongle, and Bluetooth 5.4 connectivity.
PRODUCT TYPE
IP Phones
KEY FEATURES
• USB-C, USB dongle, and Bluetooth connectivity
• Three omnidirectional analog microphones
• 1.5m voice pickup range
• Full-duplex audio technology
• Environment Noise Cancellation (ENC)
• Adjustive Noise Suppression (ANS)
• Automatic Gain Control (AGC)
• Bluetooth 5.4 with up to 10m operating range
• Stores pairing information for up to 8 devices
• Supports 2 simultaneous Bluetooth connections
• Compatible with apps and UC services of mainstream softphone platforms
• Five touch buttons
• Compact portable design
TECHNICAL SPECIFICATIONS
• Manufacturer: Fanvil
• Model / Part Number: CS20
• Microphones: 3 omnidirectional analog microphones
• Voice Pickup Range: 1.5m
• Microphone Sensitivity: -38dBFs/Pa
• Microphone Frequency Range: 20Hz–8kHz
• Microphone SNR: >65dB
• Speaker: φ40mm, 4Ω, 3W rated power
• Maximum Speaker Output Power: 5W
• RMS Speaker Power: 3W
• Speaker Sensitivity: 87dB ±3dB
• Speaker Frequency Range: 100Hz–20kHz
• Music Mode Bandwidth: 100Hz–20kHz
• Speak Mode Bandwidth: 100Hz–20kHz
• Audio: Full-duplex, ENC, ANS, AGC
• PC / Mobile Connectivity: USB-C, USB dongle, Bluetooth
• Bluetooth Version: 5.4
• Bluetooth Profiles: HSP V1.2, HFP V1.7, A2DP V1.2
• Bluetooth Operating Range: 10m
• Bluetooth Pairing List: Up to 8 devices
• Simultaneous Bluetooth Connections: 2
• Battery Capacity: 2000mAh
• Charging Time: 2 hours
• Charging Power: 5V/1.3A
• Maximum Charge Current: 1.3A
• Talk Time: Up to 16 hours
• Music Time: Up to 9.4 hours
• Standby Time: Up to 25 hours
• Controls: 5 touch buttons
• Power: USB / lithium battery
• Product Dimensions: 110 x 110 x 35mm
• USB Cable Length: 1m
• Product Weight: 201g
• Working Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Working Humidity: 10%–95% RH
• Package Contents: CS20 portable speakerphone, USB cable, carry bag, Quick Start Guide, Safety Information & Declaration
