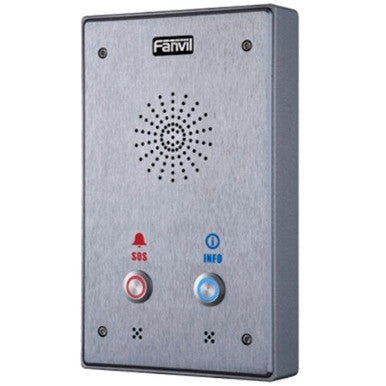

Fanvil i12-02P 2-Line IP Phone PoE Wall-Mount IP65 IK10

PRODUCT OVERVIEW

The front plat of this model is aluminum alloy material with cast aluminum back plate , it makes sure that this model support waterproof, dustproof function and IP65 protection level ; We also use build-in tamper-proof detector to prevent external destroy.

PRODUCT TYPE

IP Phones

KEY FEATURES

• Support one call key and two keys mode to choose.
• With voice record output, can connect to hard disk video recording..
• Two input, support to connect with infrared probe, door sensor, vibration sensor and emergency button etc., build the security linkage.
• Two output, can connect with alarm lamp, locks and other equipment, control the security linkage through DTMF, remote server or two output input linkage controller.
• With external active speaker output interface, support HD voice(G.722) background music broadcast.
• High compatibility – Compatible with major platforms:Aterisk,Broadsoft,3CX, Metaswitch, Elastix, Avaya etc.
• 195x120x39mm (W x H x L)
• 0.85kg
• Generic 2 SIP lines
• Duplex speaker phone (HF)
• Intelligent DSS Keys(Speed dial)
• Wall-mount installation
• 2 embedded short circuit input interfaces
• 2 embedded short circuit output interfaces. Support 4 controlled events remote DTMF; remote server’s commands
• interaction with short circuit input
• talking status
• Output interface for active speaker
• Audio record output interface

TECHNICAL SPECIFICATIONS

• Brand: Fanvil
• Model: i12-02P
• Product Type: IP Phones
• Support one call key and two keys mode to choose.
• With voice record output, can connect to hard disk video recording..
• Two input, support to connect with infrared probe, door sensor, vibration sensor and emergency button etc., build the security linkage.
• Two output, can connect with alarm lamp, locks and other equipment, control the security linkage through DTMF, remote server or two output input linkage controller.
• With external active speaker output interface, support HD voice(G.722) background music broadcast.
• High compatibility – Compatible with major platforms:Aterisk,Broadsoft,3CX, Metaswitch, Elastix, Avaya etc.
• 195x120x39mm (W x H x L)
• 0.85kg
• Generic 2 SIP lines
• Duplex speaker phone (HF)
• Intelligent DSS Keys(Speed dial)
• Wall-mount installation
• 2 embedded short circuit input interfaces
• 2 embedded short circuit output interfaces. Support 4 controlled events remote DTMF; remote server’s commands
• interaction with short circuit input
• talking status
• Output interface for active speaker
• Audio record output interface
• External Power Supply
• Multicast
• All in ONE: Radio and intercom, intelligent security function
• Industrial Standard Certifications: IP65, IK10, CE/FC
• Call Functions Intercom
• Speed Dial
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Intercom Function Call log (900 entries, in/out/missed)
• Programmable DSS/Soft keys

INTENDED USE / APPLICATIONS

• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
