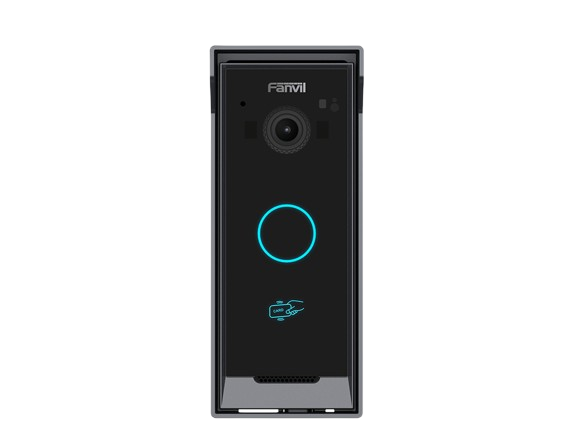

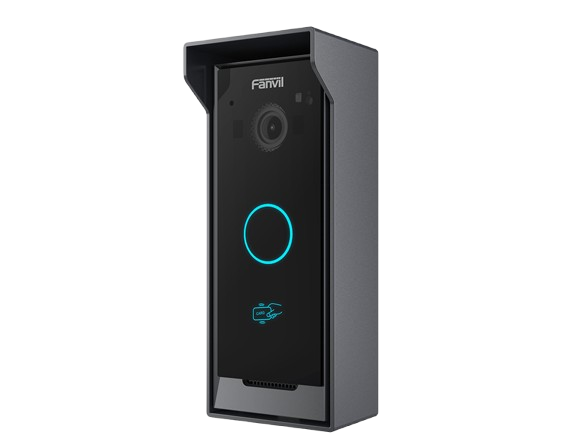

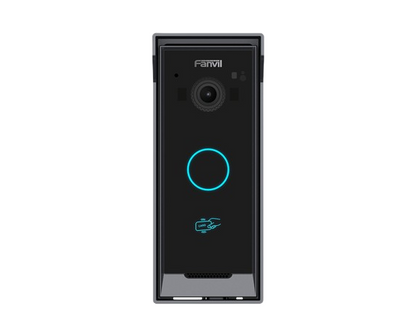

Fanvil i60 2MP IP65 Video Door Phone PoE IC/BLE Access

PRODUCT OVERVIEW

The i60 is a compact SIP door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as password, Bluetooth, IC/ID card, and DTMF Code for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

PRODUCT TYPE

IP Phones

KEY FEATURES

• 1 speed dial button
• Equipped with a 2 mega-pixel HDR high-definition camera, it provides clearer imaging
• IP65 high protection rating with wide temperature rate from
• -40℃ to 70℃, suitable for harsh outdoor environments
• Rich interfaces for security device connectivity
• Supports the standard ONVIF protocol, providing high flexibility and excellent compatibility

TECHNICAL SPECIFICATIONS

• Brand: Fanvil
• Model: i60
• Product Type: Security Cameras
• Panel Type: Multi-apartment, Community, Villa
• Keyboard: 1 Speed-dial Button
• Body: ABS+PC
• Colors: Panel: black
• Housing: Gunmetal
• Sensor: 1/2.9-inch，CMOS
• Camera: 2 Mpx, Support infrared
• Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
• Output video: H.264 (Baseline, Main Profile)
• Light Sensitivity: 0.1Lux
• Card Storage: 1,0000
• Power Consumption: PoE: 1.63~6.93W
• Adapter: 1.51~6.16W
• Power Supply DC 12V / 1A
• PoE 802.3af Class 3
• Working Temperature: -40℃~+70℃
• Storage temperature: -40℃~+70℃
• Size of the Panel (LWH): 50 x 130 x 30mm
• IP / IK Level: IP65
• Installation: Wall-mounted
• Rain cover
• Supported Protocols: SIP 2.0 over UDP/TCP/TLS
• Lock Opening: IC Card，By DTMF Code，Remote Door Opening, BLE
• Interface: Wiegand Input/Output
• Short Circuit Input/Output
• Supported Wiegand: 26, 34 bit
• Supported ONVIF Types: Profile S
• Supported Standards: DTMF, IC Card, Indoor Switch, BLE
• Cards 13.56 MHz

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
