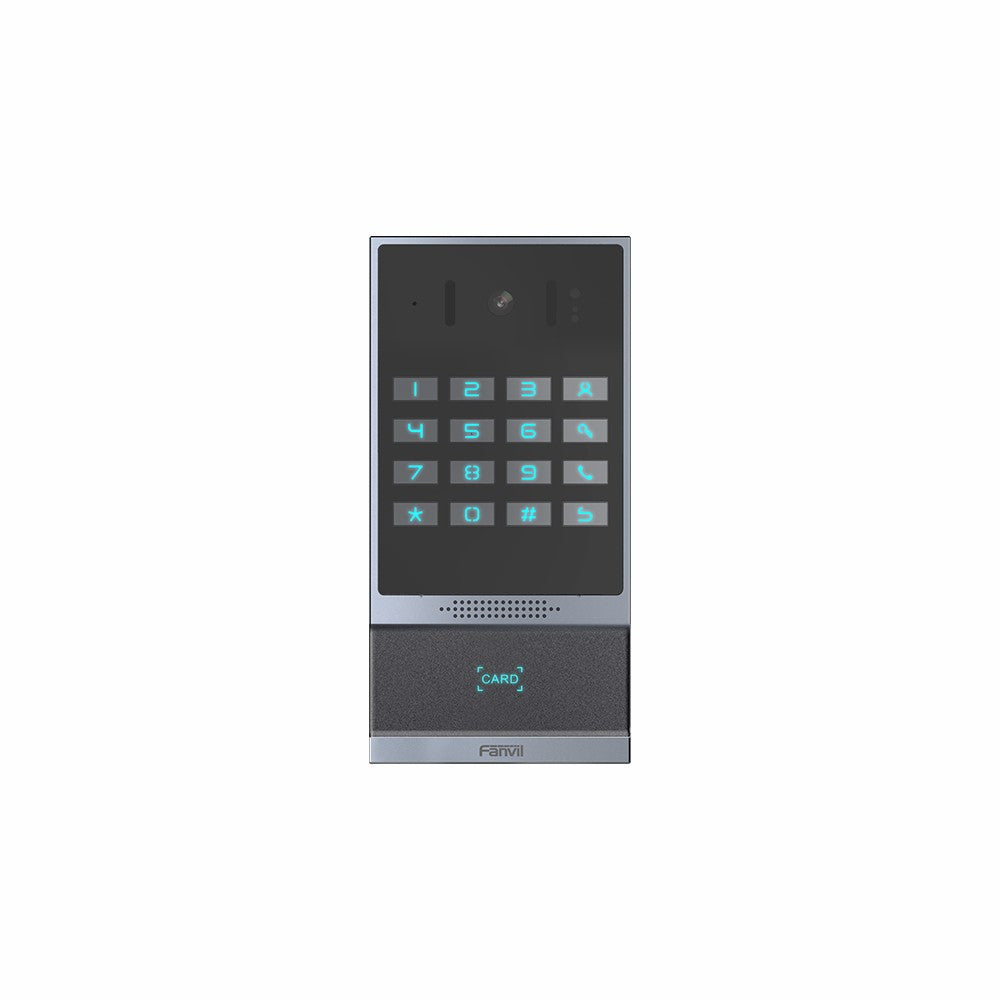

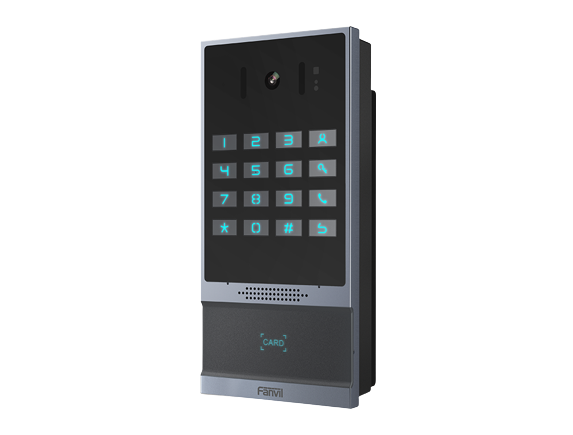

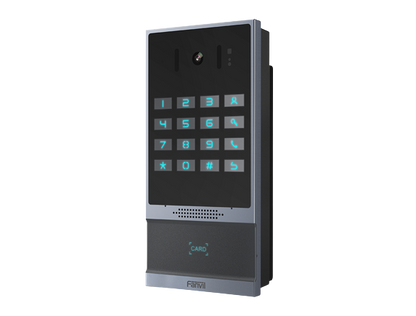

Fanvil i64 IP66 2MP Video Door Phone SIP PoE Access Control

PRODUCT OVERVIEW

Based on SIP and ONVIF protocols , i64 is a video door phone that integrates powerful functionalities of access control, intercom, and security protection . Featuring an aluminum alloy design and single speed dial touch button , i64 delivers a high-quality robust appearance . With high protection level IP66 and IK07 , it is waterproof, dustproof and anti-collision in most outdoor environments . i64 allows users to make audio/video calls via a speed-dial button and a 2 Mega-pixel camera and achieve access control by different modes. With rich input and output interfaces , i64 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.

PRODUCT TYPE

IP Phones

KEY FEATURES

• Built-in HD camera with night-vision feature, adopt H.264 codec
• High durability guarantees the highest coverage on the market according to the IP66 and IK07 standards.
• Wide-angle camera: 120º (H), 60º (V)
• Fitted with a tamper switch that detects unauthorized opening of the device itself.
• HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller
• Built-in 3 short-in detect port and 2 short-out control port
• Built-in TF card slot for data storage
• Compatible with ONVIF standard
• Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc
• 177.4x88x36.15 mm
• Generic 2 SIP lines
• Video intercom
• IP address announcement in English
• Programmable DSS key
• Wiegand port: Support
• RS485 port: Support
• Open the door operation: DTMF, password, RFID card, NFC,Indoor Switch, Timed open door
• door control in and out

TECHNICAL SPECIFICATIONS

• Brand: Fanvil
• Model: i64
• Product Type: IP Phones
• Built-in HD camera with night-vision feature, adopt H.264 codec
• High durability guarantees the highest coverage on the market according to the IP66 and IK07 standards.
• Wide-angle camera: 120º (H), 60º (V)
• Fitted with a tamper switch that detects unauthorized opening of the device itself.
• HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller
• Built-in 3 short-in detect port and 2 short-out control port
• Built-in TF card slot for data storage
• Compatible with ONVIF standard
• Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc
• 177.4x88x36.15 mm
• Generic 2 SIP lines
• Video intercom
• IP address announcement in English
• Programmable DSS key
• Wiegand port: Support
• RS485 port: Support
• Open the door operation: DTMF, password, RFID card, NFC,Indoor Switch, Timed open door
• door control in and out
• Switch signal input and output
• Line-out for induction loop antenna: Support
• Support TF card
• PoE enabled
• RFID cards (support 10,000)
• Door open records (support 200,000)
• Device Functions Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Time Plan (task management)

INTENDED USE / APPLICATIONS

• Business voice communications
• Office, reception, and institutional environments
• Integration with compatible SIP/VoIP systems
