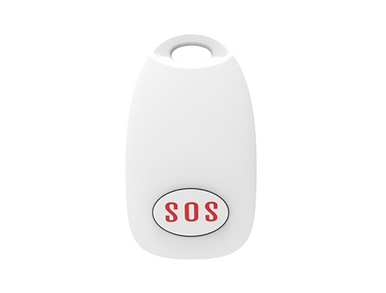

Fanvil KT10 Wireless Key for Y501/Y501-Y and X305

FANVIL

Fanvil KT10 Wireless Key for Y501/Y501-Y and X305

Product identifier
SKU KT10
$19.72
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

KT10 - Wireless Buttons

The KT10 and KT20 are rebound-type kinetic energy wireless buttons. They utilize patented micro-energy harvesting technology, requiring no battery, and are exceptionally compact. These wireless buttons can be paired with the Fanvil Y501&Y501-Y series and X305 Big Button IP Phone for equipment control.

Dimensions

  • 21mm x 51.6mm x 18.5mm

Technical Description

  • Model: KT10
    • Applicable
      • Models Y501/Y501-Y Series
      • X305
    • Material: ABS
    • Number of keys: 1
    • Modulation Mode: FSK
    • Power Supply: Self-powered
    • Communication Protocol: Ebelong1.1
    • Radio Frequency: 433MHz
    • Operating Life: ≥ 100,000 Times
    • Working Temperature: -20~ +55°C
    • Operate Range
      • Spacious indoors: 12-25 m
      • Spacious outdoors:70-80 m

More Information

MFRPartNum:
KT10
Datasheet:
Click here
