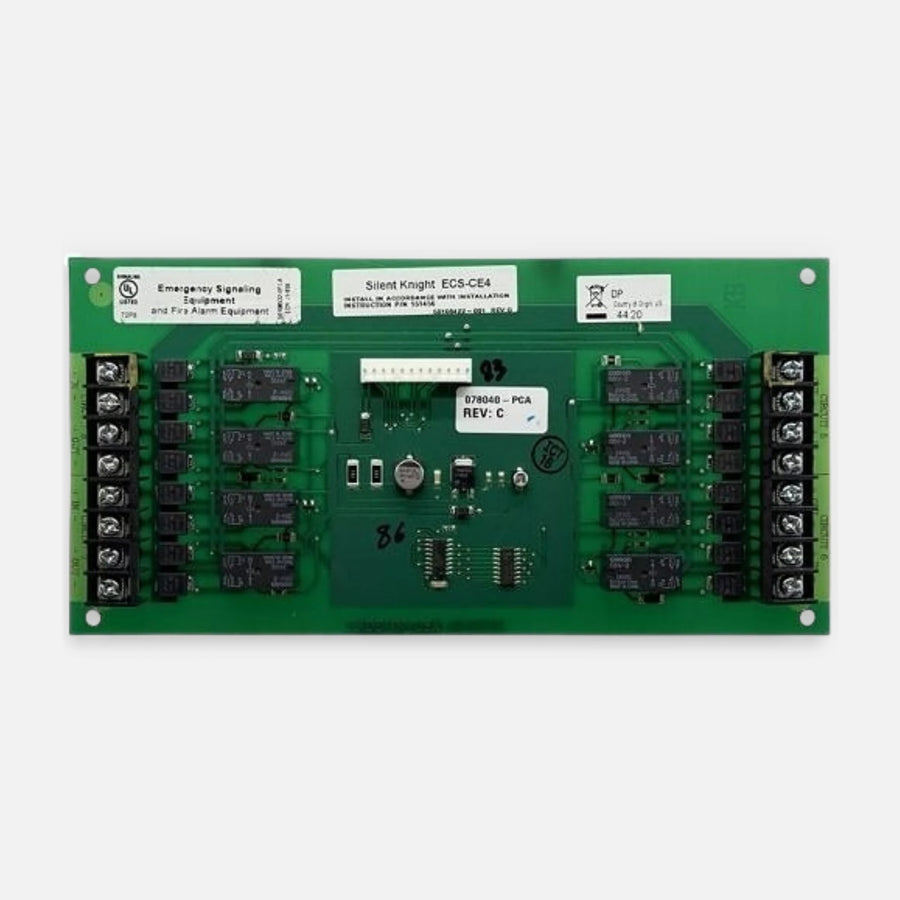

Farenhyt ECS-CE4 4-Circuit Audio Expander for ECS-50W and ECS-125W Amplifiers

Part number / SKU
ECS-CE4
  • Audio circuit expander
  • ECS-50W or ECS-125W cabinet

Works with: ECS-50W amplifier, ECS-125W amplifier, IFP-100ECS FACP, IFP-300ECS FACP, IFP-1000ECS FACP, IFP-2000ECS FACP and 2 more models Confirmed by the manufacturer


$313.21

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Farenhyt ECS-CE4 is an audio circuit expander for the Farenhyt ECS emergency voice system. It adds four audio circuits (circuits 5 to 8) to an ECS-50W or ECS-125W amplifier, so an ECS-125W with four speaker circuits can be expanded to eight.

The board mounts inside the ECS-50W or ECS-125W cabinet with four supplied screws and connects to the amplifier's Audio Expander connector through the supplied cable harness, PN 130426. Speaker circuits can be wired Class A or Class B. The expander draws 20 mA in standby and 180 mA in alarm, and it is used on systems built around the IFP-100ECS, IFP-300ECS, IFP-1000ECS, IFP-2000ECS and IFP-2100ECS panels.

  • Best for: adding speaker circuits to an existing Farenhyt ECS-50W or ECS-125W voice amplifier.
  • System fit: ECS-50W and ECS-125W amplifiers on IFP-100ECS, IFP-300ECS, IFP-1000ECS, IFP-2000ECS and IFP-2100ECS systems.
  • Important to know: installation and wiring must follow NFPA 72 and local code and be done by a qualified fire alarm technician.

Why teams choose it

Built for fire alarm systems

  • Four more audio circuits

    adds speaker circuits 5 to 8 to the host amplifier.

  • Class A or Class B wiring

    speaker circuits can be wired either way.

  • Mounts in the amplifier cabinet

    fits inside the ECS-50W or ECS-125W enclosure with four supplied screws.

  • Low standby draw

    20 mA in standby and 180 mA in alarm for battery calculations.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUECS-CE4
General
Brand Farenhyt (Honeywell)
Model ECS-CE4
Device Type Audio circuit expander
Function Adds four audio circuits (circuits 5 to 8)
Host Amplifiers ECS-50W or ECS-125W
Speaker Circuit Wiring Class A or Class B
Connection Audio expander cable harness PN 130426 (supplied) to the amplifier Audio Expander connector
Mount Type ECS-50W or ECS-125W cabinet
Mount Type Detail Inside the ECS-50W or ECS-125W cabinet, four supplied screws
Electrical
Standby Current 20 mA
Alarm Current 180 mA
