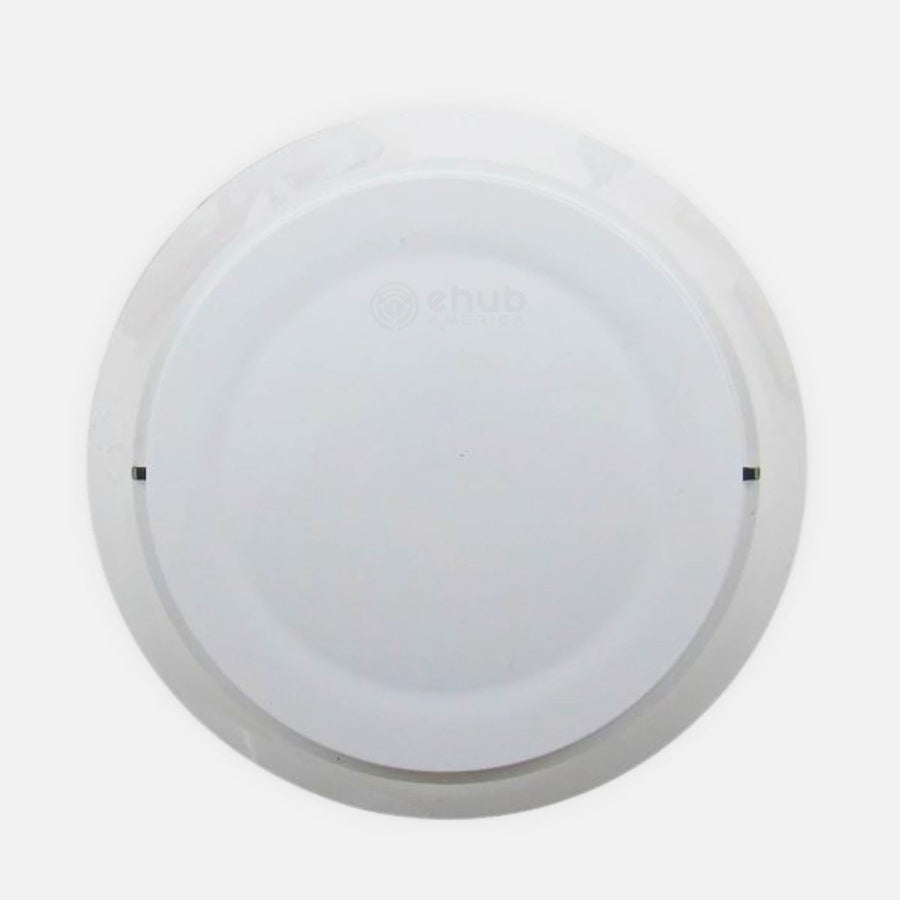

Farenhyt IDP-PHOTO-W-BP Low Profile Addressable Photoelectric Smoke Detector, White
- Part number / SKU
- IDP-PHOTO-W-BP
- Plug-in smoke detector head
- Photoelectric
- Addressable
- Plug-in head
- 15 to 32 VDC
Works with: IFP-2100 / IFP-2100ECS / RFP-2100 FACP, IFP-2000 / IFP-2000ECS / RPS-2000 FACP, IFP-1000 / IFP-1000ECS FACP, IFP-300 / IFP-300ECS FACP, IFP-100 / IFP-100ECS FACP, IFP-75 FACP and 13 more models Confirmed by the manufacturer
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for fire alarm systems
-
Panel-set sensitivity
programmed from the panel and continuously monitored and reported.
-
Exact point ID
rotary decimal address switches identify each detector location.
-
360 degree status
dual LEDs are visible from any direction.
-
Duct capable
listed for duct applications at 0 to 4000 fpm air velocity.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | IDP-PHOTO-W-BP |
| General | |
| Brand | Farenhyt (Honeywell) |
| Model | IDP-PHOTO-W-BP |
| Device Type | Plug-in smoke detector head |
| Device Type Detail | Intelligent |
| Detection Type | Photoelectric |
| Addressing | Addressable |
| Addressing Detail | Rotary decimal address switches |
| Communication | Analog, two-wire SLC |
| Mount Type | Plug-in head |
| Mount Type Detail | For B210LP, B501, B224BI, B224RB or B200SR bases |
| Sensitivity | Programmable from the FACP; continuously monitored and reported |
| Indicators | Dual LEDs, 360 degree visibility |
| Test | Built-in functional test switch, external magnet; remote test from the panel |
| Air Velocity | 0 to 4000 fpm (0 to 20 m/s), suitable for ducts |
| Color | White |
| Electrical | |
| Operating Voltage | 15 to 32 VDC |
| SLC Standby and Alarm Current | 300 uA |
| Physical | |
| Height | 2.0 in (5.08 cm) less sensor |
| Diameter | 4.1 in (10.4 cm) installed in B501 base |
| Housing | Age resistant polymer, low profile |
| Insect Screen Hole Size | 0.016 in (0.41 mm) nominal |
| Environmental | |
| Operating Temperature | 32 to 120 F (0 to 49 C) |
| Humidity | 10 to 93 percent, non-condensing |
| Listings and Approvals | |
| Agency Approvals | UL S6173; FM Approved; CSFM 7272-0559:0512; MEA 225-02-E Vol. V |
