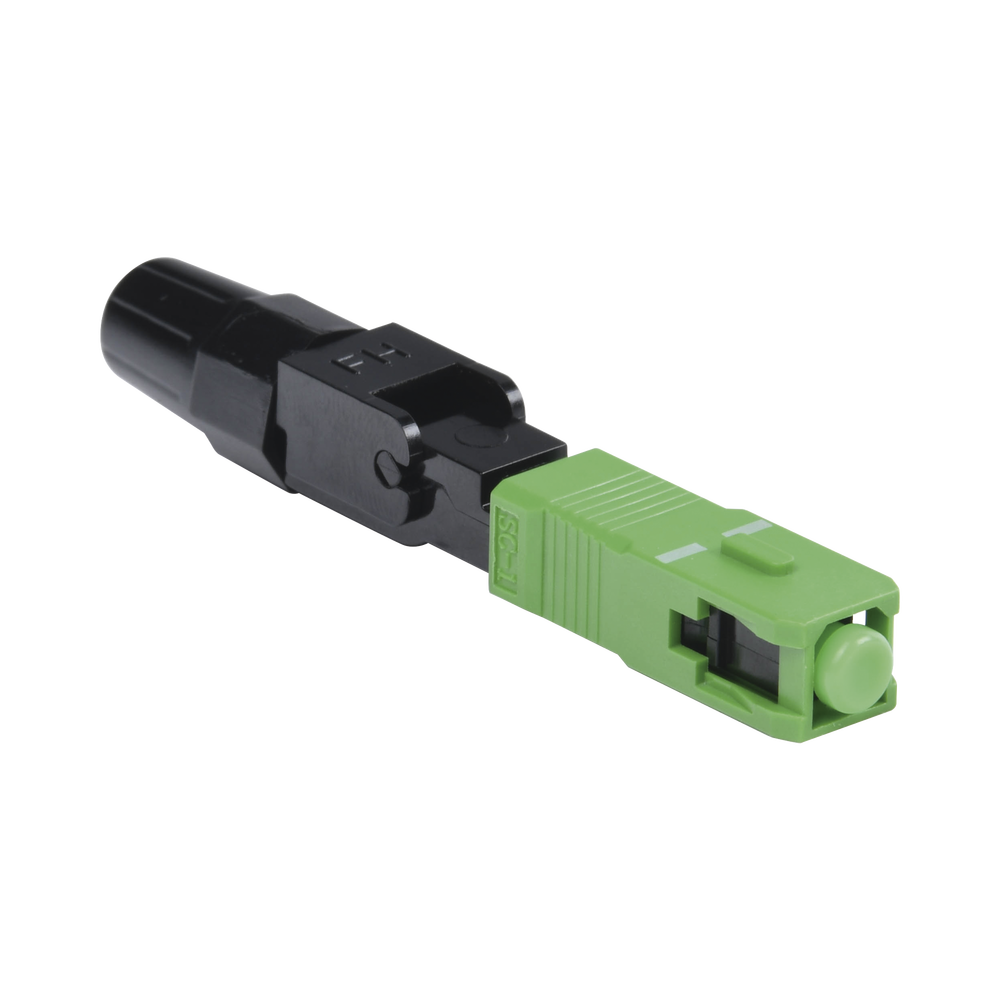

Fiberhome FASC SC/APC Singlemode Fiber Optic Fast Connector - Pre-Polished, Reusable Field Assembly Quick Connector for FTTH Installation

FIBERHOME

Fiberhome FASC SC/APC Field Assembly Connector Single-Mode Fiber

Product identifier
SKU FASC
$14.65
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

SC/APC Field Assembly Connector

Fast, Tool-Free FTTH Termination

Instant Field Termination

Eliminate the need for fusion splicing and polishing. Our Field Assembly SC Connectors enable rapid, on-site installation for single-mode fiber to drop cable connections. Designed to be assembled directly on the cable sheath, it removes the hassle of bare fiber storage and ensures a 98% first-time success rate.

Why Choose Fast Connectors?

  • ✓ Quick Setup: Average assembly ≤ 60 seconds.
  • ✓ No Splicer Required: Cuts equipment costs.
  • ✓ Simple Tools: No special opening tools needed.
  • ✓ Re-assemblable: Can be reused up to 3 times.
  • ✓ Universal: Fits 900µm or Drop Fiber cables.

Technical Performance

Connector Type: SC / APC (Green)
Insertion Loss (Typical): ≤ 0.30 dB
Return Loss (APC): ≤ 55 dB
Temperature Range: -40°F to 158°F
(-40°C to 70°C)
Compatibility: Single-mode 9/125µm

Precision Internal Components

Factory pre-polished ferrule ensures consistent high-quality optical performance in the field.

Technician Note: This connector is specifically designed for 0.079 x 0.118 in (2x3mm) drop cables or 900µm tight-buffered fiber. Perfect for rapid network restoration or subscriber installations where a fusion splicer is unavailable.

Key Features

  • SC/APC Connector for FTTH Optical Fiber Applications
  • Quick Installation Without Special Tools Required
  • Re-Terminable up to 3 Times in Field Conditions
  • Maximum Insertion Loss of 0.50 dB
  • Operating Temperature Range -40°F to 158°F
  • Return Loss of 55 dB for APC Polish
