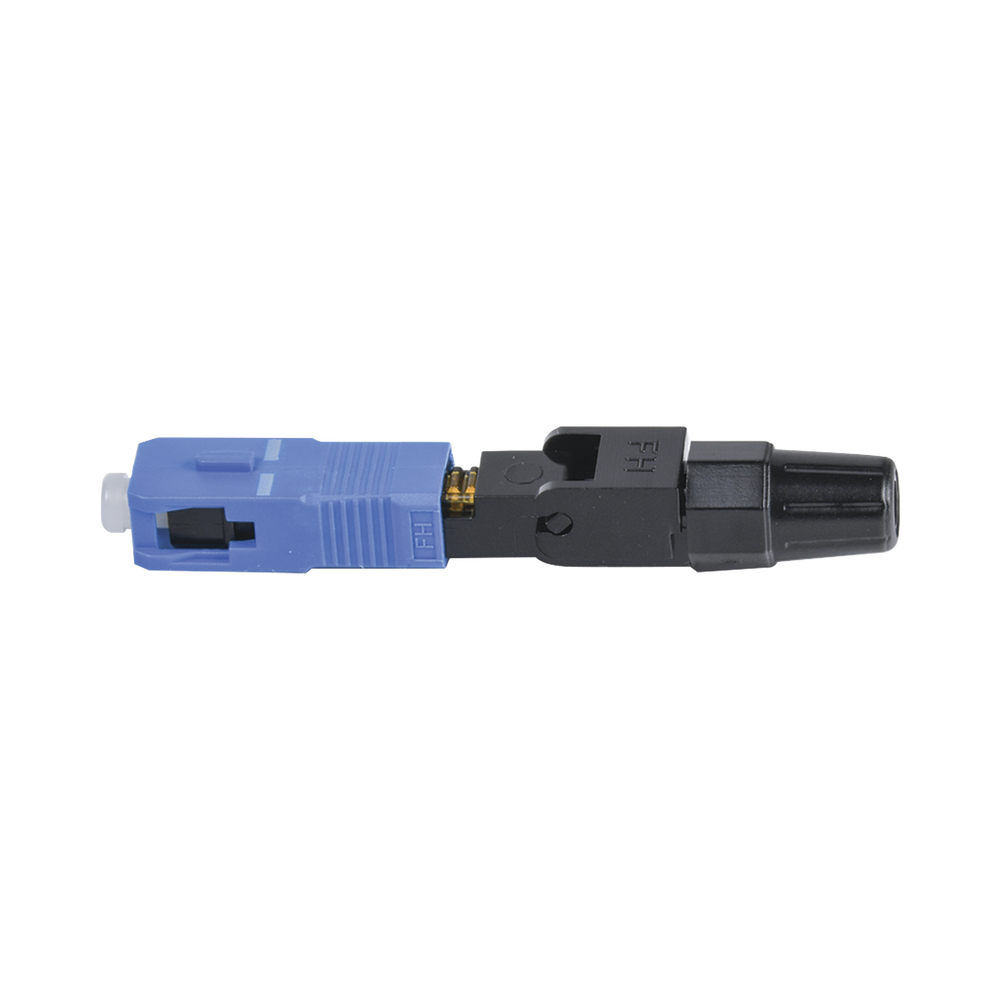

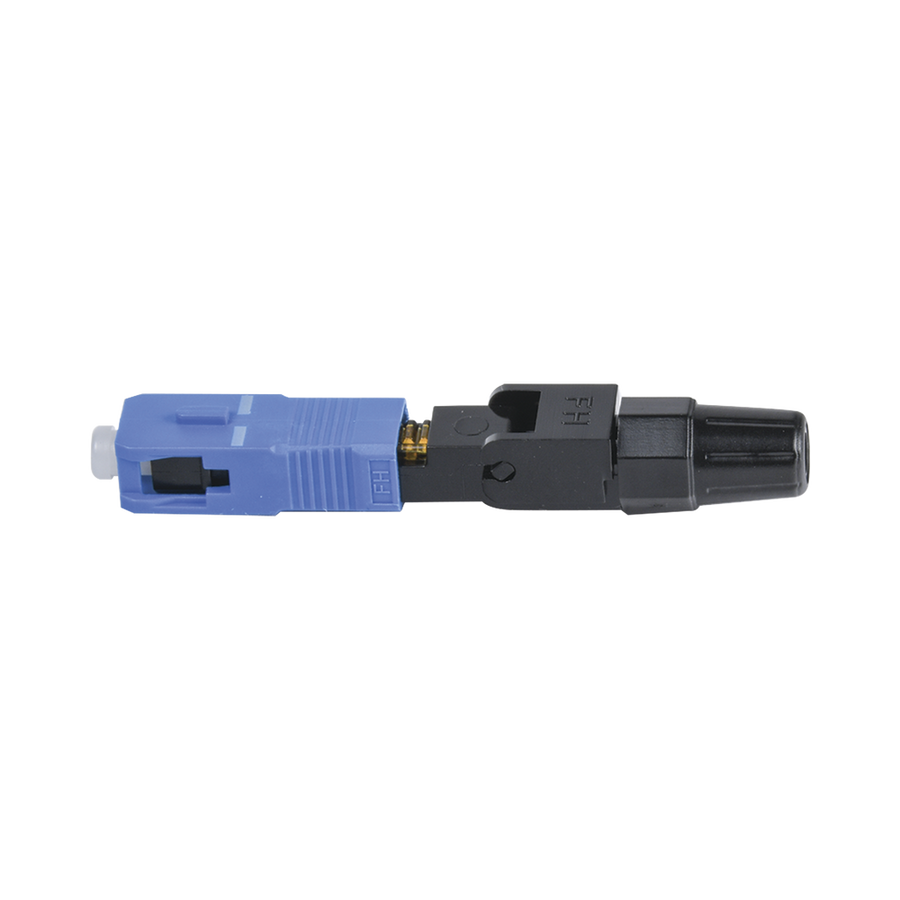

Fiberhome FASC-UPC Field Assemble SC/UPC Singlemode Connector 0.50dB

Field Assemble SC connectors enable fast, on-site installation for single-mode Fiber to FTTH drop cable connections without polishing. It is assembled on the cable sheath to eliminate bare fiber storage.

• Easy assembly, average assembly time ≤ 60s, one-time success rate reaches 98%
• The connection can be verified easily after the assembly
• No special tools are required to open and close the connector
• No need for a fusion splicer

Features:

• Connector Type: SC/UPC
• For 900µm Fiber or Drop Fiber
• Re-assemblable (up to 3 times)
• Insertion loss:
  • Maximum ≤ 0.50 dB
  • Typical ≤ 0.30 dB
• Return loss::
  • UPC ≤ 50 dB
  • APC ≤ 55 dB
• Working temperature: -40 ～ 70ºC

Key Features

• SC/UPC Connector for Tight Buffer and Drop Fiber Cables
• Re-Terminable up to 3 Times Without Performance Degradation
• Maximum Insertion Loss 0.50 dB, Typical 0.30 dB
• UPC Return Loss 50 dB, APC Return Loss 55 dB
• Extended Temperature Range -40°F to 158°F
• Quick Installation Without Specialized Tools Required
