C-Data FD511GX ONU GPON EPON 1 SC / APC Port Gigabit LAN port

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

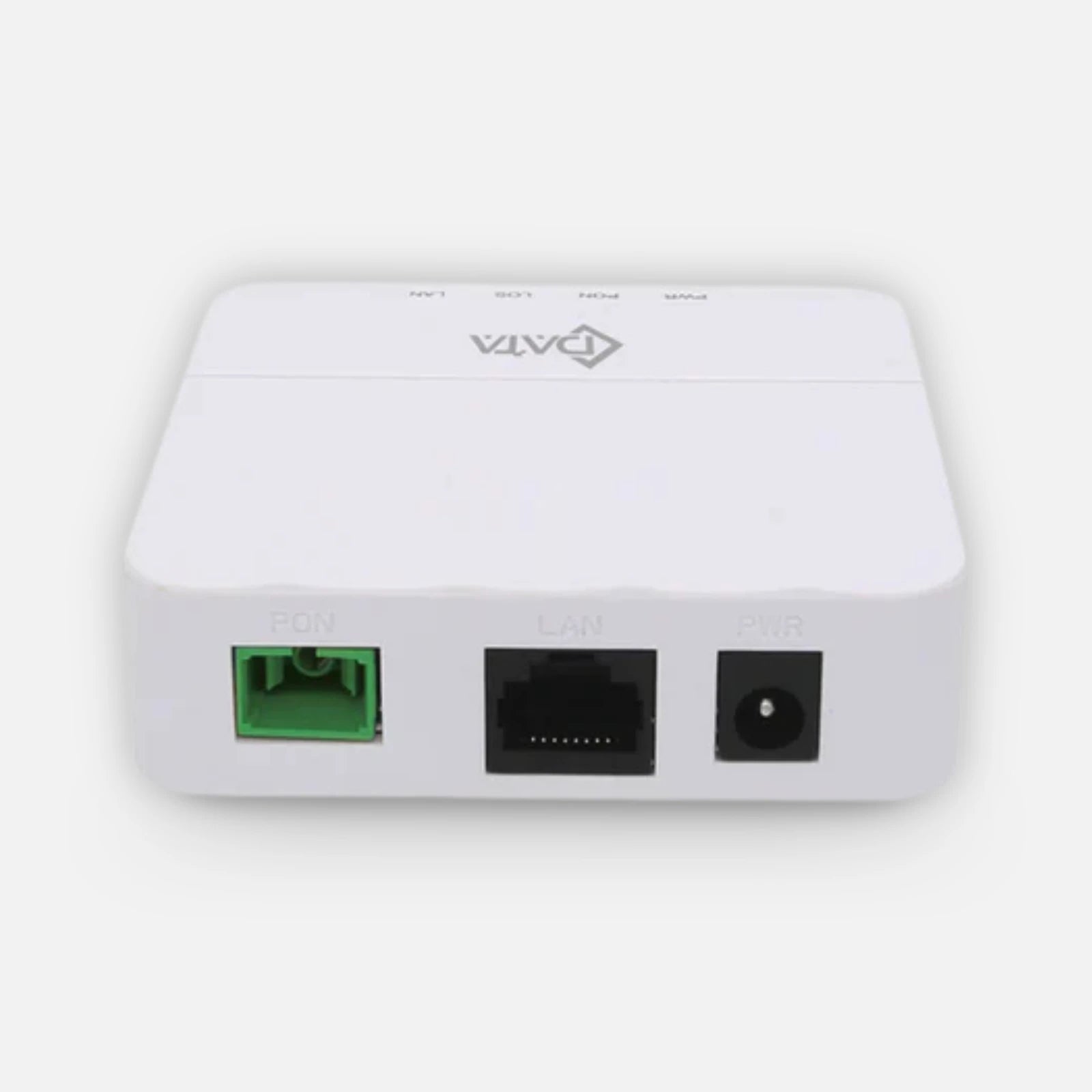

CDATA FD511GX Dual EPON/GPON ONU 1-Port Gigabit SC/APC Fiber ONT

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
CDATA FD511GX dual-mode GPON/EPON ONU designed for FTTH, FTTO, SOHO, and surveillance deployments featuring 1 Gigabit Ethernet port, SC/APC PON interface, remote management capabilities, and support for bridge or router operation modes.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking → Networking Accessories

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Dual-mode GPON / EPON ONU
• 1 x 10/100/1000 Mbps Gigabit Ethernet LAN port
• 1 x SC/APC PON optical port
• Supports EPON PX20 and GPON Class B+
• Designed for FTTH, FTTO, FTTD, SOHO, and video surveillance applications
• Supports bridge mode and router mode operation
• WEB, Telnet, and CLI management interfaces
• Remote management software support
• Cellular APP management support
• Supports VLAN Tag and Untag configurations
• Supports LAN port speed limitation
• IPv4 compatible
• Supports DHCP, PPPoE, and Static IP network modes
• Firewall filtering based on ACL, MAC, and URL rules
• Fully compliant with ITU-T G.984.x and IEEE802.3ah standards

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: CDATA
• Model: FD511GX
• ONU Type: Dual EPON / GPON ONU
• Ethernet Ports: 1 x 10/100/1000 Mbps RJ45
• Optical Port: 1 x SC/APC PON
• Optical Standard Support: EPON PX20 / GPON Class B+
• Optical Receiving Sensitivity: ≤ -28 dBm
• Transmission Distance: Up to 20 km
• Wavelengths: Tx 1310 nm / Rx 1490 nm
• Power Supply: 12 VDC, 0.5 A
• Maximum Power Consumption: ≤ 4 W
• Dimensions: 82 mm × 82 mm × 25 mm
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -30°C to +70°C
• IP Support: IPv4
• Management Interfaces: WEB, Telnet, CLI
• Network Modes: DHCP / PPPoE / Static IP
• Firewall Features: ACL / MAC / URL Filtering

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• FTTH (Fiber to the Home) deployments
• FTTO (Fiber to the Office) installations
• FTTD (Fiber to the Desktop) environments
• SOHO networking applications
• Video surveillance network connectivity

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
