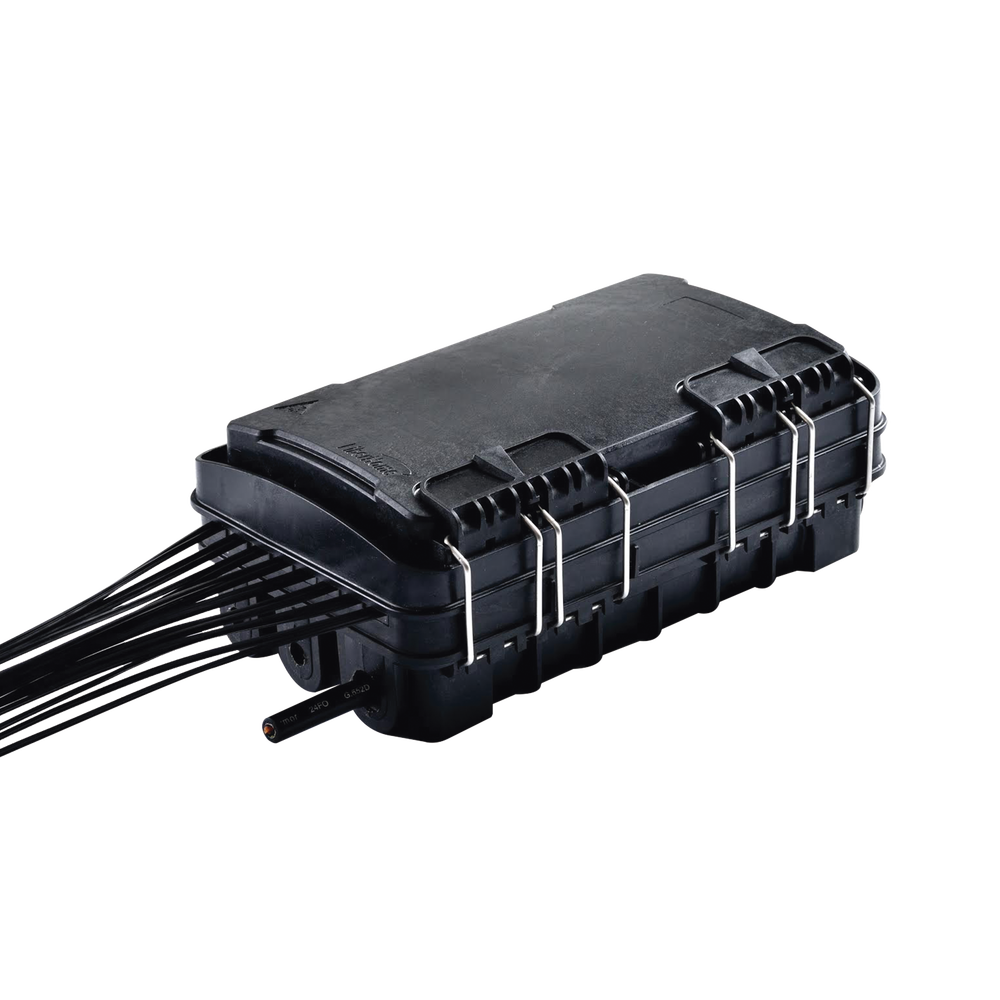

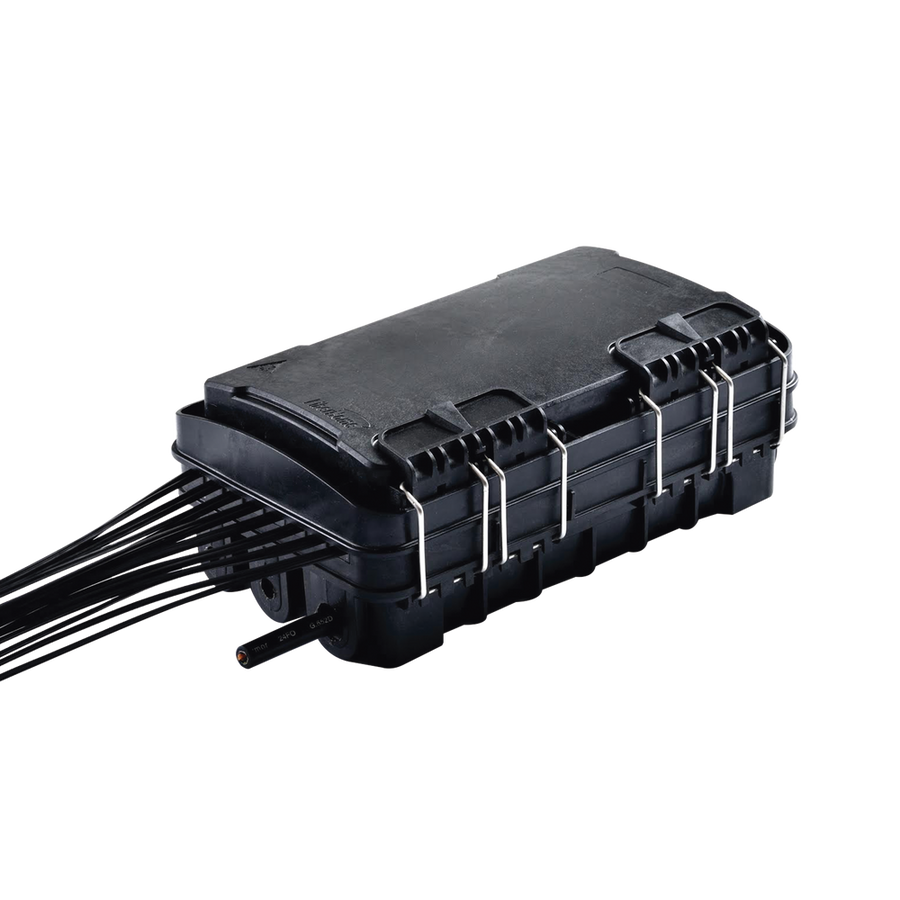

Fiberhome FDP-420E Fiber Distribution Box 16 SC/APC IP65

FiberHome FDP series fiber distribution boxes provide fiber connectivity between the distribution cable and drop cable

Features:

• High strength material with good weather-fastness
• In-line installation
• Easy open and close without tools
• Fiber cable mid-span and branching functionality
• 16 SC/APC adaptors included
• Supports the output of 16 drop cables
• Size(mm, HxWxD): 175x285x127
• IP65
• 2 Big cable entrance ports (Ø8mm～Ø20mm)
• 2 Small cable entrance ports (Ø5mm～Ø16mm)
• Compatible with ADSS, Mini ADSS, and Mini Figure 8* fiber

*It is recommended to add more sealing mud in the cable entrance port when used with Mini Figure 8 fiber (OC-FIG8-06C, OC-FIG8-12C)

Includes:

• 1 Protection tube for naked fiber (2 m)
• 1 PVC tape
• 1 Spiral hose (1 m)
• 16 Cable tie (3*120 mm)
• 12 Heat-shrinkable protection sleeve (60 mm)
• 1 Cleaning paper towels
• 1 Instruction Manual
• 2 Small Hose clamps (Ø10 - Ø16 mm)
• 2 Big Hose clamps (Ø16 - Ø25 mm)
• 1 Set of Hanging pendant
• 4 Waterproof mortar
