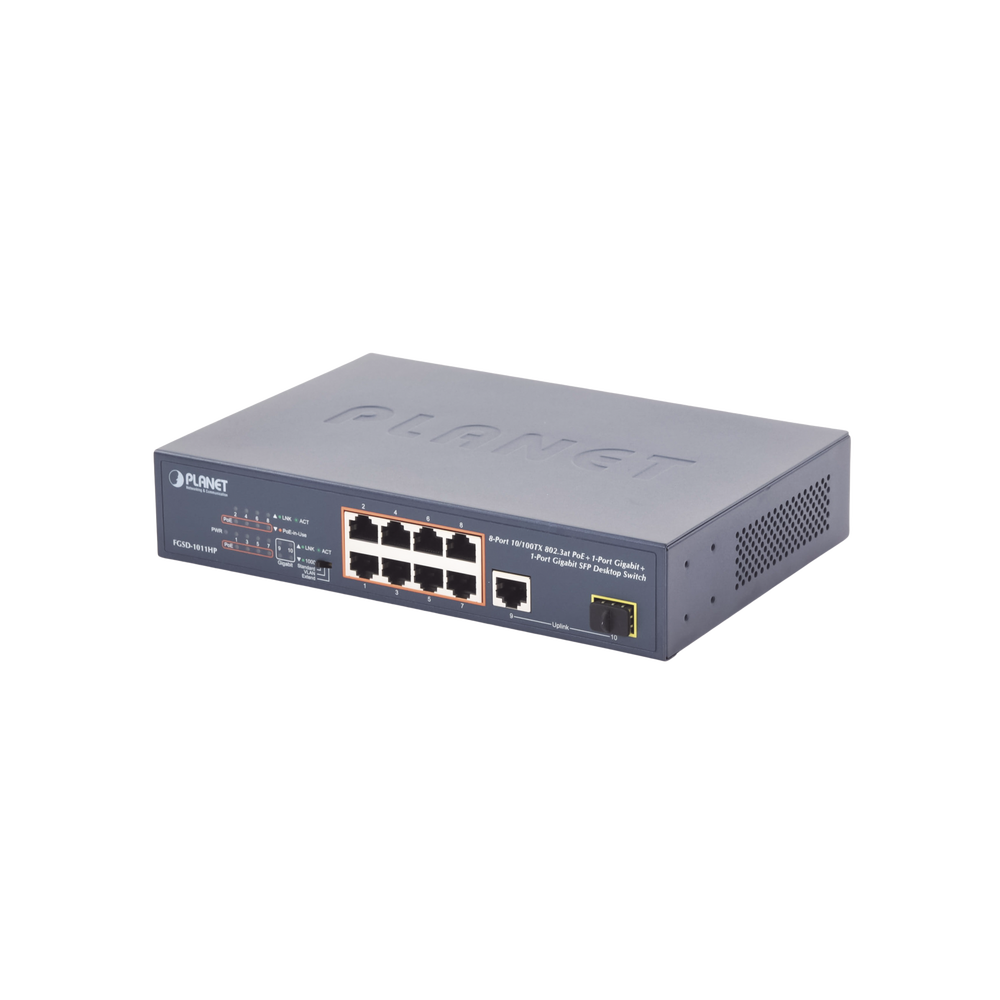

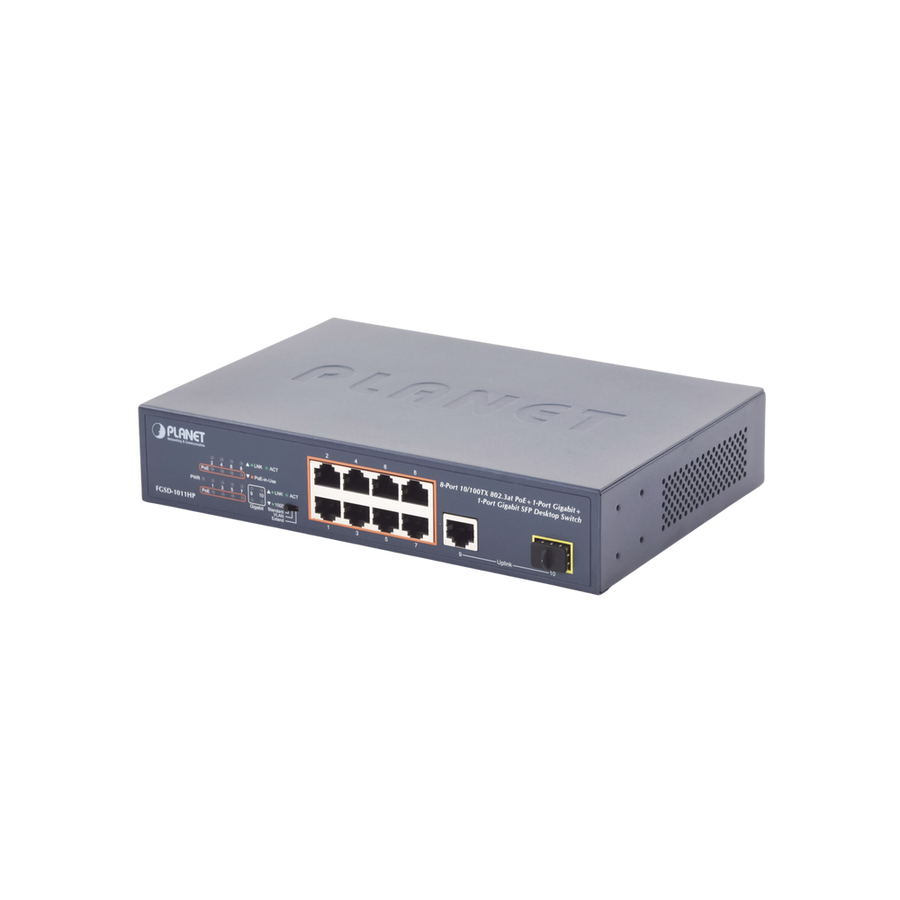

Planet FGSD-1011HP 8-Port Fast Ethernet PoE Switch 120W 802.3af/at

The FGSD-1011HP, a new PLANET 802.3at PoE Fast Ethernet Switch family member, provides 8-port 10/100Mbps 802.3af/at Power over Ethernet, 1 Gigabit port, and 1 Gigabit SFP port with a total of 120 watts of PoE budget. Its power budget is more than enough for any network application with Fast Ethernet speed transmission. The eight 802.3af/at PoE ports feature PoE power injector function, which can drive 8 IEEE 802.3at compliant powered devices. The FGSD-1011HP also offers a simple, cost-effective, and non-blocking wire-speed performance. It has a 9-inch compact metal housing, suitable for desktop deployment in SOHO office or department network applications.

Physical Ports

• 8 ports 10/100Mbps Fast Ethernet
• 1 port 10/100/1000BASE-T Gigabit Ethernet
• 1 interface 1000BASE-X mini-GBIC SFP

PoE (Power over Ethernet)

• Complies with IEEE 802.3af/at PoE (Power over Ethernet) end-span
• Up to 8 devices powered IEEE 802.3af/ IEEE 802.3at
• Supports PoE powers up to 30 watts per PoE port
• 120-watt PoE budget

Key Features

• 120W Total PoE Budget for Powering Multiple Devices
• 8 PoE Ports With up to 30W per Port 802.3af/at Support
• Gigabit Ethernet Uplink Port for High-Speed Backbone Connection
• 1000Base-X SFP Interface for Fiber Optic Network Expansion
• Compact 9-Inch Metal Housing for Desktop Office Deployment
• Non-Blocking Wire-Speed Performance for Fast Ethernet Applications
