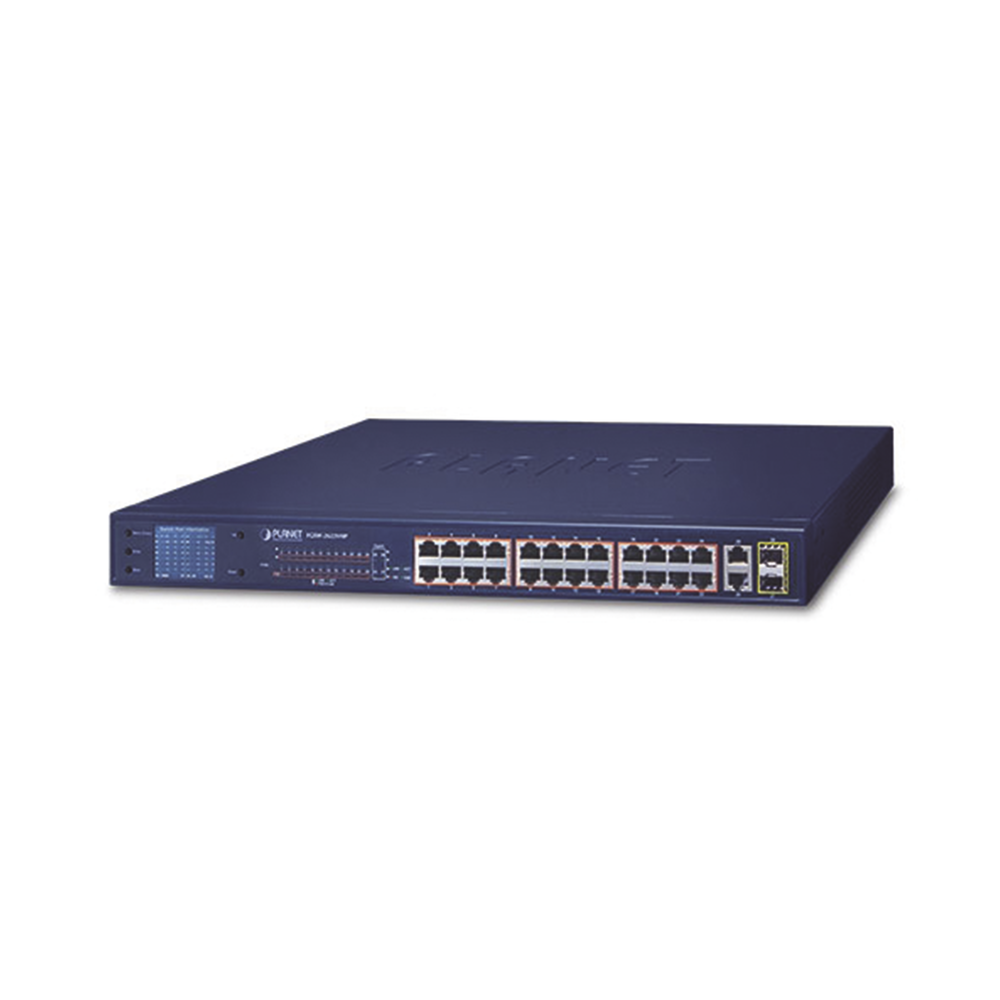

Planet FGSW-2622VHP 24-Port 10/100TX 802.3at PoE + 2 Port Gigabit TP/SFP Combo Ethernet Switch

PLANET

Planet FGSW-2622VHP 24-Port PoE+ 802.3at Switch 2-Port Gigabit SFP

Product identifier
SKU FGSW-2622VHP
$371.04
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Smart and Intuitive LCD Control

  • PoE management and status
  • Port management and status
  • Switch mode: Standard, VLAN, and Extend
  • Budget and bandwidth control
  • PD alive check
  • Maintenance: Screen saver, fan control, factory default and save the configuration

Extend mode

Operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters, overcoming the 100m limit on Ethernet UTP cable.

VLAN Isolation Mode

The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.
Hardware Specifications
802.3af/802.3at PoE injector Port 24
10/100BASE-TX MDI/MDIX Ports 24
10/100/1000BASE-T MDI/MDIX Ports 2
1000BASE-X SFP/mini-GBIC Slots 2
Dimensions 440 x 233 x 44 mm (height 1U)
Weight 3,4 kg
Power requirements 00~240 V CA, 50/60 Hz, 5 A max.
Consumption max. 330 watts/1132 BTU
Thermal fan 3
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End Span
PoE power output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Operating temperature Temperature: -10 ~ 60 degrees C
Relative humidity: 10 ~ 90 % (non-condensing)
Storage temperature Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 90 % (non-condensing)

Key Features

  • Extended Mode Supports 820 ft Distance at 10 Mbps Speed
  • Intuitive LCD Display for Real-Time PoE Status Monitoring
  • Port-Based VLAN Isolation Prevents Broadcast Storm Interference
  • Individual Port PoE Power Budget up to 30 Watts Maximum
  • 300W Total PoE Budget for Multiple High-Power Devices
  • Wide Operating Temperature Range From 14°F to 140°F
