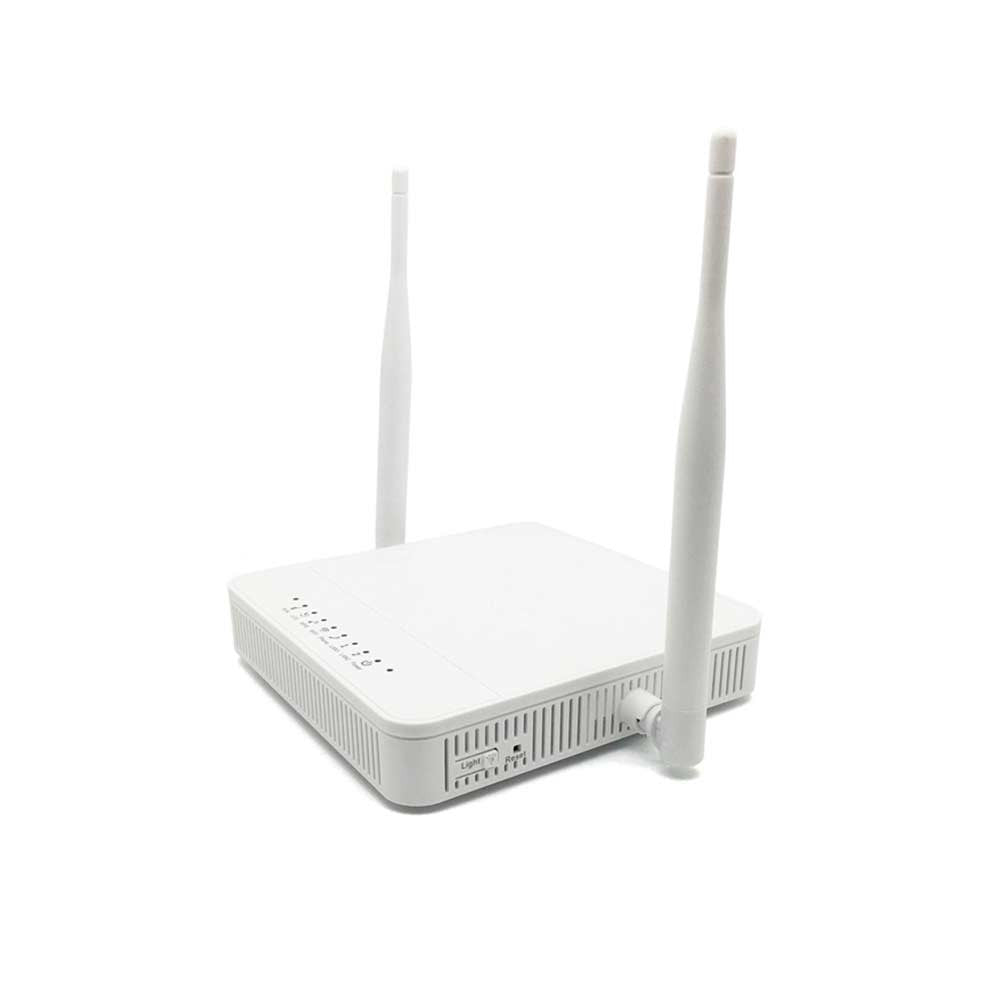

FiberHome AN5506-02-FG GPON Modem Router

PRODUCT TITLE

FiberHome AN5506-02-FG GPON Modem Router

PRODUCT OVERVIEW

The AN5506-02-FG is a GPON optical network unit with high performance and low power consumption. It is used in FTTH network to provide subscribers with Internet access, multicast and voice services and meet the demand for broadband access of family subscribers.

PRODUCT TYPE / CATEGORY

• Networking
• Routers/Switches

KEY FEATURES

• Uses GPON up-link that is compliant with ITU-T G.984 series of standards;
• Supports the configuration of Ethernet interface rates, working modes, MDI / MDIX auto-negotiation mode, and Pause flow control;
• Supports voice protocols including H.248 and SIP; and supports multiple voice encoding modes;
• Supports packet filtering and protection against illegal packets; suppresses unknown uni-cast, multicast and broadcast packets;
• Provides performance statistics on all Ethernet lines;
• Supports obtaining the user IP address in the DHCP mode, supports reporting the physical position information of Ethernet interfaces through DHCP Option82;
• Supports obtaining the user IP address in the PPPoE mode, supports the PPPoE+ function for accurate user identification;
• Supports IGMP snooping protocol;
• Supports L2 / L3 wire speed forwarding;
• Supports the NAT function;
• Supports the WEB configuration function;
• Supports the AES-128 algorithm for encryption of down-link data;
• Provides the QoS function; supports global configuration of queue priority and flexible mapping of the 802.1p values for packet priority.
• Supports the PQ, WRR and PQ+WRR queue scheduling modes. Users can configure the weight of scheduling queue to ensure the quality of the services with high QoS requirements, such as video services under multiple service conditions;
• Supports wireless access mode, compliant with the IEEE 802.11 b/g/n standard;
• Supports the following authentication modes: OPEN, SHARED, WPA-PSK, WPA2-PSK and WPA-PSK/WPA2-PSK; supports the following encryption modes: NONE, WEP, TKIP, AES and TKIP/AES.
• Application: FTTH FTTB FTTX Network

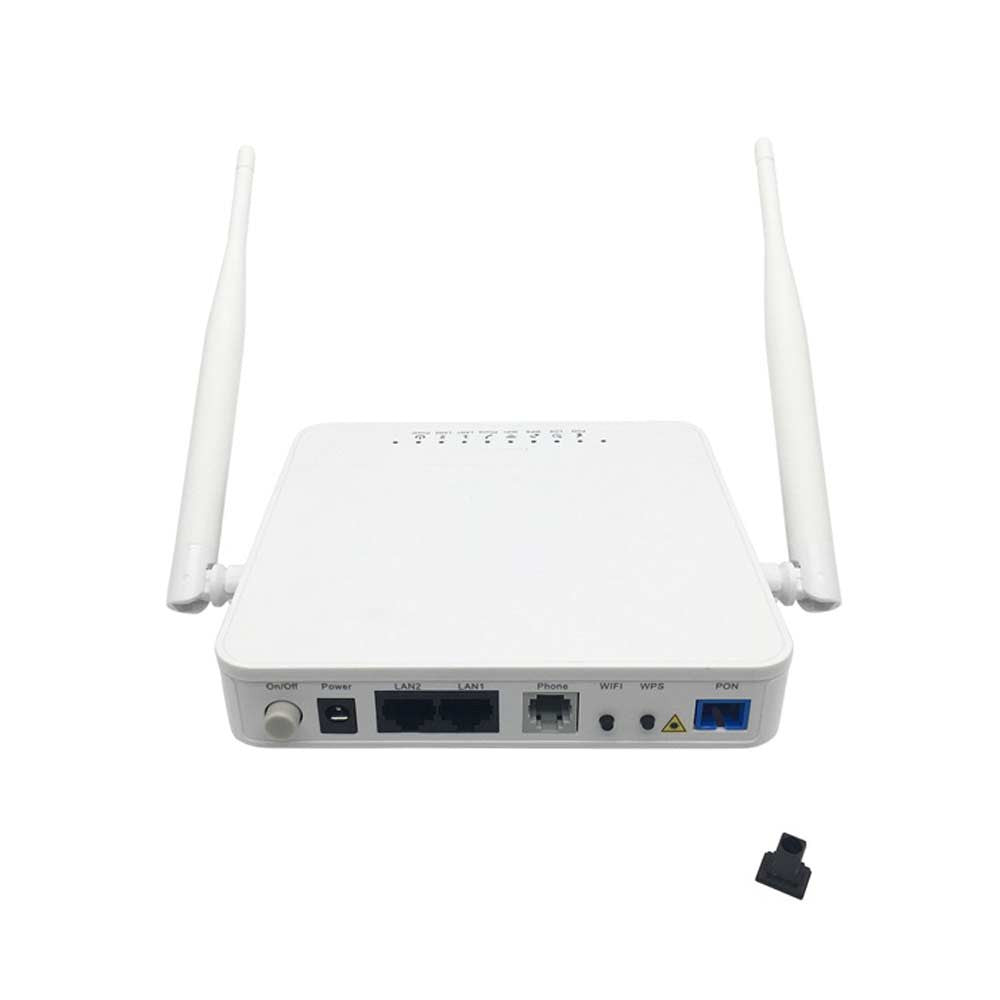

• Ports: GPON,1GE+1FE+1TEL+WIFI

TECHNICAL SPECIFICATIONS

• Brand: FiberHome
• Model: AN5506-02FG
• Product Type: Routers/Switches
• Uses GPON up-link that is compliant with ITU-T G.984 series of standards;
• Supports the configuration of Ethernet interface rates, working modes, MDI / MDIX auto-negotiation mode, and Pause flow control;
• Supports voice protocols including H.248 and SIP; and supports multiple voice encoding modes;
• Supports packet filtering and protection against illegal packets; suppresses unknown uni-cast, multicast and broadcast packets;
• Provides performance statistics on all Ethernet lines;
• Supports obtaining the user IP address in the DHCP mode, supports reporting the physical position information of Ethernet interfaces through DHCP Option82;
• Supports obtaining the user IP address in the PPPoE mode, supports the PPPoE+ function for accurate user identification;
• Supports IGMP snooping protocol;
• Supports L2 / L3 wire speed forwarding;
• Supports the NAT function;
• Supports the WEB configuration function;
• Supports the AES-128 algorithm for encryption of down-link data;
• Provides the QoS function; supports global configuration of queue priority and flexible mapping of the 802.1p values for packet priority.
• Supports the PQ, WRR and PQ+WRR queue scheduling modes. Users can configure the weight of scheduling queue to ensure the quality of the services with high QoS requirements, such as video services under multiple service conditions;
• Supports wireless access mode, compliant with the IEEE 802.11 b/g/n standard;
• Supports the following authentication modes: OPEN, SHARED, WPA-PSK, WPA2-PSK and WPA-PSK/WPA2-PSK; supports the following encryption modes: NONE, WEP, TKIP, AES and TKIP/AES.
• Application: FTTH FTTB FTTX Network
• Ports: GPON,1GE+1FE+1TEL+WIFI
• Wifi Performance (2.4 GHz): 144Mbps ( HT20) 300 Mbps ( HT40)
• Interface GPON: Standard: ITU- T G.984, Class B+.
• Interface Type: SC/ UPC
• Interface Ethernet Standard: IEEE 802.3ab / IEEE 802.3u
• Interface Type: Gigabit Ethernet + Fast Ethernet
• Wi-Fi Standard: IEEE 802.11 b/g/n
• Antenna: External antenna
• Quantity of Antennas: 2
• Antenna Gain: 5d Bi
• Power Adapter: 12V DC / 1 A
• Full Load Power Consumption: 4 Watts

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
