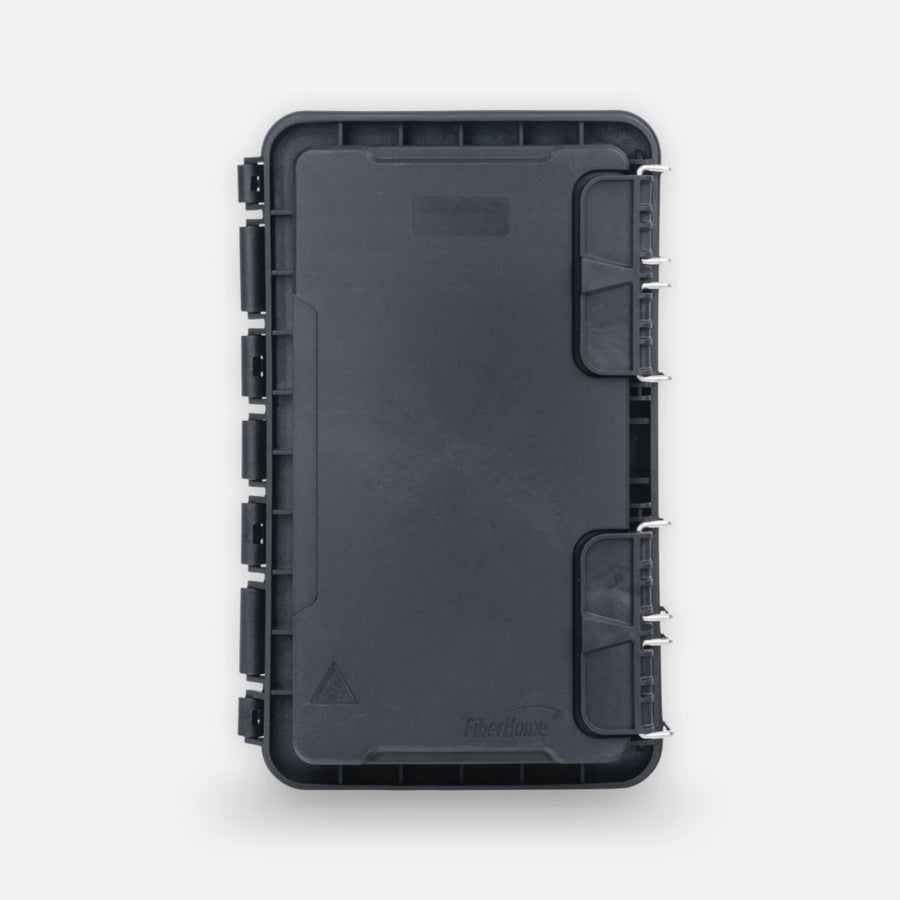

Fiberhome FDP-420F Fiber Distribution Box 96-Splice IP65 FTTH

PRODUCT OVERVIEW

FDP420F is a subscriber optical fiber access box that is used to build at the first layer in the FTTH networks. It is designed for in-line applications to provide a protected access point between the feeder cable the distribution cable. This product can keep internal components away from outdoor environmental damage. Its flexible configuration supports 2 cables in and 2 cables out. 900um pigtail type optical splitter could be built-in and provide a mid-span function. IP65 performance is useful in harsh environments. The FDP420F series is suitable for the application on LCP in the distributed split PON architecture​. Features

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• In-line application and easy to installation
• Outdoor application and good UV resistant
• Numerous splice applications as mid-span, branch or direct splice
• Support micro-splitter with splicing type
• High strength material with good weather-fastness (PP+GF), flame retardant
• Support ADSS cable and self-support fiber cable
• Protection grade: IP65
• Dimensions (mm): 175.5 x 285 x 92
• 2 Big cable entrance ports (Ø8mm～Ø20mm)
• 2 Small cable entrance ports (Ø5mm～Ø16mm)
• Compatible with ADSS, Mini ADSS, and Mini Figure 8* fiber
• 1 Protection tube for naked fiber (4 m)
• 1 PVC tape
• 1 Spiral hose (2 m)
• 32 Cable tie (3*120 mm)
• 96 Heat shrinkable protection sleeve (60 mm)
• 1 Cleaning paper towels
• 1 Instruction Manual

TECHNICAL SPECIFICATIONS

• Brand: Fiberhome
• Model: FDP-420F
• Product Type: Wireless Access Points
• In-line application and easy to installation
• Outdoor application and good UV resistant
• Numerous splice applications as mid-span, branch or direct splice
• Support micro-splitter with splicing type
• High strength material with good weather-fastness (PP+GF), flame retardant
• Support ADSS cable and self-support fiber cable
• Protection grade: IP65
• Dimensions (mm): 175.5 x 285 x 92
• 2 Big cable entrance ports (Ø8mm～Ø20mm)
• 2 Small cable entrance ports (Ø5mm～Ø16mm)
• Compatible with ADSS, Mini ADSS, and Mini Figure 8* fiber
• 1 Protection tube for naked fiber (4 m)
• 1 PVC tape
• 1 Spiral hose (2 m)
• 32 Cable tie (3*120 mm)
• 96 Heat shrinkable protection sleeve (60 mm)
• 1 Cleaning paper towels
• 1 Instruction Manual
• 2 Small Hose clamps (Ø10 - Ø16 mm)
• 2 Big Hose clamps (Ø16 - Ø25 mm)
• 1 Set of Hanging Cable pendant
• 1 Set of Hanging Line pendant
• 4 Waterproof mortar

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
